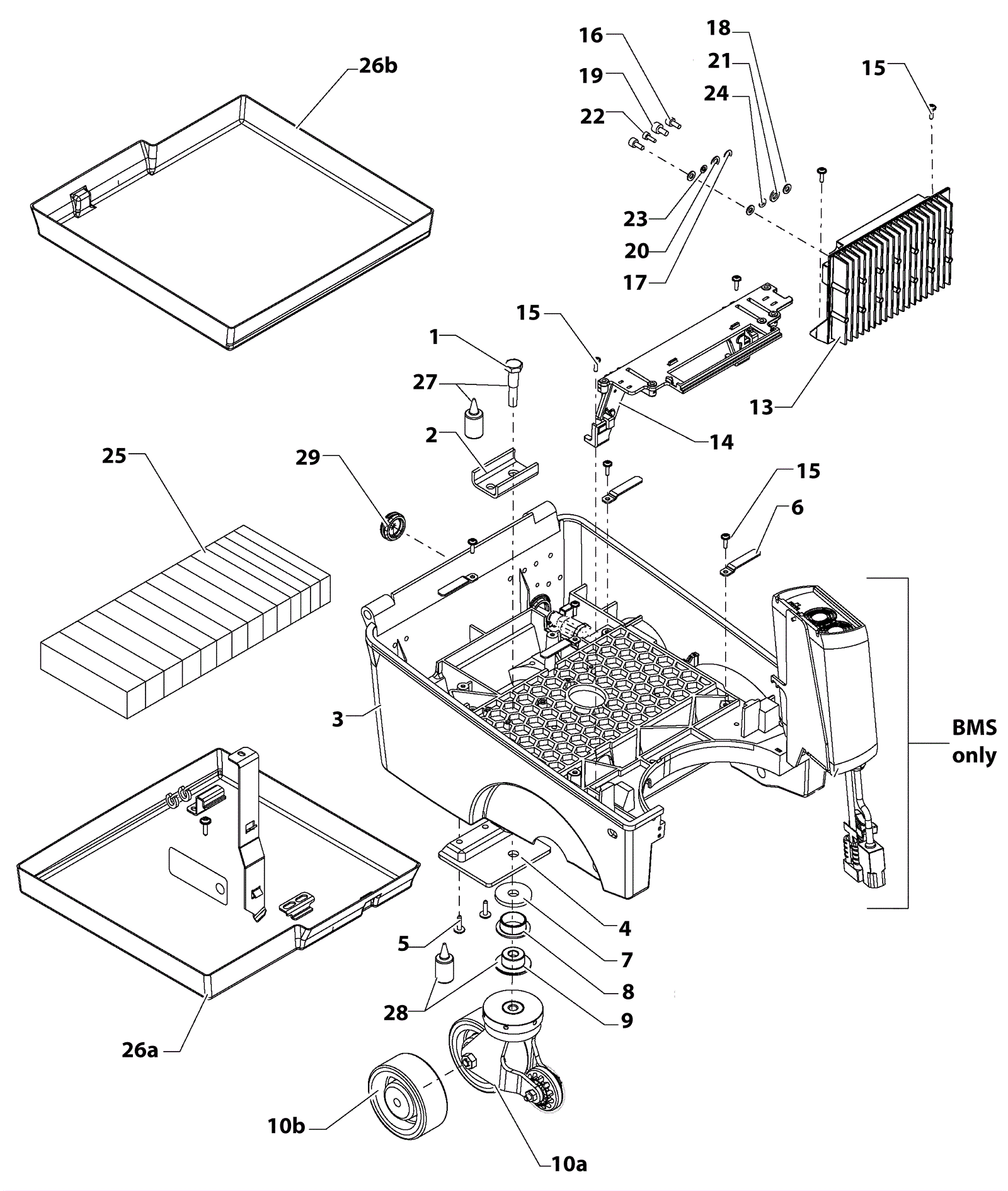

Swingo 955B Lower Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-4218 Screw M12 x 30mm hex head Call for price 1 usually ships 18-25 days
2 192-1517 Reinforcement plate Call for price 1 usually ships 18-25 days
3 192-1518 Chassis Call for price 1 usually ships 18-25 days
4 192-9529 Bracket Call for price 1 usually ships 18-25 days
5 192-1561 Screw 60 x 20 torx head Call for price 2 usually ships 18-25 days
6 192-2791 Clamp Call for price 4 usually ships 1-5 days
7 192-7394 Washer M13 Call for price 1 usually ships 18-25 days
8 192-9507 Slide bearing Call for price 1 usually ships 18-25 days
9 192-9530 Bushing Call for price 1 usually ships 18-25 days
10a 192-9000 Caster wheel assembly (rust) Call for price 1 usually ships 18-25 days
10b 292-8621 Wheel Call for price 1 (optional) usually ships 18-25 days
13 292-9911 Power electronics with wiring harness Call for price 1 usually ships 1-5 days
14 192-9309 Electronic support bracket Call for price 1 usually ships 18-25 days
15 192-1571 Screw M50 x 16mm Call for price 8 usually ships 18-25 days
16 192-0407 Screw M5 x 10mm socket head cap Call for price 2 (4 Nm torque) usually ships 18-25 days
17 192-1537 Washer M5 serrated lock Call for price 2 usually ships 18-25 days
18 192-0880 Washer M5 Call for price 2 usually ships 18-25 days
19 192-0289 Screw M6 x 10mm socket head Call for price 1 (7 Nm torque) usually ships 18-25 days
20 192-0179 Washer M6 serrated lock Call for price 1 usually ships 18-25 days
21 192-0200 Washer M6 Call for price 1 usually ships 18-25 days
22 192-0425 Screw M4 x 10mm socket head cap Call for price 1 (2.5 Nm torque) usually ships 18-25 days
23 999-0315 Washer #8 external star lock zinc plated Call for price 1 usually ships 11-14 days
24 192-1195 Washer M4 Call for price 1 usually ships 1-5 days
25 192-9238 Spacer set Call for price 1 usually ships 18-25 days
26a 192-9533 Wet battery tray kit Call for price 1 usually ships 1-5 days
26b 192-7167 Battery tray Call for price 1 (optional) usually ships 18-25 days
27 292-8528 .5ml capsule loctite medium strength thread lock (red) Call for price 1 usually ships 11-14 days
28 192-1872 Grease Call for price 1 usually ships 22-23 days
29 292-5561 Membrane Call for price 1 usually ships 18-25 days
