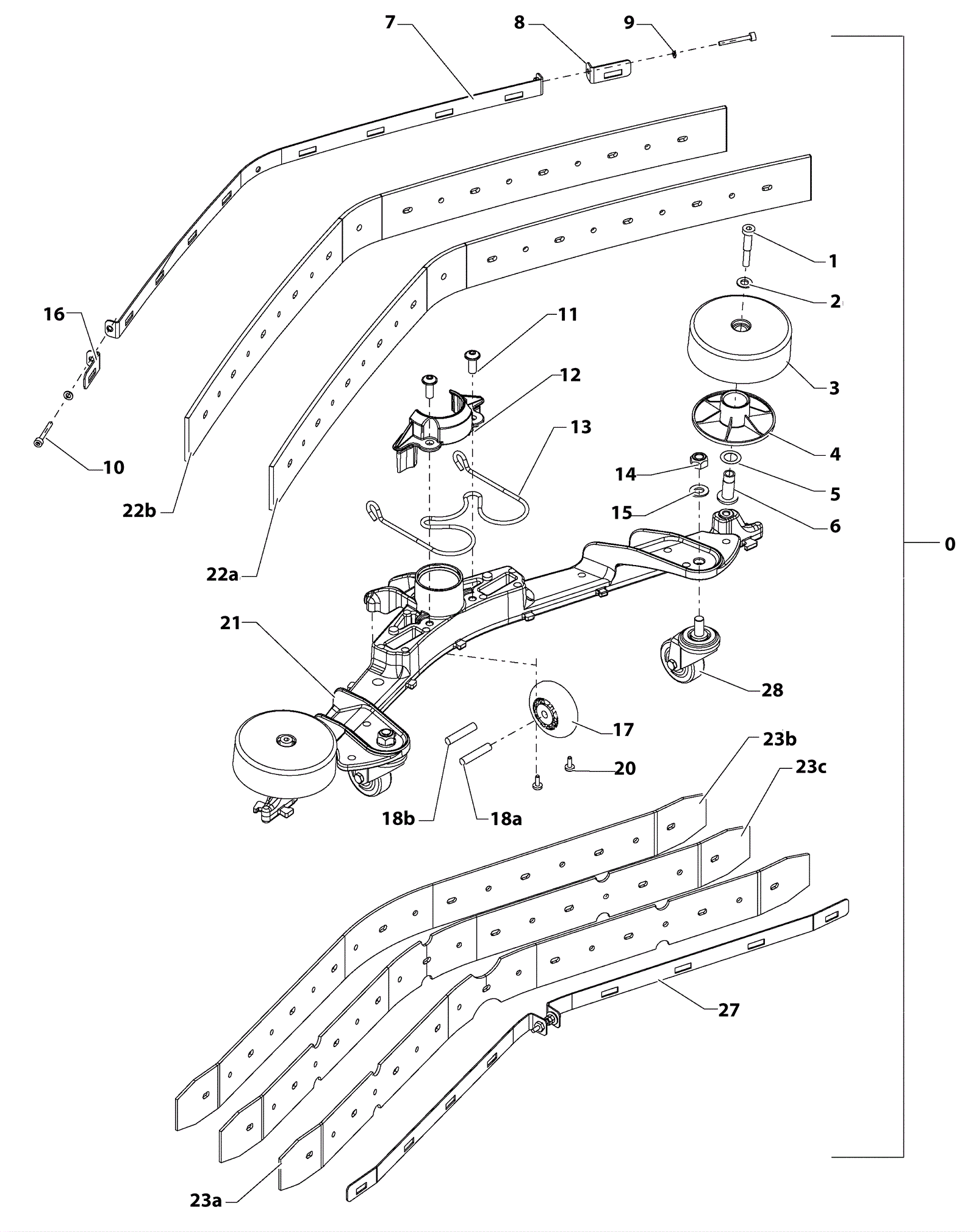

Swingo 955B Squeegee Assembly Before SN 56428

#PartDescriptionPriceReqNotesAvailability
0 192-9558 Squeegee assembly Call for price 1 (includes 1-28) usually ships 18-25 days
1 192-0104 Screw M8 x 45mm socket head cap Call for price 2 usually ships 18-25 days
2 192-0105 Washer M8 Call for price 2 usually ships 18-25 days
3 192-1397 Guide wheel Call for price 2 usually ships 18-25 days
4 192-0108 Retaining disc Call for price 2 usually ships 18-25 days
5 192-1344 Wave washer Call for price 2 usually ships 18-25 days
6 192-1354 Bushing Call for price 2 usually ships 18-25 days
7 192-9559 Long rear squeegee strap Call for price 1 usually ships 18-25 days
8 192-9514 Left rear squeegee strap Call for price 1 usually ships 18-25 days
9 192-0206 Washer M5 Call for price 2 usually ships 18-25 days
10 192-1003 Screw M5 x 35mm raised cheese head torx Call for price 2 usually ships 18-25 days
11 192-1524 Screw M8 x 20mm flange socket head Call for price 2 usually ships 18-25 days
12 192-9515 Cover Call for price 1 usually ships 18-25 days
13 192-9516 Click spring Call for price 1 usually ships 18-25 days
14 192-6339 Nut M10 self locking Call for price 2 usually ships 17-21 days
15 192-0496 Washer M10 Call for price 2 usually ships 18-25 days
16 192-9517 Rear right squeegee strap Call for price 1 usually ships 18-25 days
17 192-8746 Wheel 2.5 x 1 inch Call for price 1 usually ships 18-25 days
18a 192-9215 Axle Call for price 1 usually ships 18-25 days
18b 292-8609 Bolt M8 x 10mm Call for price 1 (optional) usually ships 18-25 days
20 192-0101 Screw M5 x 12mm self tapping form Call for price 2 usually ships 18-25 days
21 192-9560 Squeegee weldment Call for price 1 usually ships 18-25 days
22a 192-1484 Squeegee blade 33 3/4 inch rear Call for price 1 usually ships 18-25 days
22b 292-8032 Squeegee blade Call for price 1 (optional) usually ships 18-25 days
23a 192-1483 Squeegee blade 32 1/4 inch front Call for price 1 usually ships 18-25 days
23b 192-9563 Squeegee blade front Call for price 1 (optional) usually ships 18-25 days
23c 292-8031 Squeegee blade Call for price 1 (optional) usually ships 18-25 days
27 192-9561 Front squeegee strap Call for price 1 usually ships 18-25 days
28 192-9520 Caster wheel Call for price 2 usually ships 18-25 days
