| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
192-5014
|

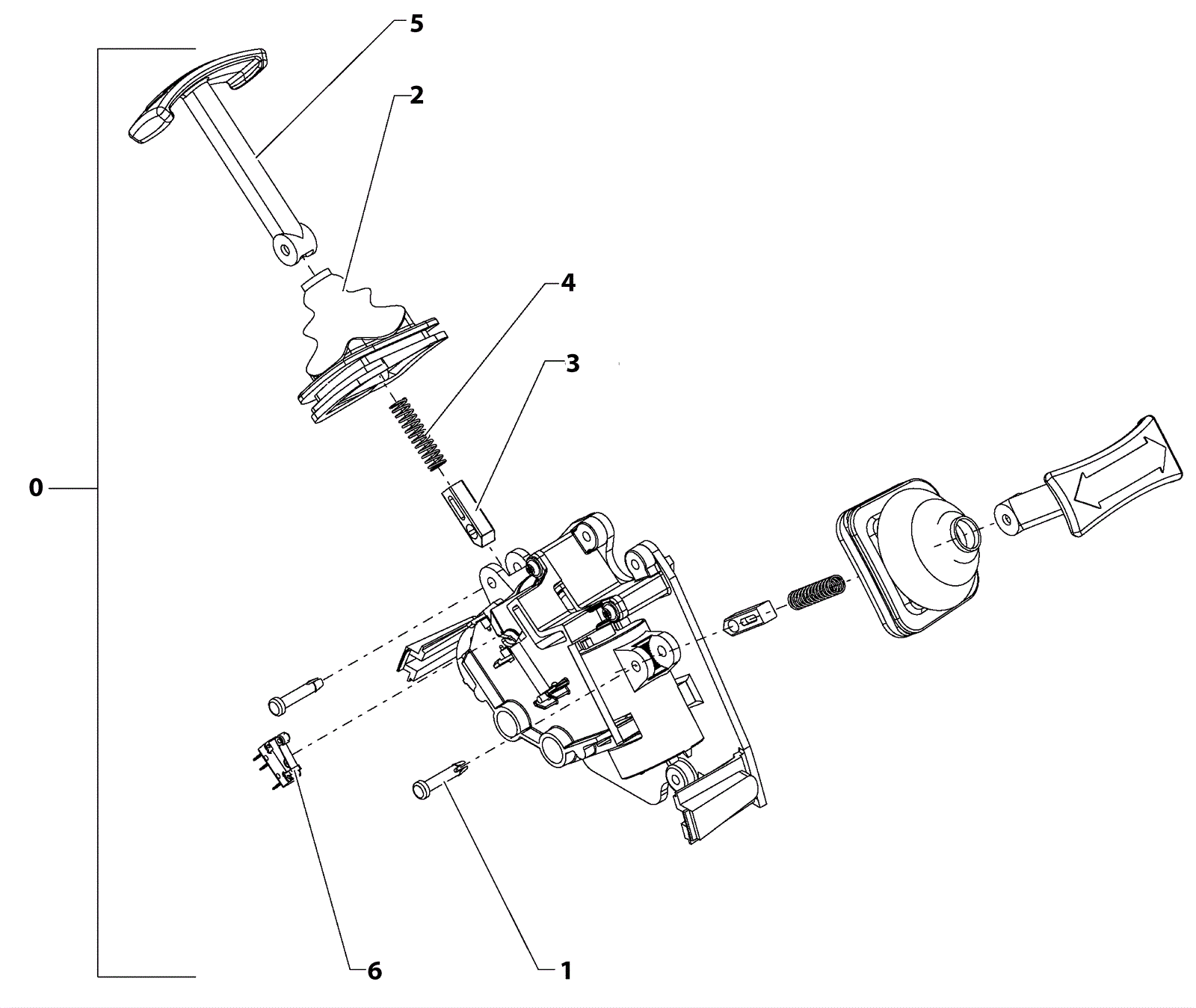

Mechanic hall sensor assembly |
1 |
(includes 1-6) |
usually ships 18-25 days |
1 |
192-1582
|
Bolt |
2 |
|
usually ships 18-25 days |
2 |
192-1977
|
Bellows |
2 |
|
usually ships 18-25 days |
3 |
192-1584
|
Grid lever |
2 |
|
usually ships 18-25 days |
4 |
192-1585
|
Pressure spring |
2 |
|
usually ships 18-25 days |
5 |
192-6954
|
Switch lever |
2 |
|
usually ships 18-25 days |
6 |
192-8721
|
Microswitch |
1 |
|
usually ships 18-25 days |
