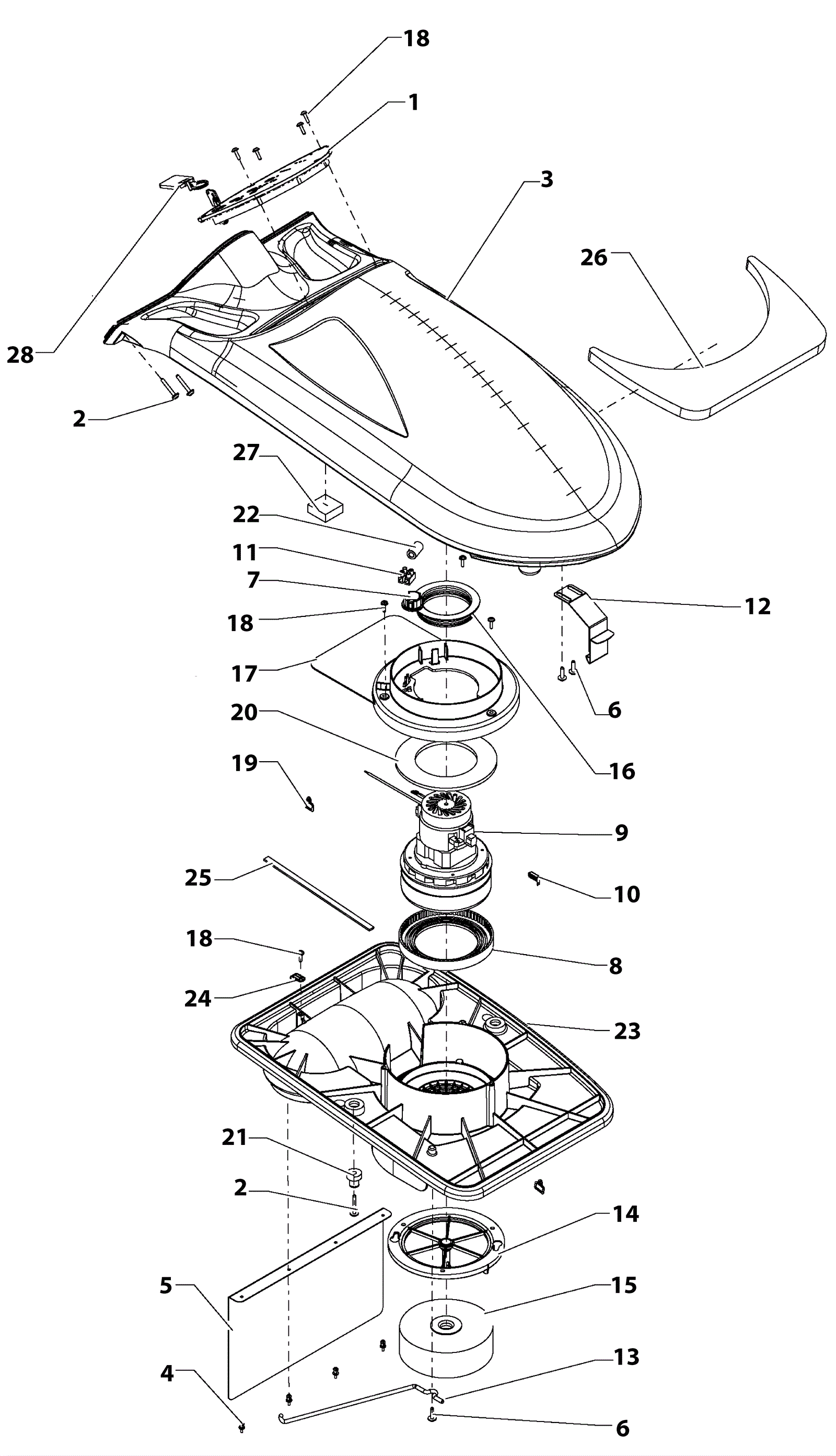

Swingo 955B Upper Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-9499 Electronic dashboard assembly (power) Call for price 1 usually ships 18-25 days
2 192-1557 Screw 60 x 35 torx head Call for price 6 usually ships 18-25 days
3 192-9501 Tank cover Call for price 1 usually ships 18-25 days
4 192-1559 Retaining rivet Call for price 4 usually ships 18-25 days
5 192-8942 Protection shield Call for price 1 usually ships 18-25 days
6 192-1561 Screw 60 x 20 torx head Call for price 3 usually ships 18-25 days
7 192-8948 Bushing Call for price 1 usually ships 18-25 days
8 192-1562 Guide ring Call for price 1 usually ships 18-25 days
9 192-0770 24V 2 stage vacuum motor Call for price 1 usually ships 1-5 days
10 192-0771 Carbon brush plastic (black) (clip in) Call for price 1 usually ships 18-25 days
11 192-0260 2-way connection block Call for price 1 usually ships 18-25 days
12 192-4812 Locking lever Call for price 1 usually ships 18-25 days
13 192-9502 Prop rod Call for price 1 usually ships 18-25 days
14 192-3617 Filter Call for price 1 usually ships 18-25 days
15 192-1490 Float Call for price 1 usually ships 18-25 days
16 192-1569 Sealing ring Call for price 1 usually ships 18-25 days
17 192-1570 Protection plate Call for price 1 usually ships 18-25 days
18 192-1571 Screw M50 x 16mm Call for price 9 usually ships 18-25 days
19 192-6334 Sealing profile (sold by the inch) Call for price 67 in usually ships 18-25 days
20 192-1573 Gasket Call for price 1 usually ships 18-25 days
21 192-1575 Buffer Call for price 2 usually ships 18-25 days
22 192-0732 Ferrite bushing Call for price 1 usually ships 18-25 days
23 192-1564 Base plate Call for price 1 usually ships 18-25 days
24 192-2501 P clamp Call for price 1 usually ships 18-25 days
25 192-6310 Seal strip (sold by the inch) Call for price 55 in usually ships 18-25 days
26 192-1591 Noise absorbing plate Call for price 1 usually ships 18-25 days
27 292-8608 Gasket Call for price 1 usually ships 18-25 days
28 192-4662 Key ring Call for price 1 usually ships 18-25 days
