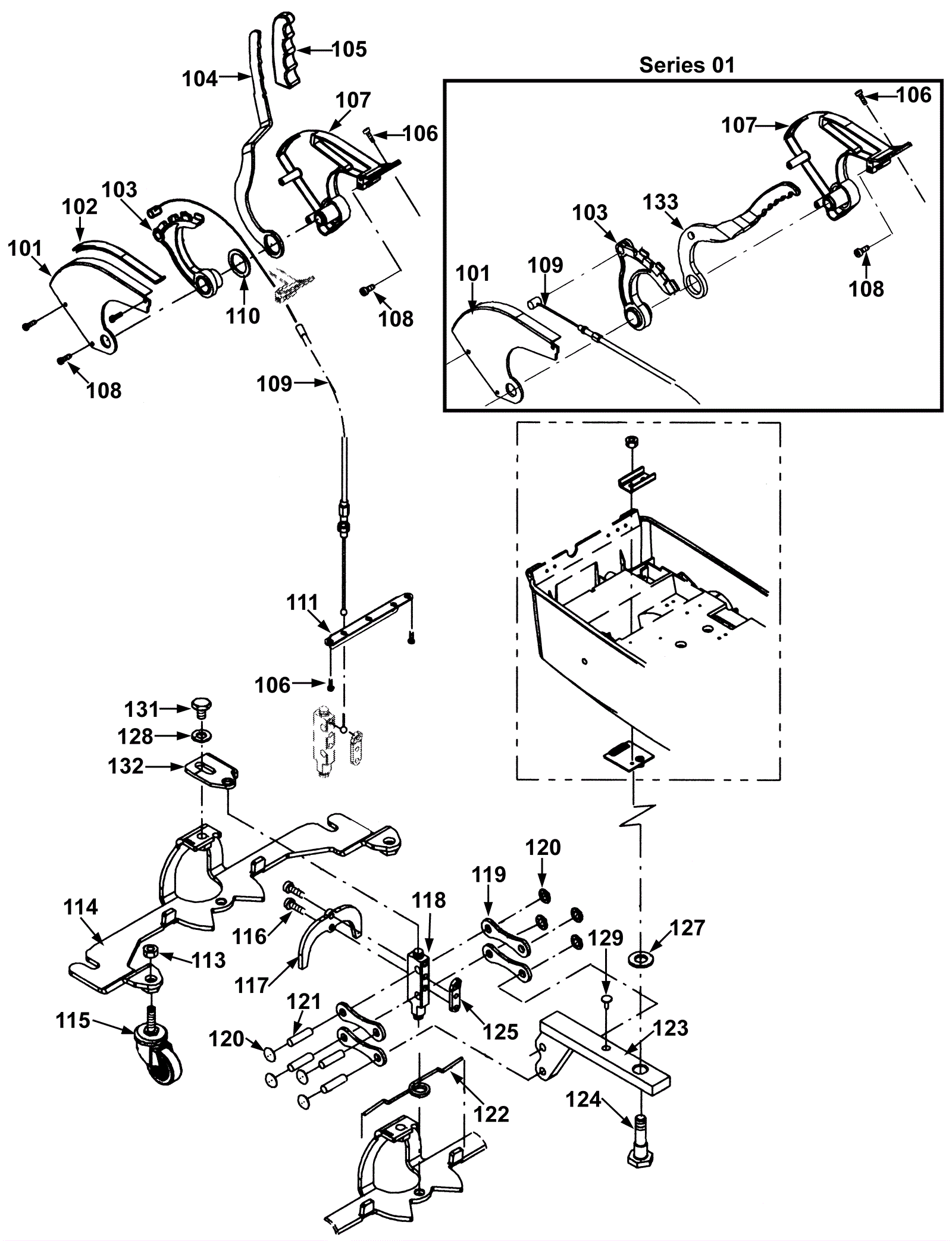

SWINGO 1250B Squeegee Lowering Assembly - Series 1 and Series 2 - Before 01.2006

#PartDescriptionPriceReqNotesAvailability
101 192-3079 Cover $18.32 1 ships same day
102 192-6316 Gasket $8.87 1 usually ships 24-40 days
103 192-2164 Bracket (OBSOLETE) $17.73 1 usually ships 24-40 days
104 192-4789 Squeegee lever (OBSOLETE) $44.88 1 usually ships 24-40 days
105 192-4129 Handle $16.36 1 ships same day
106 192-1561 Screw 60 x 20 torx head $2.44 3 ships same day
107 192-4489 Housing $31.45 1 usually ships 24-40 days
108 192-1595 Screw M40 x 16mm torx head $2.44 4 ships same day
109 192-1469 Bowden cable $50.62 1 usually ships 24-40 days
110 192-3336 Spacer disc $2.44 1 usually ships 24-40 days
111 192-2487 Bracket $13.77 1 usually ships 24-40 days
113 192-1135 Nut M10 hex $2.44 2 ships same day
114 192-6650 Mounting bracket (OBSOLETE) $147.26 1 usually ships 24-40 days
115a 292-8548 Caster wheel $43.59 2 ships same day
115b 292-8548 Caster wheel $43.59 2 ships same day
117 192-1463 Gripper fork (OBSOLETE) $44.76 1 usually ships 24-40 days
118 192-1464 Axle $29.74 1 usually ships 24-40 days
119 192-1712 Bracket (OBSOLETE) $5.62 4 usually ships 24-40 days
120 192-2779 Snap ring $4.47 8 (used to be a washer star cap which became obsolete - these snap rings are used with the 192-1766 axle) ships same day
121 192-1766 Axle $5.32 4 ships same day
122 192-1460 Spring $3.41 1 ships same day
123 192-6851 Bracket $177.97 1 usually ships 24-40 days
124 192-6547 Special screw (OBSOLETE) $22.63 1 usually ships 1-5 days
125 192-4249 Rope clamp $2.44 1 ships same day
126a 192-4193 Nut M10 tensilock hex (OBSOLETE) $2.20 1 (series 2) (before 01.2006) usually ships 1-5 days
126b 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (series 1) ships same day
127 192-7395 Washer (OBSOLETE) $6.28 1 usually ships 1-5 days
128 192-0496 Washer M10 $2.44 1 ships same day
129 192-6086 Rivet 7 $2.44 1 usually ships 24-40 days
131 192-1455 Screw M10 x 16mm hex head $4.22 1 ships same day
132 192-1456 Adjusting plate $15.09 1 ships same day
133 192-4788 Squeegee lever (OBSOLETE - REPLACED BY 192-4789 & 192-4129) $55.96 1 (series 1) usually ships 1-5 days
N/S 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.45 2 ships same day
