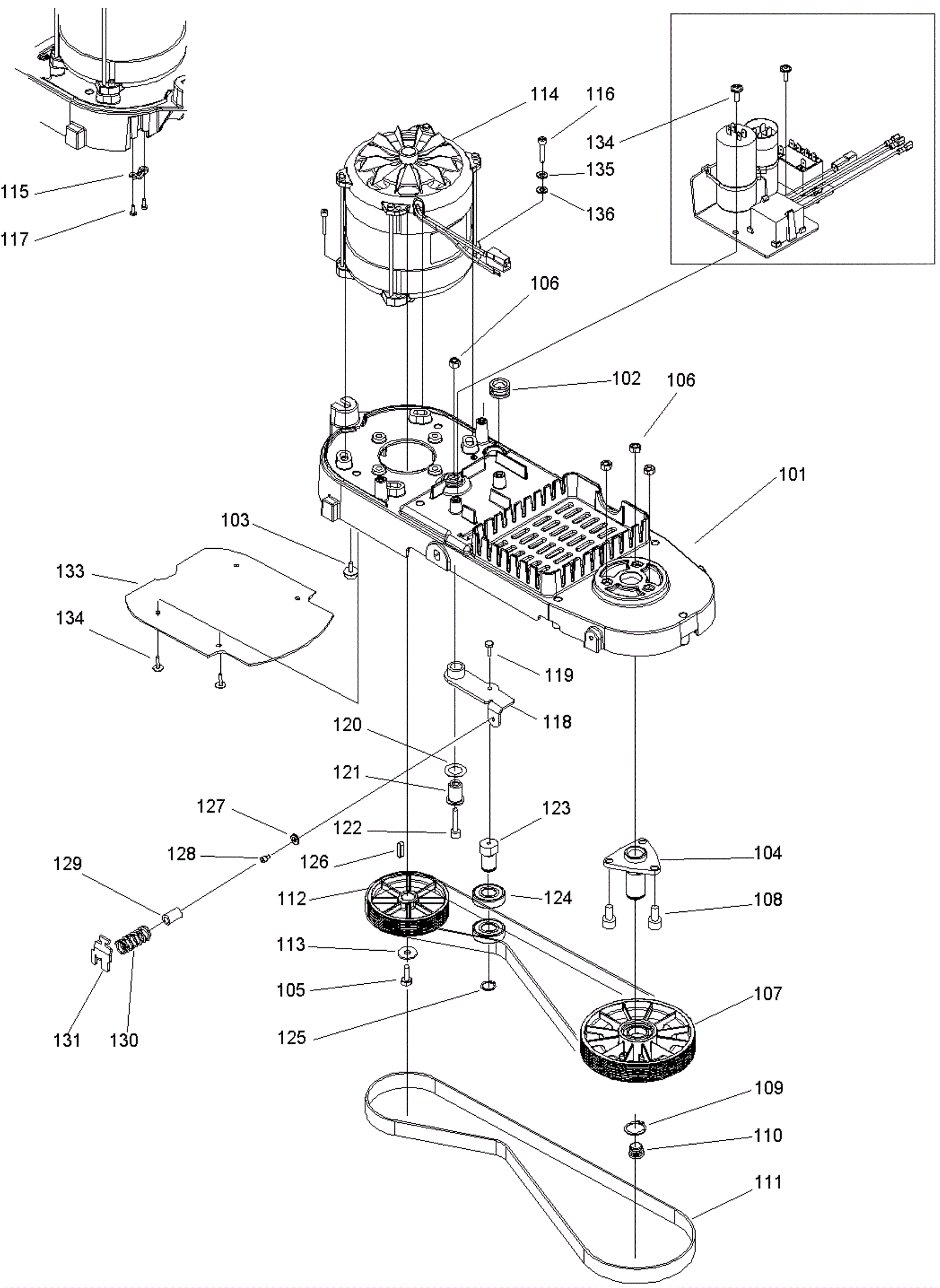

ERGODISC 2000 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-0214 Chassis $497.71 1 usually ships 30-75 days
102 192-0959 Grommet $6.42 1 usually ships 30-75 days
103 192-9204 Stop buffer $4.35 1 usually ships 1-5 days
104 192-0590 Pulley axle $12.69 1 ships same day
105 192-0243 Screw M8 x 20mm socket head $2.44 4 usually ships 30-75 days
106 192-0347 Nut M8 hex $0.89 4 ships same day
107 292-0215 Pulley $44.88 1 usually ships 30-75 days
108 192-0243 Screw M8 x 20mm socket head $2.44 3 usually ships 30-75 days
109 192-0503 Retaining ring $2.44 1 ships same day
110 192-9694 Stopple $2.44 1 ships same day
111a 292-0216 Poly v-belt $67.16 1 usually ships 30-75 days
111b 192-1307 Drive belt $55.56 1 usually ships 30-75 days
112a 292-0217 Pulley $61.78 1 usually ships 30-75 days
112b 292-5706 Pulley $57.27 1 ships same day
113 192-0604 Washer M8 $2.44 1 ships same day
114a 292-1025 240V motor Call for price 1 usually ships 30-75 days
114b 292-0218 120V motor $910.06 1 usually ships 30-75 days
115 192-2496 Cable clamp $2.44 1 usually ships 30-75 days
116 192-1405 Screw M6 x 35 socket head cap $3.78 4 usually ships 1-5 days
117 192-0912 Screw M4 x 16mm raised head $2.44 2 ships same day
118 292-0219 Lever $22.54 1 ships same day
119 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
120 192-3333 Spacer $2.44 1 usually ships 30-75 days
121 192-0602 Bushing $10.33 1 ships same day
122 192-0277 Screw M8 x 35mm socket head cap $0.89 1 ships same day
123 292-0220 Axle $26.86 1 ships same day
124 192-0143 Bearing $5.62 2 usually ships 30-75 days
125 192-0807 Retaining ring $2.44 1 ships same day
126 192-1150 Square keyway $2.44 1 usually ships 30-75 days
127 192-0067 Washer 4 x 17 x 3 $2.44 1 ships same day
128 192-0506 Screw M6 x 12mm socket head $2.44 1 usually ships 30-75 days
129 192-0599 Hose (sold by the inch) $9.03 2 in usually ships 30-75 days
130 292-0221 Pressure spring $2.44 1 usually ships 30-75 days
131 292-0222 Support $13.63 1 ships same day
133 292-0223 Cover $20.10 1 usually ships 1-5 days
134 292-0191 Screw M6 x 16mm socket head $4.28 6 usually ships 30-75 days
135 192-0200 Washer M6 $3.12 1 ships same day
136 192-0179 Washer M6 serrated lock $2.44 1 usually ships 30-75 days
137 192-0200 Washer M6 $3.12 1 ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
