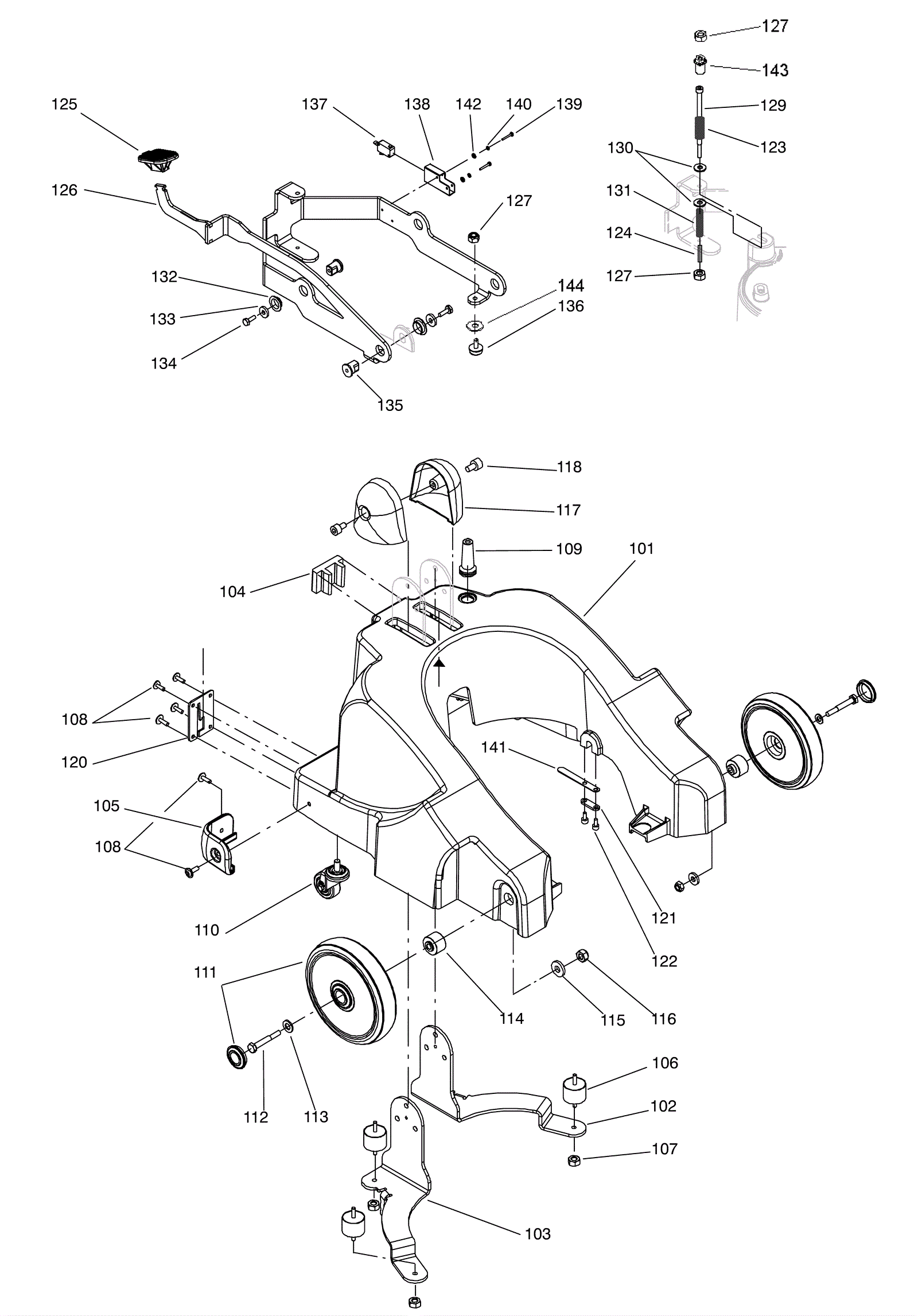

ERGODISC 2000 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-0186 Chassis $666.81 1 usually ships 30-75 days
102 292-0187 Fixation $28.77 1 usually ships 30-75 days
103 292-0188 Fixation $27.35 1 usually ships 30-75 days
104 292-0189 Bumper profile $10.87 1 usually ships 1-5 days
105 292-0190 Bumper profile $22.96 2 usually ships 1-5 days
106 192-0562 Buffer $17.09 4 usually ships 30-75 days
107 192-0563 Nut M6 self-locking $2.44 4 ships same day
108 292-0191 Screw M6 x 16mm socket head $4.28 8 usually ships 30-75 days
109 192-0550 Strain relief $2.44 1 ships same day
110 192-9801 Castor wheel $33.17 2 ships same day
111 192-8838 Wheel $62.51 2 usually ships 30-75 days
112 192-0865 Screw M10 x 70 hex head $2.44 2 usually ships 30-75 days
113 192-0496 Washer M10 $2.44 2 ships same day
114 192-8839 Bushing $13.13 2 usually ships 30-75 days
115 192-0619 Washer $4.71 2 ships same day
116 192-6339 Nut M10 self locking $2.44 2 ships same day
117 292-0192 Cover $4.47 2 usually ships 30-75 days
118 192-6485 Screw M5 x 8mm socket head cap $2.44 2 usually ships 30-75 days
120 292-0193 Guide bracket $3.66 1 usually ships 30-75 days
121 292-0194 Supporting plate $2.44 2 usually ships 1-5 days
122 292-0191 Screw M6 x 16mm socket head $4.28 4 usually ships 30-75 days
123 292-0195 Pressure spring $2.44 1 ships same day
124 192-4427 Solution hose (clear) (sold by the inch) $0.99 4 in usually ships 30-75 days
125 192-8903 Pedal pad $2.44 1 ships same day
126 292-0196 Pedal $163.74 1 usually ships 30-75 days
127 192-0563 Nut M6 self-locking $2.44 4 ships same day
129 292-0197 Screw $4.52 1 ships same day
130 192-7424 Washer 8.4/20 $2.44 2 usually ships 30-75 days
131 292-0198 Pressure spring $6.84 1 ships same day
132 192-9351 Grommet $2.44 4 ships same day
133 192-0067 Washer 4 x 17 x 3 $2.44 4 ships same day
134 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
135 292-0199 Bolt $19.78 4 usually ships 1-5 days
136 192-9204 Stop buffer $4.35 2 usually ships 1-5 days
137 192-0681 Microswitch $13.51 1 ships same day
138 292-0200 Cover $13.75 1 usually ships 1-5 days
139 292-0201 Screw M3 x 20mm $2.44 2 usually ships 1-5 days
140 192-6619 Spring washer $2.44 2 usually ships 1-5 days
141 292-0202 Shackle $5.25 1 ships same day
142 192-0674 Washer $2.44 2 usually ships 30-75 days
143 292-0858 Special bushing $3.00 1 usually ships 30-75 days
144 192-0109 Washer 8 mm $5.98 1 usually ships 30-75 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
