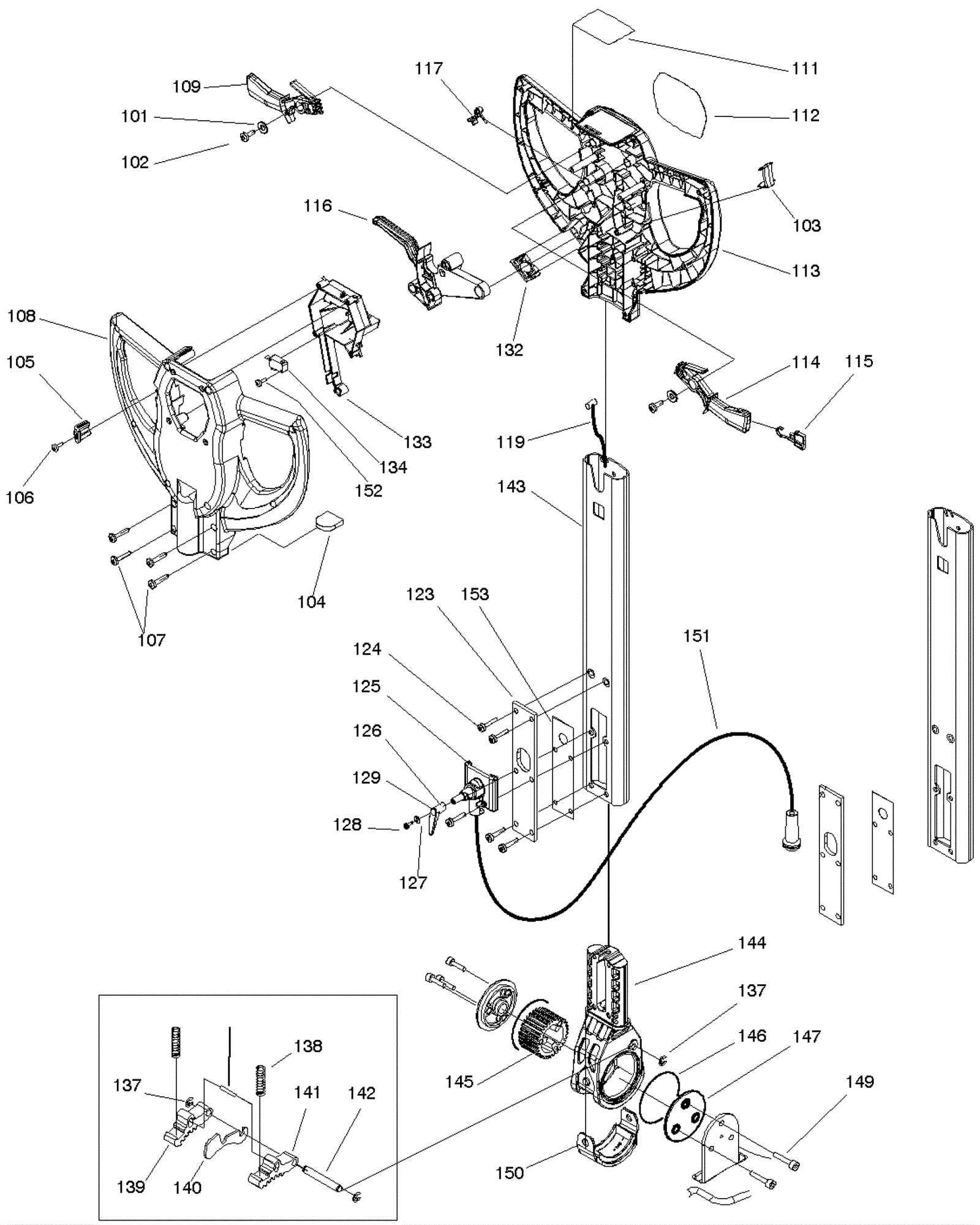

ERGODISC 2000 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0705 Washer $2.44 2 usually ships 24-40 days
102 192-9948 Screw KA 50 x 30 $2.44 2 ships same day
103 192-9949 Cover $2.44 1 ships same day
104 292-0177 Gasket $4.28 1 usually ships 1-5 days
105 192-8792 Cover $2.44 1 usually ships 24-40 days
106 192-6282 Screw KA 30 x 10 $3.54 1 ships same day
107 192-0539 Screw 50 x 20 $2.44 13 ships same day
108 192-8793 Rear handle $40.41 1 usually ships 24-40 days
109 192-0555 Push button $2.44 1 usually ships 24-40 days
111 292-0178 Decal $10.57 1 usually ships 1-5 days
112 292-0179 Decal $18.19 1 usually ships 1-5 days
113 192-8798 Front handle $40.41 1 ships same day
114 192-8799 Trigger lever $6.06 2 usually ships 24-40 days
115 192-8800 Push button $2.44 1 ships same day
116 192-9951 Lever $6.42 1 ships same day
117 192-8791 Locking lever $2.44 1 ships same day
119 292-0180 Bowden cable $113.14 1 usually ships 1-5 days
123 292-0181 Cover $11.11 1 usually ships 1-5 days
124 292-0182 Screw M6 x 20mm $4.15 6 usually ships 24-40 days
125 292-0183 Support $3.98 1 usually ships 24-40 days
126 192-0558 Cable hook $3.49 1 ships same day
127 192-0091 Washer $0.89 1 ships same day
128 192-0547 Screw KA 40 x 14 $2.44 1 ships same day
129 192-5680 Pressure spring $6.23 1 ships same day
132 192-3548 False cover $4.10 1 ships same day
133 292-0104 Cover $8.43 1 usually ships 24-40 days
134 192-0681 Microswitch $13.51 1 ships same day
137 192-0902 Snap ring $2.44 2 ships same day
138 192-9955 Pressure spring $5.37 2 ships same day
139 192-9956 Toothed rocker $16.61 1 ships same day
140 192-9957 Plate $2.44 1 usually ships 24-40 days
141 192-9958 Toothed rocker $16.61 1 ships same day
142 192-9959 Axle $6.35 1 ships same day
143 292-0184 Guide bar $81.07 1 usually ships 1-5 days
144 292-9454 Articulation $58.61 1 usually ships 24-40 days
145 192-9965 Toothed wheel $47.44 1 ships same day
146 192-8912 O-ring $2.44 2 ships same day
147 192-8810 Retaining plate $12.45 2 ships same day
149 192-0603 Screw hex $4.28 6 ships same day
150 192-9966 Cover $2.76 1 usually ships 24-40 days
151a 292-0185 Connecting cable $114.17 1 usually ships 24-40 days
151b 292-5703 Connecting cable $54.70 1 usually ships 24-40 days
152 192-0730 Screw KA 30 x 18 $2.44 1 usually ships 24-40 days
153 292-8603 Gasket $11.23 1 usually ships 24-40 days
N/S 192-1872 Grease $11.99 1 ships same day
N/S 192-0467 Lite thread lock compound $237.19 1 usually ships 1-5 days
