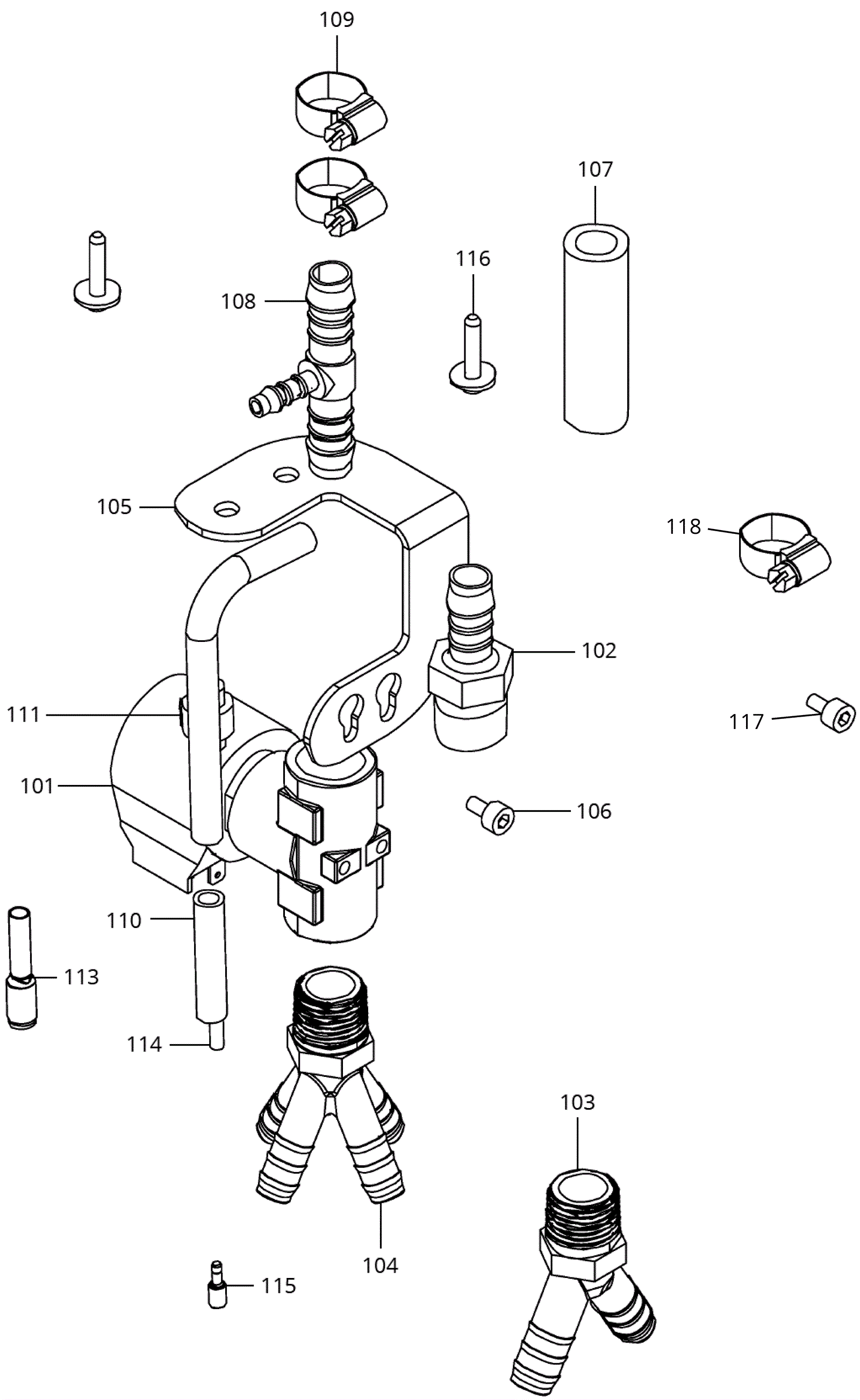

SWINGO 4000 Magnetic Valve Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-0958 24V magnetic valve $170.08 1 ships same day
102 192-0398 Male connector $2.87 1 ships same day
103 192-9823 Nipple $4.59 1 (4000) usually ships 30-75 days
104 192-3467 Nipple $132.43 1 (5000) usually ships 30-75 days
105 192-9822 Valve holder $12.77 1 usually ships 1-5 days
106 192-6485 Screw M5 x 8mm socket head cap $0.89 2 usually ships 30-75 days
107 192-0400 Wire reinforced hose (sold by the inch) $0.99 8 in ships same day
108 192-9542 T-nipple $7.91 1 ships same day
109 192-9210 Hose clamp $2.44 3 ships same day
110a 192-4344 Hose (sold by the inch) $3.74 8 in ships same day
110b 192-4344 Hose (sold by the inch) $3.74 4 in ships same day
111 192-1601 Check valve $27.42 1 ships same day
113 192-9824 Connector $15.53 1 usually ships 30-75 days
114 292-5581 Pipe (OBSOLETE) Call for price 58 in usually ships 1-5 days
115 292-0145 Plug $9.23 1 usually ships 30-75 days
116 192-1561 Screw 60 x 20 torx head $2.44 2 ships same day
117 292-1071 Screw M5 x 6 mm socket head cap Call for price 2 usually ships 30-75 days
118 192-0334 Hose clamp $3.26 3 ships same day
N/S 192-9825 Key assembly $45.38 1 (series 1 and series 2) ships same day
N/S 192-1592 Plastic key $2.44 1 (series 1 and series 2) ships same day
N/S 292-5254 Steel key $3.78 1 (series 1 and series 2) ships same day
N/S 192-8584 Screw 40 x 8 $2.44 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-9826 Washer $5.86 1 (series 1 and series 2) usually ships 1-5 days
N/S 192-0003 Screw M3 x 10mm raised head $1.13 1 (series 1 and series 2) ships same day
N/S 192-7416 Washer 4. 3/8 $0.89 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-5078 24V brush motor with noise suppression $474.97 2 (series 1 and series 2) ships same day
N/S 192-8633 Stud $7.45 6 (series 1 and series 2) ships same day
N/S 192-9809 Poly v belt $20.10 2 (series 1 and series 2) ships same day
N/S 192-9811 Pulley $19.61 2 (4000) (series 1 and series 2) ships same day
N/S 292-0144 Pulley $25.72 2 (5000) (series 1 and series 2) usually ships 30-75 days
N/S 192-0800 Nut M12 left hand thread hex $4.40 2 (series 1 and series 2) ships same day
N/S 192-0200 Washer M6 $3.12 6 (series 1 and series 2) ships same day
N/S 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 6 (series 1 and series 2) ships same day
N/S 192-7525 Wire sleeve $5.57 4 (series 1 and series 2) ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (series 1 and series 2) usually ships 11-24 days
N/S 192-9834 Hose (sold by the inch) $0.99 21 in (series 1 and series 2) ships same day
N/S 192-9834 Hose (sold by the inch) $0.99 11 in (series 1 and series 2) ships same day
N/S 192-9834 Hose (sold by the inch) $0.99 33 in (series 1 and series 2) ships same day
N/S 192-9834 Hose (sold by the inch) $0.99 24 in (series 1 and series 2) ships same day
