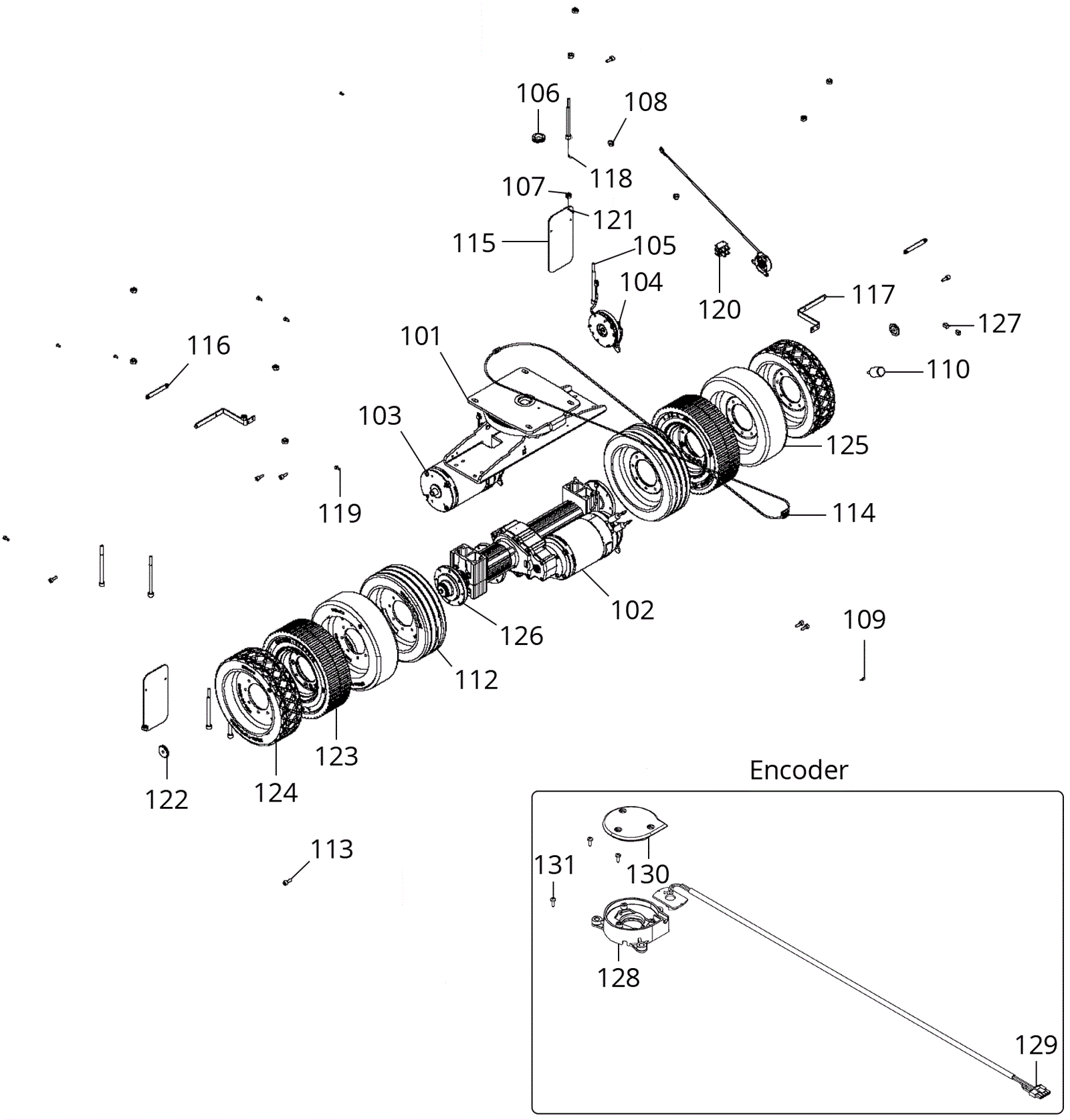

SWINGO 4000 Lower Drive Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-9772 Center pivot plate $1,246.54 1 usually ships 1-5 days
102 192-9775 Transaxle assembly $2,871.69 1 usually ships 30-75 days
103 192-9784 Drive motor $1,855.72 1 usually ships 30-75 days
104 192-9785 Brake $464.96 1 ships same day
105 192-9777 Screw socket head cap $3.91 8 usually ships 1-5 days
106 192-1082 Grommet $2.44 1 usually ships 30-75 days
107 192-6339 Nut M10 self locking $2.44 12 ships same day
108 292-8495 Magnet $40.12 1 usually ships 30-75 days
109 192-0425 Screw M4 x 10mm socket head cap $0.89 3 usually ships 30-75 days
110 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 usually ships 11-24 days
112 192-9776 Drive wheel $476.51 2 ships same day
113 192-0036 Screw M8 x 20mm socket head $2.44 16 ships same day
114 192-9778 Cord $28.40 1 usually ships 30-75 days
115 192-6203 Rubber shield $5.08 2 usually ships 30-75 days
116 192-5559 Plate $13.26 2 ships same day
117 192-9779 Splash guard bracket $5.45 2 usually ships 30-75 days
118 192-0148 Screw M4 x 10mm raised cheese head $2.44 4 ships same day
119 192-0506 Screw M6 x 12mm socket head $2.44 4 usually ships 30-75 days
120 192-9773 2 way connection block $13.67 1 usually ships 1-5 days
121 192-1105 Screw M4 x 20mm socket head $2.44 1 usually ships 1-5 days
122 292-0910 Disc $58.61 2 usually ships 30-75 days
123 192-9787 Drive wheel $728.60 2 (option) usually ships 30-75 days
124 192-9788 Drive wheel $828.08 2 (option) ships same day
125 292-5401 Traction wheel without profile (red) $533.24 2 (option) usually ships 30-75 days
126 292-0909 Wheel hub set $742.57 1 usually ships 30-75 days
127 292-0908 Carbon brush set $166.01 1 usually ships 30-75 days
128 292-5598 Housing $5.86 1 usually ships 30-75 days
129 292-8496 Rotary encoder $89.62 1 usually ships 30-75 days
130 292-5599 Cover $4.35 1 usually ships 30-75 days
131 192-6283 Screw for plastic KA 30 x 8 $2.44 3 usually ships 1-5 days
N/S 192-9780 Holder $74.18 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-0510 Nut M8 self locking $2.44 4 (series 1 and series 2) ships same day
N/S 192-4221 Screw M5 x 14mm hex head $2.44 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-0705 Washer $1.40 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-9786 Strap $3.12 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-0340 Nut M5 hex self locking $2.93 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-1195 Washer M4 $2.44 3 (series 3) ships same day
