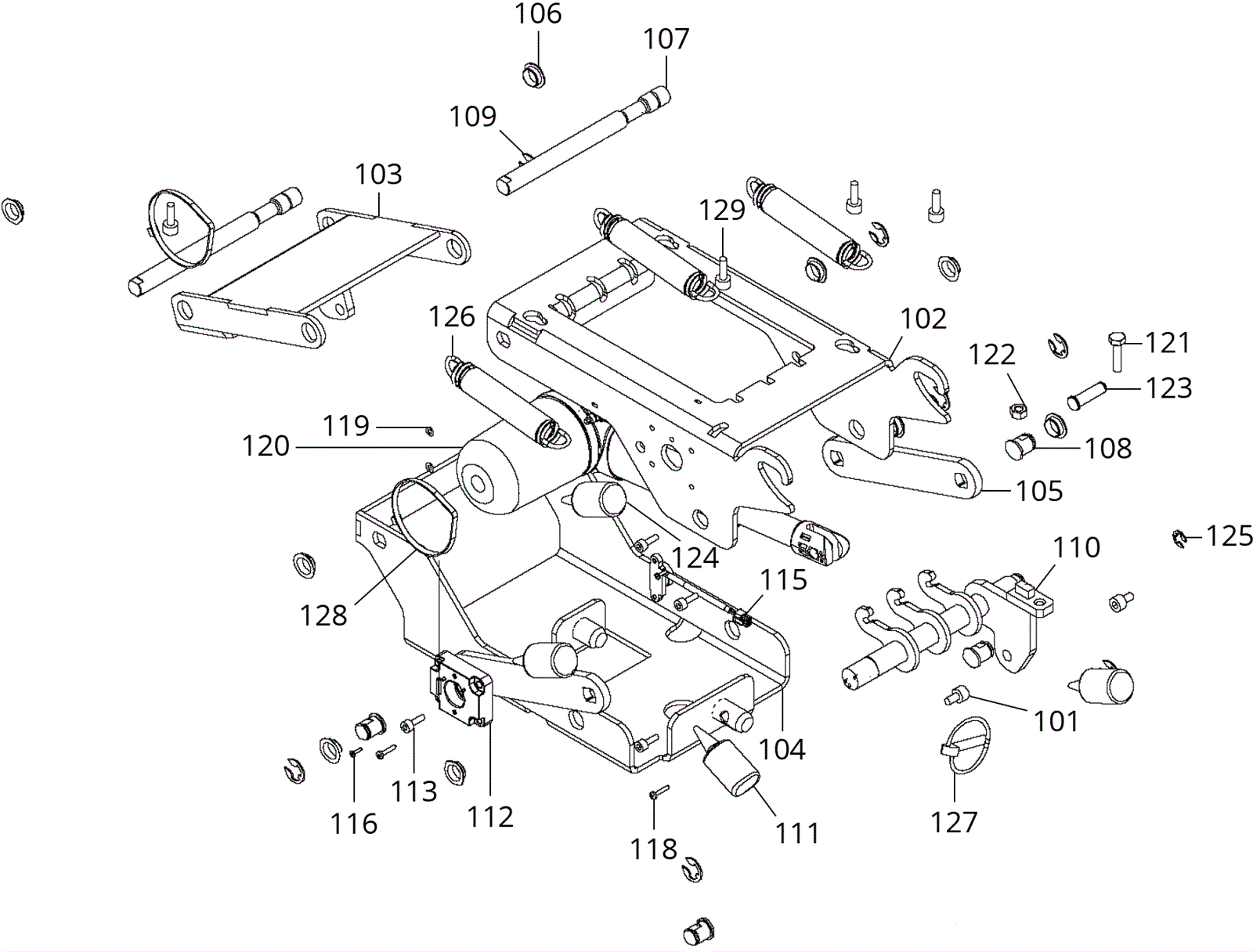

SWINGO 4000 Tool Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0364 Screw M8 x 12mm socket head $2.52 2 ships same day
102 192-9762 Tension spring bracket $118.68 1 usually ships 1-5 days
103 192-9764 Lever $79.32 1 usually ships 30-75 days
104 192-9765 Console $132.11 1 usually ships 30-75 days
105 192-9771 Console bracket $14.29 2 usually ships 30-75 days
106 192-9351 Grommet $2.44 9 ships same day
107 192-9763 Bolt $22.72 2 usually ships 30-75 days
108 192-9766 Bolt $15.09 4 ships same day
109 192-2776 Snap ring $2.44 7 ships same day
110 192-9768 Tension spring bracket $81.15 1 usually ships 1-5 days
111 192-1872 Grease $10.90 1 ships same day
112 192-9769 Sensor holder (OBSOLETE) $3.76 1 usually ships 30-75 days
113 192-0007 Screw M6 x 16mm socket head cap $2.44 4 ships same day
115 192-9770 Sensor $251.35 1 usually ships 30-75 days
116 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
118 192-6286 Screw KA 40 x 18 $2.44 2 usually ships 30-75 days
119 192-9755 Spring washer 3 x 9 x 1 $2.44 2 usually ships 1-5 days
120 192-9178 Brush actuator $352.57 1 ships same day
121 192-0838 Screw M8 x 30 hex head $3.62 1 usually ships 1-5 days
122 192-0347 Nut M8 hex $0.89 1 ships same day
123 192-9182 Bolt $6.72 2 ships same day
124 192-1872 Grease $10.90 1 ships same day
125 192-0086 Snap ring $2.44 2 ships same day
126 192-9767 Tension spring $41.78 3 usually ships 30-75 days
127 192-1148 Pin with ring $2.76 1 usually ships 30-75 days
128 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
129 192-0036 Screw M8 x 20mm socket head $2.44 4 ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 2 usually ships 11-24 days
