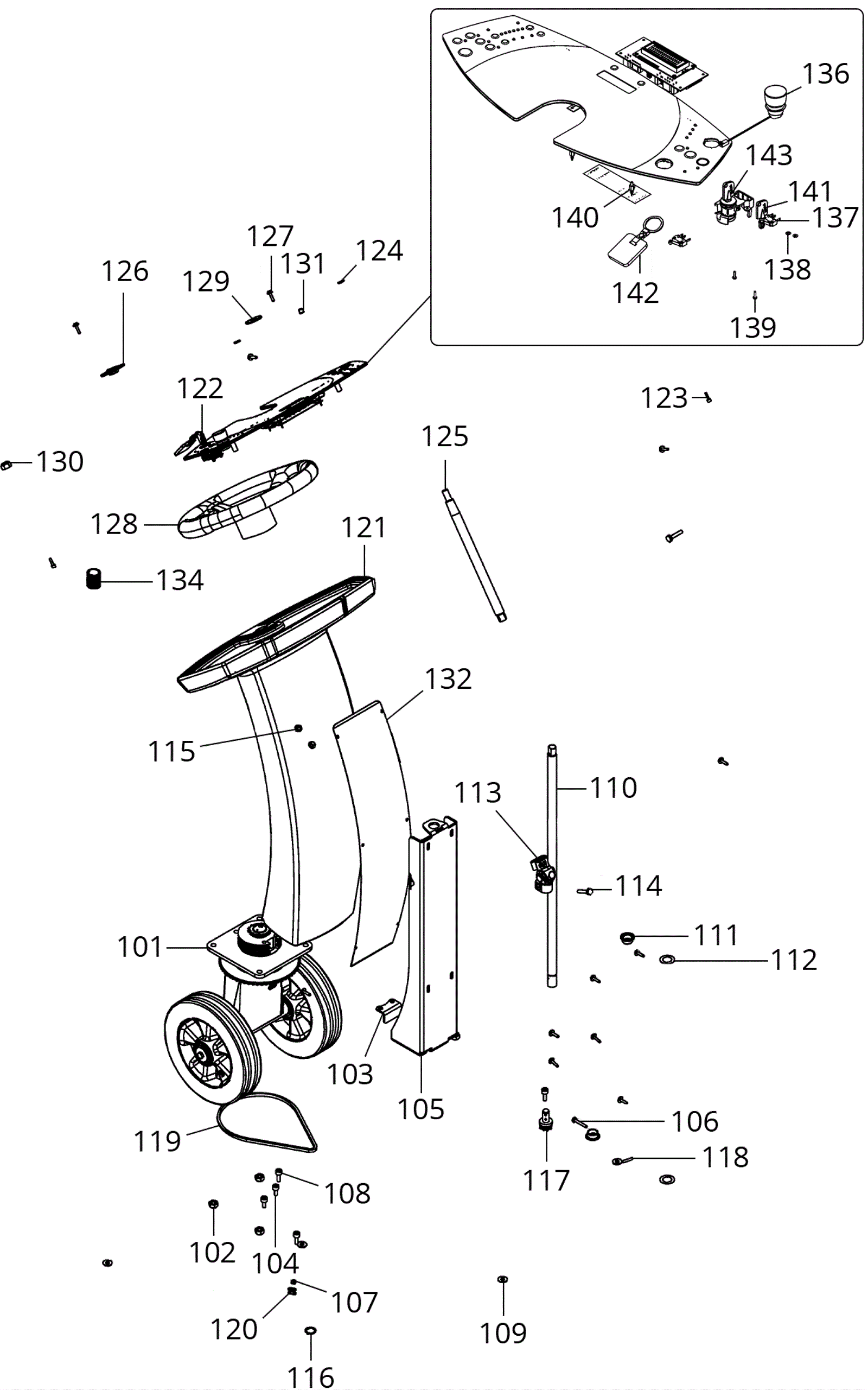

SWINGO 4000 Upper Drive Assembly

#PartDescriptionPriceReqNotesAvailability
101a 192-9750 Drive assembly $1,470.55 1 (includes 101b-101e) ships same day
101b 192-9751 Wheel $283.64 2 usually ships 30-75 days
101c 192-0822 Screw M8 x 25 hex head $3.30 2 ships same day
101d 192-7427 Washer $4.71 4 usually ships 30-75 days
101e 292-5402 Front wheel without profile (red) $289.26 2 (option) ships same day
102 192-6339 Nut M10 self locking $2.44 4 ships same day
103 192-9749 Angled bracket $6.84 1 usually ships 30-75 days
104 192-0078 Screw M8 x 16mm socket head $2.44 2 ships same day
105 192-9747 Bracket $110.94 1 usually ships 30-75 days
106 192-4224 Screw M6 x 35mm hex head $0.89 1 usually ships 30-75 days
107 192-0151 Nut M6 hex $2.44 1 ships same day
108 192-0036 Screw M8 x 20mm socket head $2.44 4 ships same day
109 192-0079 Washer $0.89 4 ships same day
110 192-9745 Rod $104.23 1 usually ships 30-75 days
111a 192-9744 Slide bearing $2.56 2 (series 1 and series 2) ships same day
111b 192-1044 Slide bearing $3.37 2 (series 3) ships same day
112 192-1077 Spacer disc $2.44 2 usually ships 30-75 days
113 192-1069 Cross joint $121.80 1 usually ships 30-75 days
114 192-0835 Screw M8 x 35mm hex head $3.74 2 ships same day
115 192-0510 Nut M8 self locking $2.44 2 ships same day
116 192-0807 Retaining ring $2.44 1 ships same day
117 192-1075 Chain wheel $49.04 1 usually ships 30-75 days
118 192-1076 Extensible pin 5 x 24 $5.69 1 usually ships 30-75 days
119 192-9748 Chain $11.23 1 usually ships 30-75 days
120 192-1217 3/8 inch chain master link $2.44 1 usually ships 30-75 days
121 192-9742 Hood $289.86 1 usually ships 1-5 days
122a 192-9741 Keyboard $1,667.08 1 (includes 136) (series 1 and series 2) ships same day
122b 292-8623 Control board $1,076.36 1 (includes 136-143) (series 3) usually ships 30-75 days
123 192-0035 Screw M5 x 16mm socket head cap $1.11 2 ships same day
124 192-0091 Washer $0.89 2 ships same day
125 192-9740 Rod $105.18 1 usually ships 30-75 days
126 192-9739 Flanged bearing $8.87 1 usually ships 30-75 days
127 192-1561 Screw 60 x 20 torx head $2.44 12 ships same day
128 192-1051 Steering wheel $250.75 1 usually ships 30-75 days
129 192-1078 Washer $0.89 1 ships same day
130 192-1049 Nut M12 self locking $3.66 1 ships same day
131 192-9746 Plug $2.44 1 usually ships 1-5 days
132 192-9743 Panel $113.55 1 usually ships 30-75 days
134 192-9834 Hose (sold by the inch) $0.99 33 in ships same day
136 192-8729 Actuator stop button $160.44 1 ships same day
137 192-8721 Microswitch $27.98 2 ships same day
138 192-0677 Washer M3 $1.20 2 ships same day
139 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
140 292-5542 Bolt M3 x 22.2 $2.44 4 usually ships 1-5 days
141 292-5254 Steel key $3.78 1 ships same day
142 192-4662 Key ring $4.71 1 usually ships 30-75 days
143 292-8535 Key switch assembly $62.37 1 ships same day
N/S 192-0102 7 3/4 inch cable tie $2.44 4 (series 1 and series 2) usually ships 30-75 days
N/S 192-1048 Cap (OBSOLETE) $15.95 1 (series 1 and series 2) usually ships 30-75 days
N/S 192-1052 Flange $90.48 1 (series 1 and series 2) usually ships 30-75 days
