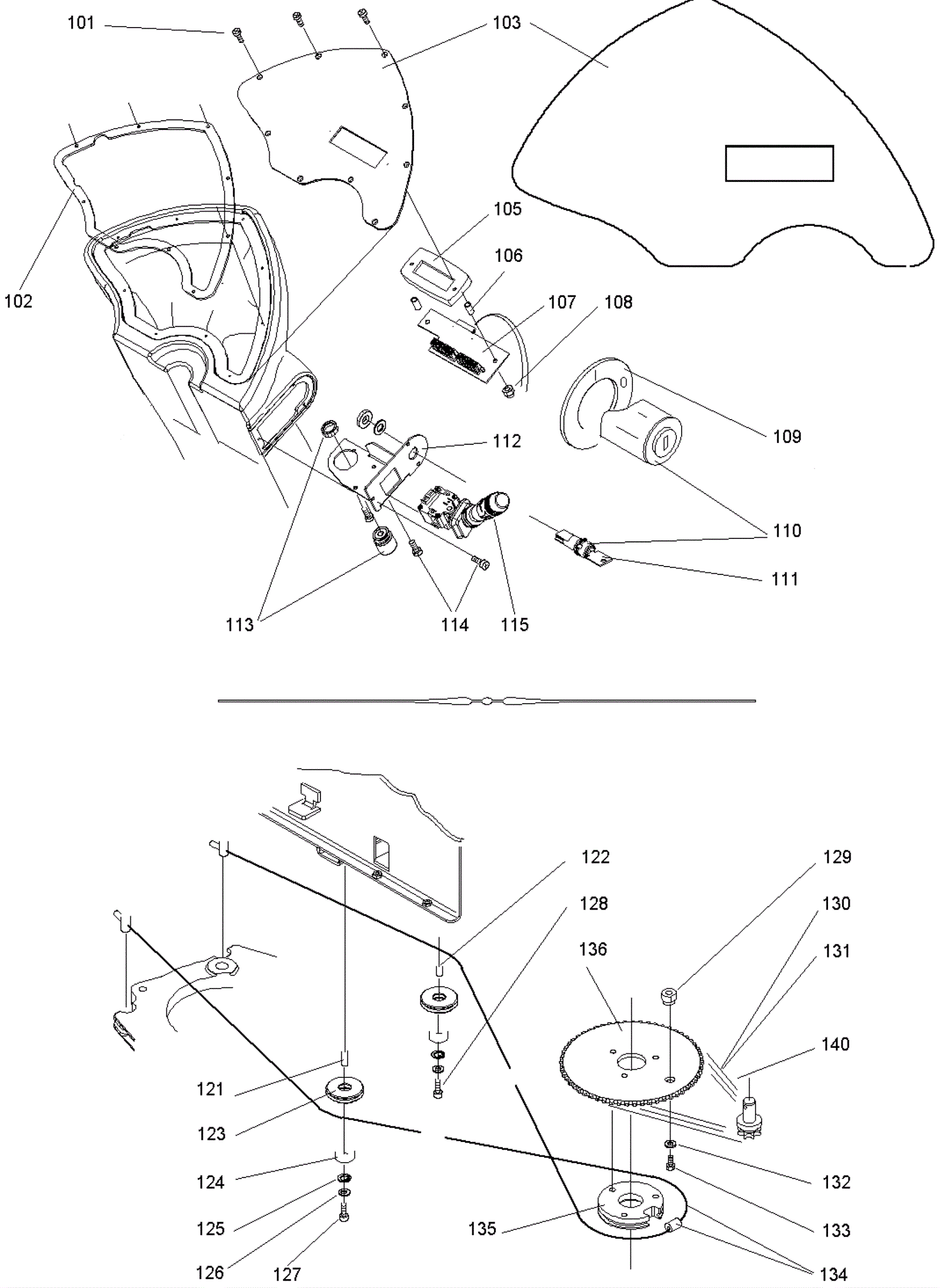

COMBIMATSWINGO3500 Control Board Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1058 Screw 35 x 10 for plastic $2.93 9 ships same day
102 192-1062 Gasket $24.98 1 usually ships 30-75 days
103 192-4663 Keyboard $254.21 1 ships same day
105 192-1481 LCD display box $381.88 1 usually ships 30-75 days
106 192-2412 Bushing $2.44 2 usually ships 1-5 days
107 192-1633 Adapter print $289.26 1 usually ships 30-75 days
108 192-0235 Nut M4 self locking $2.44 2 ships same day
109 192-1085 Decal $2.44 1 usually ships 30-75 days
110 192-0025 Key switch assembly $280.57 1 ships same day
111 192-1064 Side cut key $65.81 1 ships same day
112 192-1067 Switch bracket $28.33 1 usually ships 30-75 days
113 192-6515 Horn $24.88 1 ships same day
114 192-0941 Screw M40 x M10 for plastic $4.35 6 usually ships 30-75 days
115 192-1065 Switch $104.23 1 usually ships 30-75 days
121 192-1210 Bushing $15.51 1 usually ships 30-75 days
122 192-1211 Bushing $11.85 1 usually ships 30-75 days
123 192-1212 Deflection roller $70.16 2 usually ships 30-75 days
124 192-0488 Ball bearing $4.40 2 usually ships 30-75 days
125 192-0489 Retaining ring $4.03 2 usually ships 30-75 days
126 192-1213 Washer $5.37 2 usually ships 30-75 days
127 192-1214 Screw M8 x 45/28mm socket head cap $5.37 1 usually ships 30-75 days
128 192-0603 Screw hex $4.28 1 usually ships 30-75 days
129 192-1215 Stop bolt $15.09 1 usually ships 1-5 days
130 192-1216 3/8 inch roller chain $36.29 1 usually ships 30-75 days
131 192-1217 3/8 inch chain master link $2.44 1 usually ships 30-75 days
132 192-0079 Washer $0.89 1 ships same day
133 192-0509 Screw M8 x 12mm hex head $2.52 1 usually ships 30-75 days
134 192-1218 Directing rope $33.09 1 usually ships 30-75 days
135 192-1219 Rope roller $23.20 1 usually ships 30-75 days
136 192-1220 Chain sprocket $96.42 1 usually ships 1-5 days
140 192-1221 Anti-corrosive spray $201.78 1 usually ships 1-5 days
