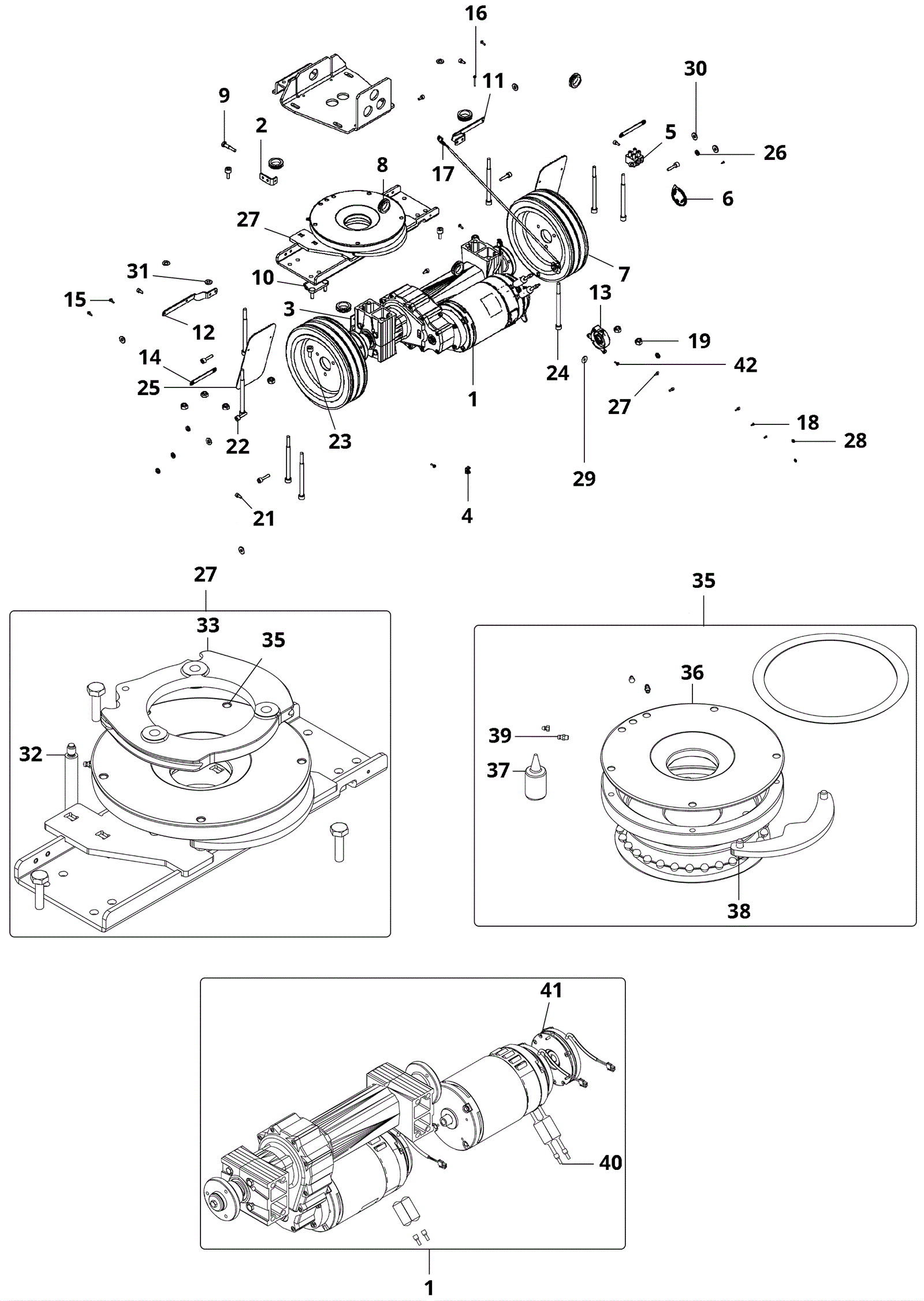

COMBIMATSWINGO2500 Drive Unit Assembly - Version 7

#PartDescriptionPriceReqNotesAvailability
1 292-0960 Motor assembly $2,761.26 1 (includes 40-41) usually ships 30-75 days
2 292-0143 Angle bracket $3.78 1 usually ships 30-75 days
3 192-9786 Strap $3.12 1 usually ships 30-75 days
4 292-5527 Clamp $2.44 1 usually ships 1-5 days
5 192-9773 2 way connection block $13.67 1 usually ships 1-5 days
6 292-5599 Cover $4.35 1 usually ships 30-75 days
7 292-0874 Drive wheel (OBSOLETE) Call for price 2 (standard) usually ships 30-75 days
8 192-1082 Grommet $2.44 8 usually ships 30-75 days
9 192-9212 Screw M8 x 40/22mm hex $4.35 1 ships same day
10 192-6790 Stretching bracket $54.46 1 usually ships 1-5 days
11 292-0961 Holder Call for price 1 usually ships 30-75 days
12 292-0962 Holder Call for price 1 usually ships 30-75 days
13 292-5598 Housing $5.86 1 usually ships 30-75 days
14 192-5559 Plate $13.26 2 ships same day
15 192-5921 Screw M4 x 12 raised cheese head $6.23 5 ships same day
16 192-5924 Screw M4 x 30mm raised cheese head $2.44 1 ships same day
17 292-8496 Rotary encoder $89.62 1 usually ships 30-75 days
18 192-6283 Screw for plastic KA 30 x 8 $2.44 3 usually ships 1-5 days
19 192-6339 Nut M10 self locking $2.44 8 ships same day
20 192-0425 Screw M4 x 10mm socket head cap $2.44 3 usually ships 30-75 days
21 192-0506 Screw M6 x 12mm socket head $2.44 6 usually ships 30-75 days
22 192-0603 Screw hex $4.28 6 usually ships 30-75 days
23 192-0264 Screw M10 x 20mm socket head cap $5.86 4 usually ships 30-75 days
24 192-9777 Screw socket head cap $3.91 8 usually ships 1-5 days
25 192-6203 Rubber shield $5.08 2 usually ships 30-75 days
26 192-1180 Spring washer $2.44 6 usually ships 30-75 days
27 292-0963 Swing bearing Call for price 1 (includes 32-33, 35) usually ships 30-75 days
28 192-1195 Washer M4 $2.44 3 ships same day
29 192-0705 Washer $2.44 1 usually ships 30-75 days
30 192-0079 Washer $0.89 7 ships same day
31 192-0496 Washer M10 $2.44 4 ships same day
32 192-1028 Bolt $36.59 1 ships same day
33 192-6747 Steering roller $399.47 1 usually ships 30-75 days
35 192-1938 Swing bearing $1,035.09 1 (includes 36-39) usually ships 30-75 days
36 192-5698 Protection cap $156.73 1 usually ships 1-5 days
37 192-1872 Grease $11.99 1 ships same day
38 192-6748 Steering stop assembly $60.93 1 usually ships 30-75 days
39 192-4854 Lubricator nipple $7.69 2 usually ships 30-75 days
40 192-9784 Drive motor $1,855.72 1 usually ships 30-75 days
41 192-9785 Brake $464.96 1 ships same day
42 192-6347 Screw M4 x 10mm self tapping form $2.44 1 usually ships 30-75 days
N/S 292-8495 Magnet $40.12 1 (included with 1) usually ships 30-75 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (included with 1) usually ships 11-24 days
N/S 192-0235 Nut M4 self locking $2.44 1 (included with 1) ships same day
