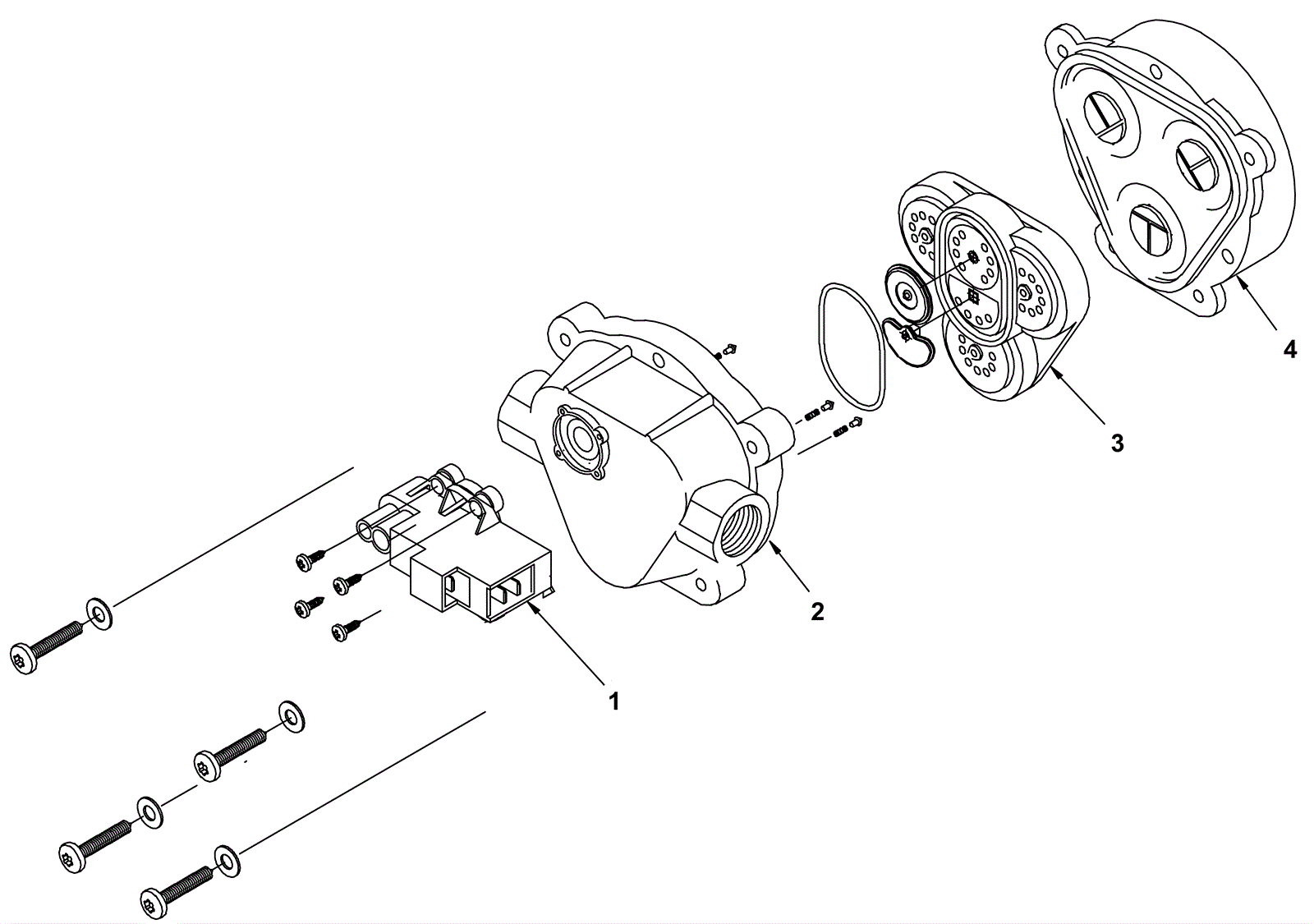

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
292-5293
|
Pressure switch kit |
1 |
|
|
2 |
292-5294
|
Upper housing assembly |
1 |
|
|
3 |
292-5295
|
Valve housing assembly |
1 |
|
|
4 |
292-5296
|
Lower housing assembly |
1 |
|
|
N/S |
292-5297
|
Strainer |
1 |
(includes a 3/8 female threaded port nylon top, 50 mesh stainless steel screen, a viton gasket, and a Grilamid TR 55 see through bowl - UV resistant strainer) |
|
N/S |
292-5298
|
Repair kit |
1 |
(includes a 3/8 hose barb port nylon top, 50 mesh stainless steel screen, a viton gasket, and a Grilamid TR 55 see through bowl - UV resistant strainer) |
|
N/S |
292-0316
|
115V pump and male elbows |
1 |
(includes 1-4) |
|
