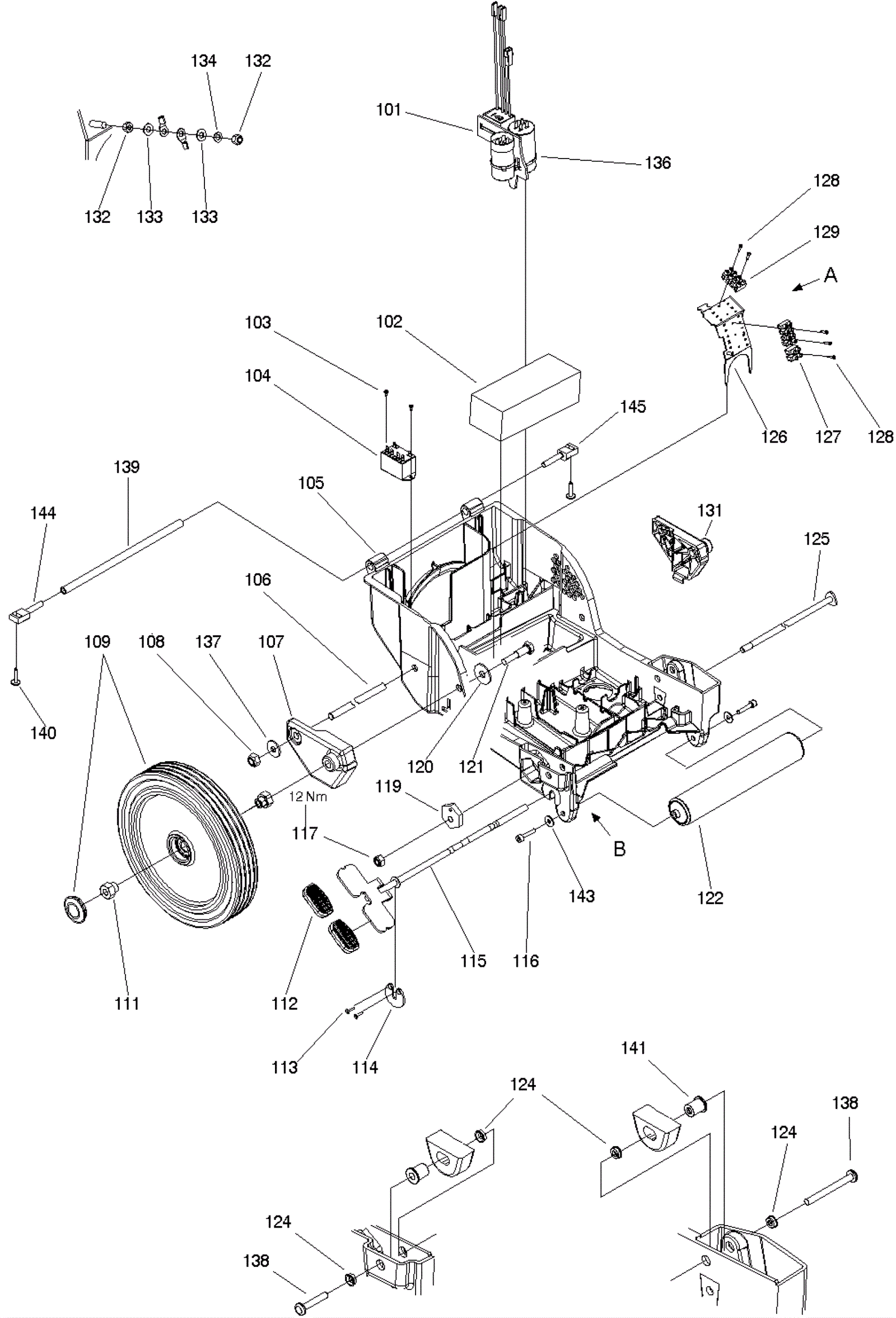

PRO CARPET 45 Base Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-0273 120V electrical panel $189.33 1 usually ships 30-75 days
102 292-0274 Filter $18.14 1 usually ships 30-75 days
103 192-1571 Screw M50 x 16mm $2.44 2 ships same day
104 292-0118 120V contactor $81.69 1 ships same day
105 292-0275 Chassis $182.85 1 ships same day
106 292-0276 Axle $24.20 1 usually ships 30-75 days
107 292-0277 Right console $35.49 1 usually ships 30-75 days
108 192-1049 Nut M12 self locking $3.66 2 ships same day
109 292-0278 Wheel $111.73 2 usually ships 30-75 days
111 292-0279 Wheel nut $18.93 4 ships same day
112 192-8983 Pedal pad $9.50 2 ships same day
113 292-0280 Screw KA 40 x 16 counter head $4.88 2 ships same day
114 292-0281 Lever plate $10.63 1 ships same day
115 292-0282 Lever $59.71 1 usually ships 30-75 days
116 192-9220 Screw M8 x 35 socket head cap $1.22 2 ships same day
117 192-6339 Nut M10 self locking $2.44 1 ships same day
119 292-0283 Disc $26.22 1 ships same day
120 192-1078 Washer $0.89 2 ships same day
121 292-0284 Screw M12 x 90 hex head $2.44 2 usually ships 30-75 days
122 292-0285 Roller $120.84 1 ships same day
124 292-0286 Bushing $10.57 4 ships same day
125 292-0287 Axle $43.78 1 usually ships 30-75 days
126 292-0288 Plate $32.40 1 usually ships 30-75 days
127 192-0260 2-way connection block $2.81 1 ships same day
128 192-5455 Screw M2-.9 x 16mm pan head tapping $3.78 5 usually ships 1-5 days
129 192-1224 4 way connection block $3.98 2 ships same day
131 292-0289 Left console $35.49 1 usually ships 30-75 days
132 192-0039 Nut M4 hex $4.10 2 usually ships 30-75 days
133 192-1195 Washer M4 $2.44 2 ships same day
134 192-0281 Spring washer $2.44 1 usually ships 1-5 days
136 192-0794 Cable tie $0.89 3 ships same day
137 192-1050 Washer $3.62 2 usually ships 30-75 days
138 192-5935 Screw M6 x 40 raised cheese head $3.25 2 usually ships 30-75 days
139a 292-5325 Axle $6.72 1 usually ships 1-5 days
139b 292-0290 Axle $14.61 1 (0 series) usually ships 1-5 days
140 192-1509 Screw 60 x 25 torx head $4.35 2 ships same day
141 192-9165 Nut M6 blind rivet $4.79 2 ships same day
143 192-0105 Washer M8 $2.44 2 ships same day
144 292-5326 Bolt $15.63 1 usually ships 30-75 days
145 292-5327 Bolt $15.63 1 usually ships 30-75 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
