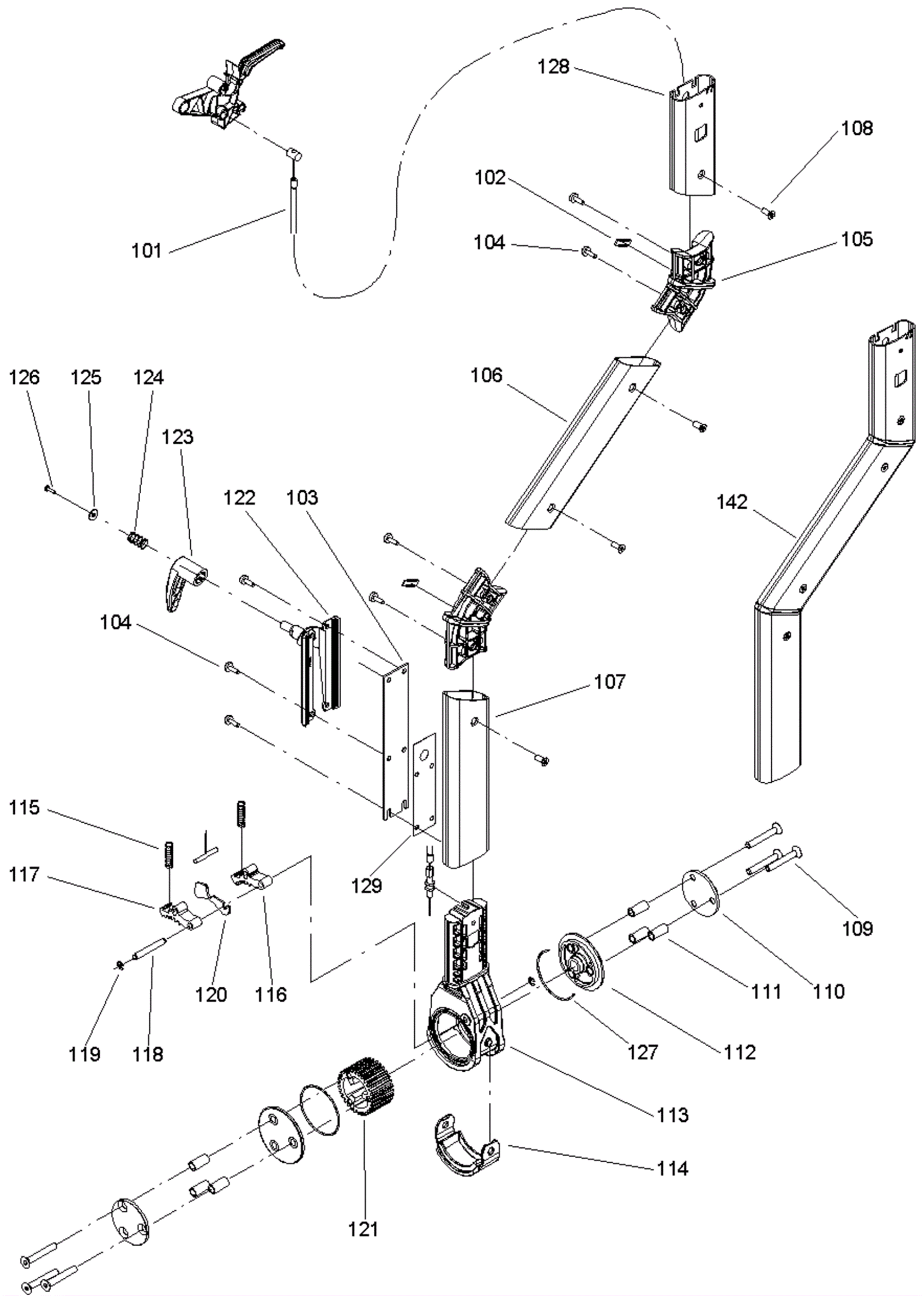

PRO CARPET 45 Guide Bar Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-0256 Bowden cable $19.98 1 ships same day
102 292-0249 Bracket cover $5.37 2 ships same day
103 292-0253 Guide bar cover $12.33 1 usually ships 30-75 days
104 292-5130 Screw M6-1 x 16mm torx $3.62 12 ships same day
105 292-0250 Guide bar bracket $25.03 2 ships same day
106 292-0251 Guide bar $51.60 1 usually ships 30-75 days
107 292-0252 Guide bar $51.16 1 usually ships 30-75 days
108 192-2979 Screw M6 x 16mm countersunk head cap $2.44 4 ships same day
109 192-9964 Screw M8 x 55mm countersunk $2.44 6 ships same day
110 292-0254 Disc $4.47 2 ships same day
111 192-9962 Bushing $6.23 6 ships same day
112 192-8810 Retaining plate $12.45 2 ships same day
113 292-9454 Articulation $58.61 1 ships same day
114 192-9966 Cover $2.76 1 ships same day
115 192-9955 Pressure spring $5.37 2 ships same day
116 192-9956 Toothed rocker $16.61 1 ships same day
117 192-9958 Toothed rocker $16.61 1 usually ships 30-75 days
118 192-9959 Axle $6.35 1 ships same day
119 192-0902 Snap ring $2.44 2 ships same day
120 192-9957 Plate $2.44 1 ships same day
121 192-9965 Toothed wheel $47.44 1 ships same day
122 292-0255 Cord hook support $5.01 1 usually ships 30-75 days
123 192-0558 Cable hook $3.49 1 ships same day
124 192-5680 Pressure spring $6.23 1 ships same day
125 192-0091 Washer $0.89 1 ships same day
126 192-0547 Screw KA 40 x 14 $2.44 1 ships same day
127 192-8912 O-ring $2.44 2 usually ships 30-75 days
128 292-0248 Guide bar $46.96 1 usually ships 30-75 days
129 292-8603 Gasket $11.23 1 usually ships 30-75 days
142 292-0832 Profile pipe $304.35 1 ships same day
N/S 192-1872 Grease $11.99 1 ships same day
N/S 192-0467 Lite thread lock compound $237.19 1 usually ships 1-5 days
