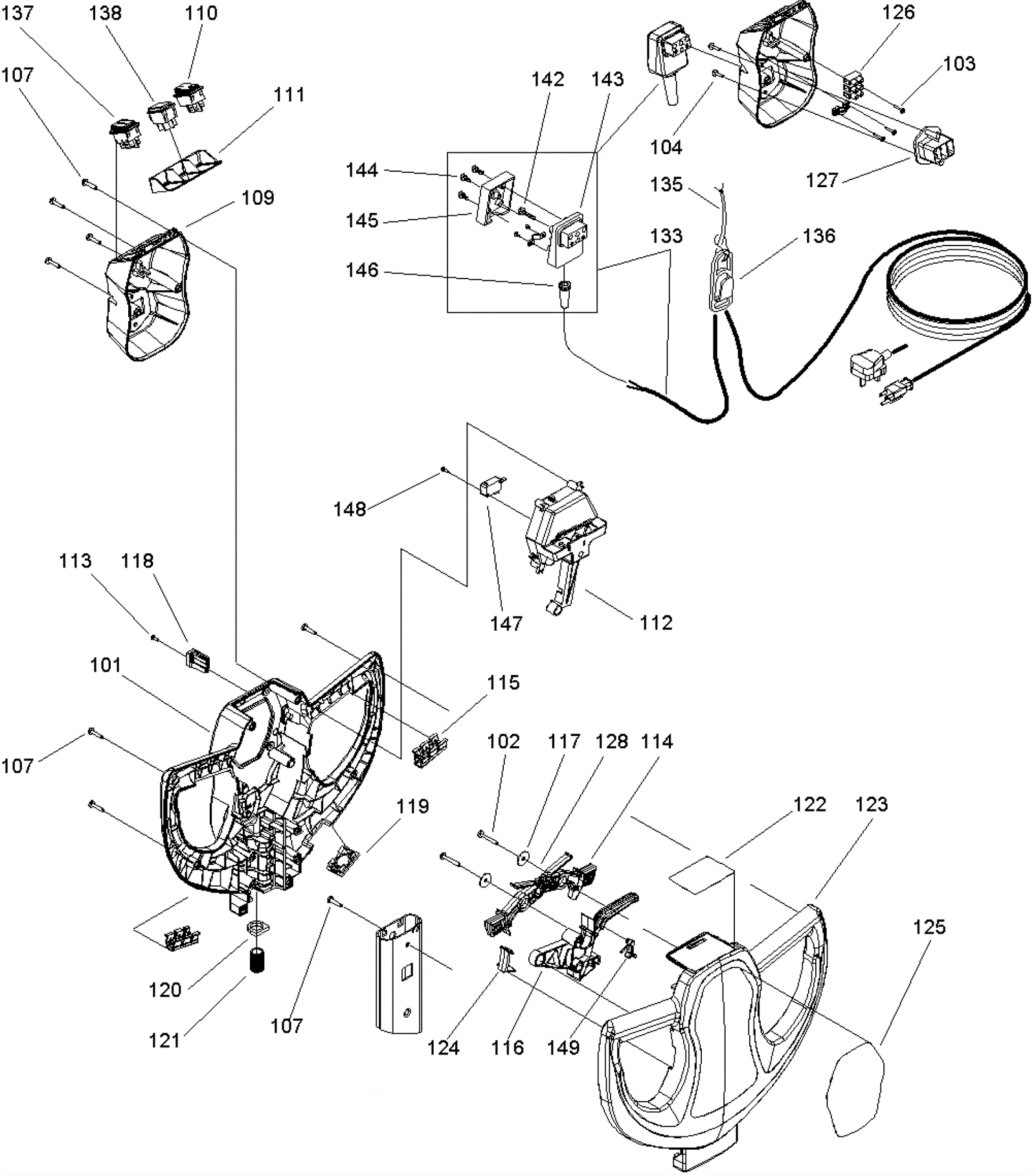

PRO CARPET 45 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-8793 Rear handle $42.44 1 usually ships 24-40 days
102 192-9948 Screw KA 50 x 30 $2.56 2 ships same day
103 192-0452 Screw for plastic KA 30 x 16mm $2.56 3 usually ships 24-40 days
104 192-1595 Screw M40 x 16mm torx head $2.56 2 ships same day
107 192-0539 Screw 50 x 20 $2.56 17 ships same day
109 292-0105 Housing $9.31 1 usually ships 24-40 days
110 192-6107 2 position rocker switch $10.46 1 ships same day
111 292-0247 Switch housing cover $2.56 1 usually ships 24-40 days
112 292-0104 Cover $8.84 1 usually ships 24-40 days
113 192-6282 Screw KA 30 x 10 $3.72 1 ships same day
114 292-0245 Lever cover $5.97 2 usually ships 24-40 days
115 292-0244 Cover $4.05 2 ships same day
116 192-9951 Lever $6.74 1 ships same day
117 192-0705 Washer $2.56 2 usually ships 24-40 days
118 192-8792 Cover $2.56 1 usually ships 24-40 days
119 192-3548 False cover $4.31 1 ships same day
120 192-8804 Gasket $3.97 1 usually ships 24-40 days
121 192-8805 Hose $17.30 1 usually ships 24-40 days
122 292-0246 Handle decal $9.31 1 usually ships 24-40 days
123 192-8798 Front handle $42.44 1 ships same day
124 192-9949 Cover $2.56 1 usually ships 24-40 days
125 192-8797 Decorative decal $6.11 1 ships same day
126 192-2896 3 way connection block $3.97 1 ships same day
127 192-0938 Socket plug $8.20 1 ships same day
128 192-1872 Grease $11.99 1 ships same day
133a 192-1413 14/3 power cord 50 foot $406.48 1 (OEM) ships same day
133b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) usually ships 11-15 days
135 192-6052 Retention loop $4.18 1 ships same day
136 192-0569 Hook (OBSOLETE) $2.88 1 usually ships 24-40 days
137 292-0243 3 position rocker switch $27.57 1 ships same day
138 192-3404 Dummy element $2.64 1 usually ships 24-40 days
142 192-0549 Screw KA 35 x 20 $2.56 1 ships same day
143 192-0940 Right angle plug $27.05 1 usually ships 24-40 days
144 192-0548 Screw KA 35 x 10 $2.56 4 usually ships 24-40 days
145 192-0939 Plug cover $7.90 1 usually ships 24-40 days
146 192-0550 Strain relief $2.56 1 ships same day
147 192-0681 Microswitch $14.18 1 ships same day
148 192-0730 Screw KA 30 x 18 $2.56 1 usually ships 24-40 days
149 192-8791 Locking lever $2.56 1 ships same day
N/S 192-0102 7 3/4 inch cable tie $2.56 3 usually ships 24-40 days
