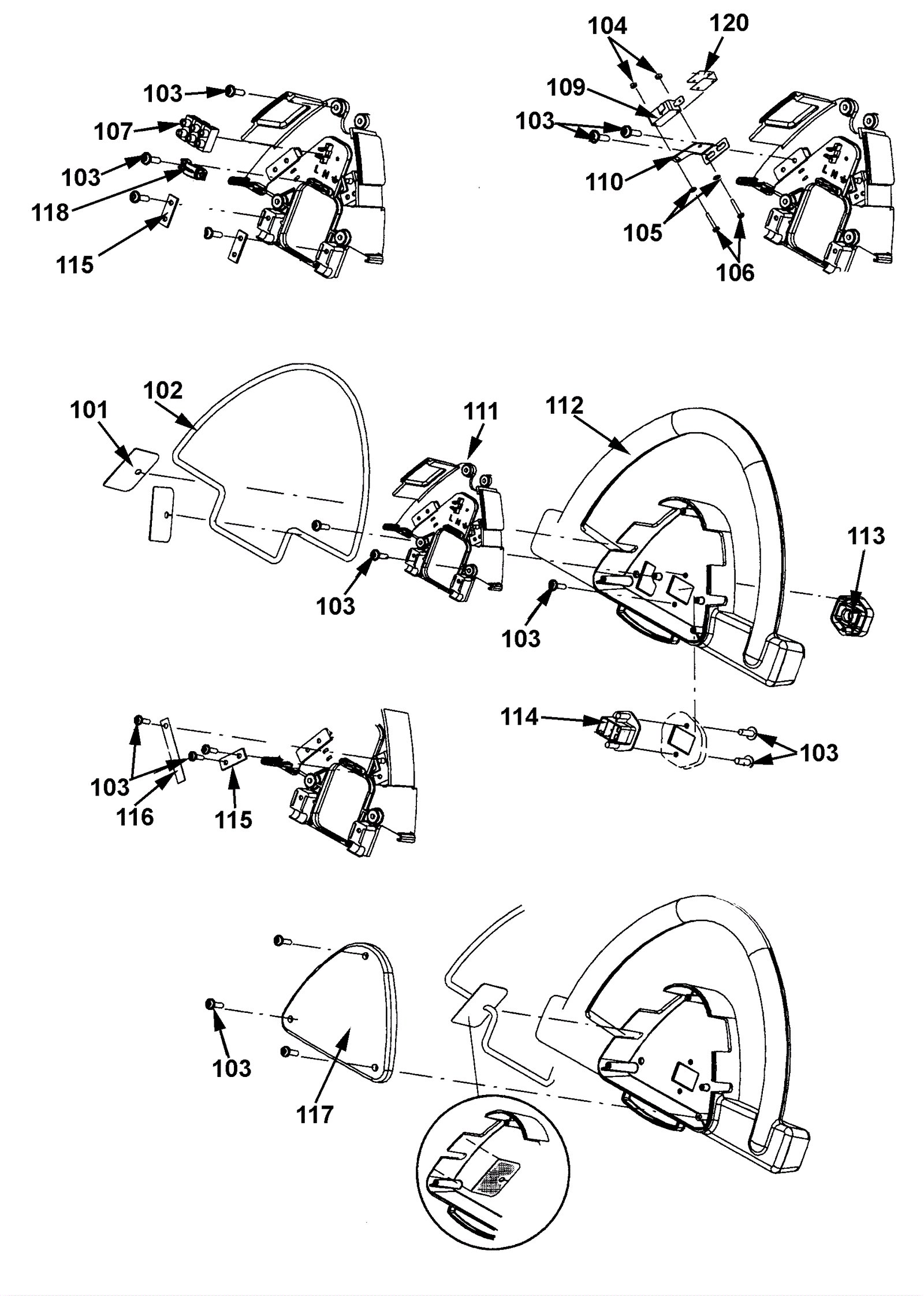

SWINGO 1250E Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1593 Protection shield $2.44 2 usually ships 1-5 days
102 192-1594 Switching bow $17.09 1 usually ships 30-75 days
103 192-1595 Screw M40 x 16mm torx head $2.44 15 ships same day
104 192-0048 Nut M3 hex $2.44 2 usually ships 30-75 days
105 192-0677 Washer M3 $2.44 2 usually ships 30-75 days
106 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
108 192-0452 Screw for plastic KA 30 x 16mm $2.44 2 usually ships 30-75 days
109 192-0681 Microswitch $13.51 1 ships same day
110 192-1598 Switch bracket $4.59 1 usually ships 1-5 days
111 192-2166 Bracket $11.35 1 ships same day
112 192-1587 Handle $92.99 1 ships same day
114 192-0938 Socket plug $8.20 1 ships same day
115 192-1596 Clamp $5.20 3 usually ships 30-75 days
116 192-1597 Spring $6.84 1 usually ships 30-75 days
117 192-1588 Cover $27.48 1 usually ships 1-5 days
118 192-2496 Cable clamp $2.44 1 usually ships 30-75 days
119 192-3591 Female plate clip $2.44 1 usually ships 1-5 days
120 192-6951 Switch insulation $3.66 1 usually ships 30-75 days
