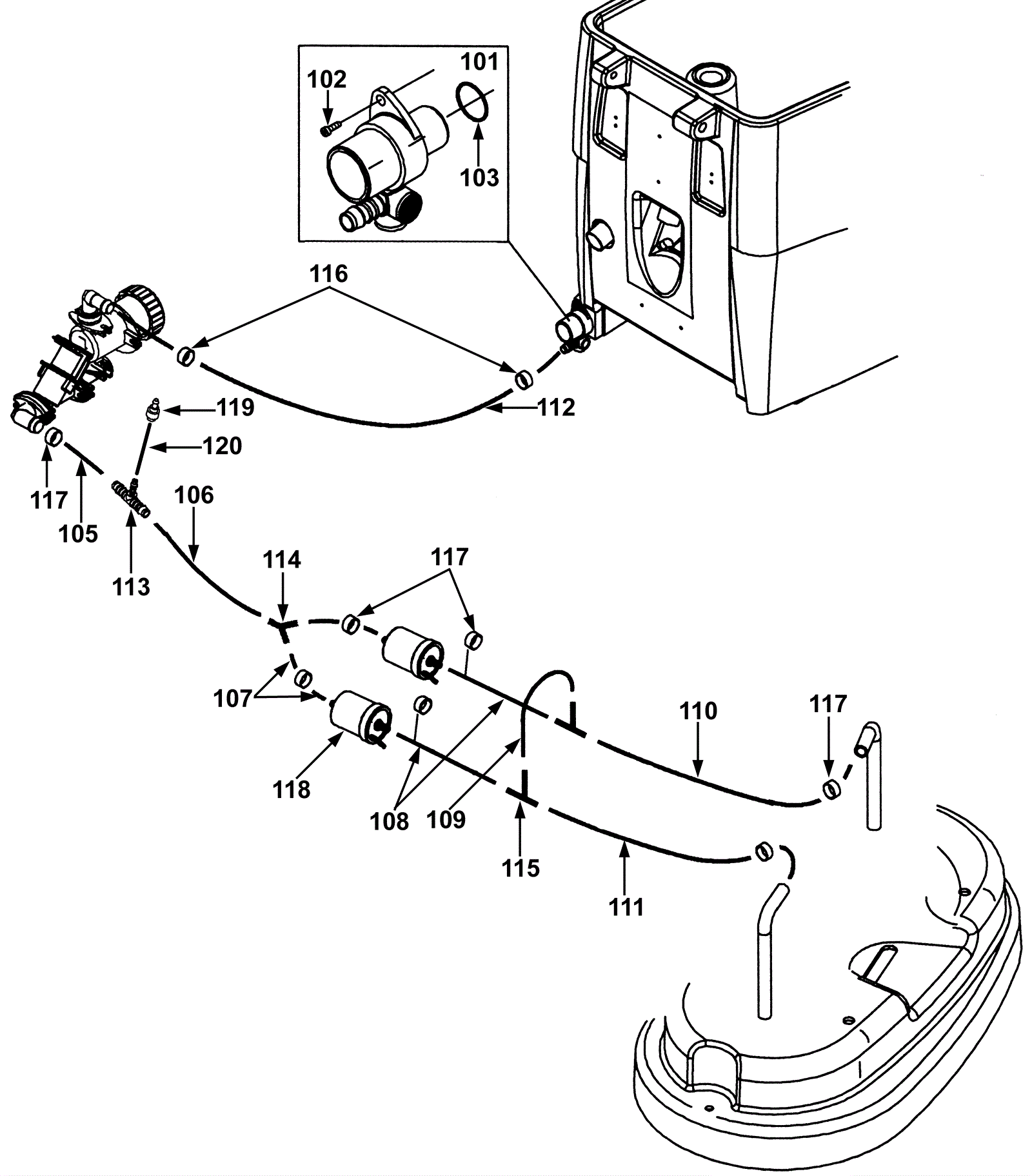

SWINGO 1250B Solution Line Assembly - Series 2

#PartDescriptionPriceReqNotesAvailability
101 192-9243 Discharge housing includes o-rings $22.83 1 ships same day
102 192-1561 Screw 60 x 20 torx head $2.56 1 ships same day
103 192-5369 O-ring $2.56 1 usually ships 24-40 days
105 192-0404 Wire reinforced hose (sold by the inch) $0.99 4 in ships same day
106 192-0404 Wire reinforced hose (sold by the inch) $0.99 19 in ships same day
107a 192-0404 Wire reinforced hose (sold by the inch) $0.99 3 in Series 02 before 01.2006 ships same day
107b 192-4461 Tygon hose (sold by the inch) $4.05 3 in Series 02 after 01.2006 usually ships 24-40 days
108 192-0404 Wire reinforced hose (sold by the inch) $0.99 3 in ships same day
109 192-0404 Wire reinforced hose (sold by the inch) $0.99 6 in ships same day
110 192-0404 Wire reinforced hose (sold by the inch) $0.99 11 in ships same day
111 192-0404 Wire reinforced hose (sold by the inch) $0.99 6 in ships same day
112 192-0400 Wire reinforced hose (sold by the inch) $0.99 34 in ships same day
113 192-0894 T-nipple $5.26 1 ships same day
114 192-7548 Y-pipe $5.97 1 usually ships 24-40 days
115 192-7109 T-nipple $4.24 2 ships same day
116 192-0334 Hose clamp $2.56 2 usually ships 24-40 days
117a 192-4377 Hose clamp $5.51 7 Series 02 before 01.2006 usually ships 24-40 days
117b 192-0334 Hose clamp $2.56 4 Series 02 after 01.2006 usually ships 24-40 days
118 192-1474 Pump $187.06 2 ships same day
119 192-1601 Check valve $28.80 1 ships same day
120 192-4344 Hose (sold by the inch) $3.59 44 in usually ships 24-40 days
N/S 192-9011 Tank bracket (OBSOLETE) $20.99 1 Series 02 after 01.2006 usually ships 1-5 days
