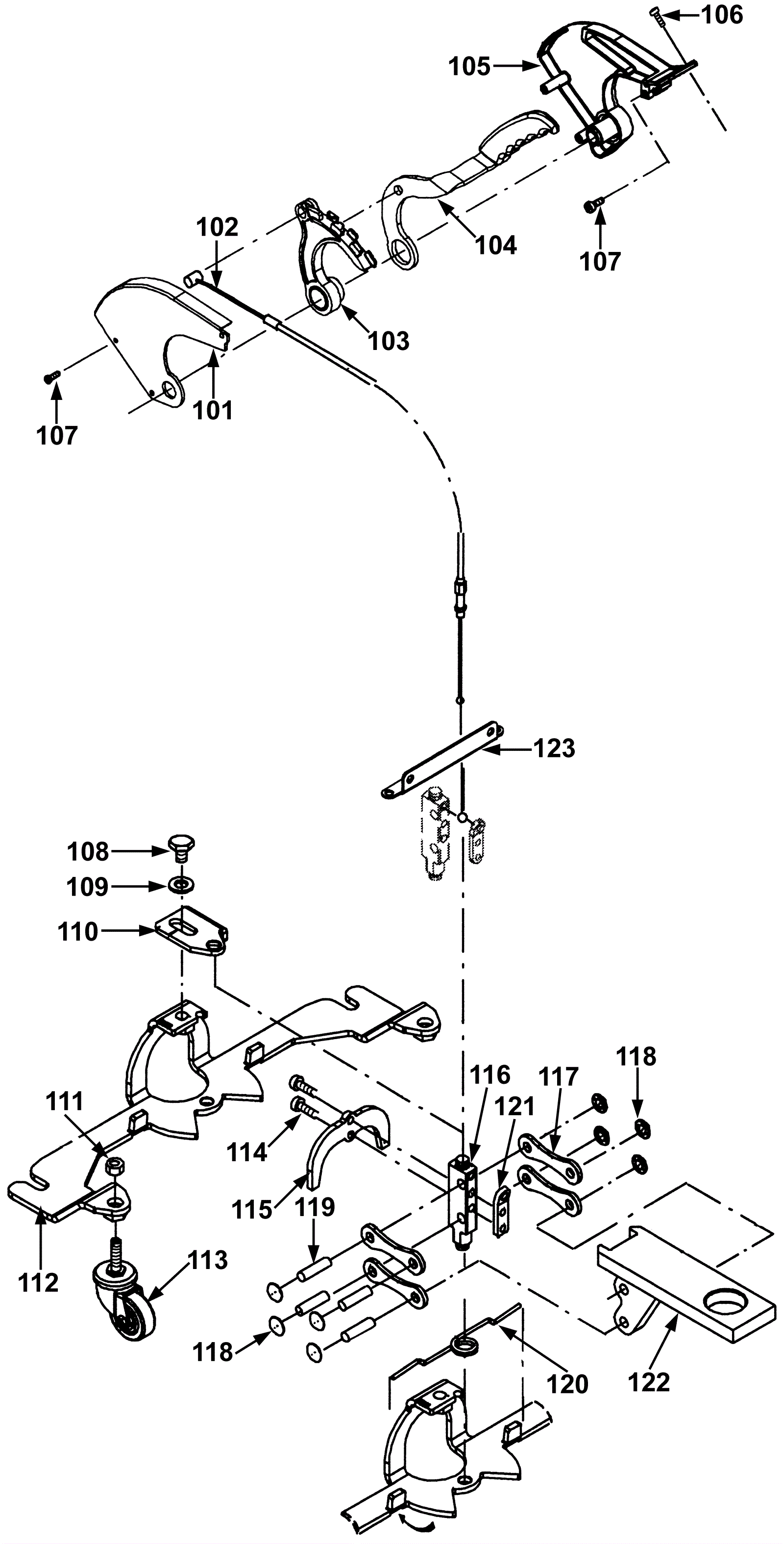

SWINGO 750E Squeegee Lowering Assembly - Series 01

#PartDescriptionPriceReqNotesAvailability
101 192-3079 Cover $18.32 1 ships same day
102 192-1469 Bowden cable (OBSOLETE) $50.62 1 usually ships 24-40 days
103 192-2164 Bracket (OBSOLETE) $17.73 1 usually ships 24-40 days
104 192-4788 Squeegee lever (OBSOLETE - REPLACED BY 192-4789 & 192-4129) $55.96 1 usually ships 1-5 days
105 192-4489 Housing $31.45 1 usually ships 24-40 days
106 192-1561 Screw 60 x 20 torx head $2.44 1 ships same day
107 192-1595 Screw M40 x 16mm torx head $2.44 4 ships same day
108 192-1455 Screw M10 x 16mm hex head $4.22 1 ships same day
109 192-0496 Washer M10 $2.44 1 ships same day
110 192-1456 Adjusting plate $15.09 1 ships same day
111 192-1135 Nut M10 hex $2.44 2 ships same day
112 192-6650 Mounting bracket (OBSOLETE) $147.26 1 usually ships 24-40 days
113 292-8548 Caster wheel $43.59 2 ships same day
115 192-1463 Gripper fork (OBSOLETE) $44.76 1 usually ships 24-40 days
116 192-1464 Axle $29.74 1 usually ships 24-40 days
117 192-1712 Bracket (OBSOLETE) $5.62 4 usually ships 24-40 days
118 192-2779 Snap ring $4.47 8 (used to be a washer star cap which became obsolete - these snap rings are used with the 192-1766 axle) ships same day
119 192-1766 Axle $5.32 4 ships same day
120 192-1460 Spring $3.41 1 ships same day
121 192-4249 Rope clamp $2.44 1 ships same day
122 192-1462 Bracket $48.96 1 usually ships 24-40 days
123 192-2487 Bracket $13.77 1 usually ships 24-40 days
