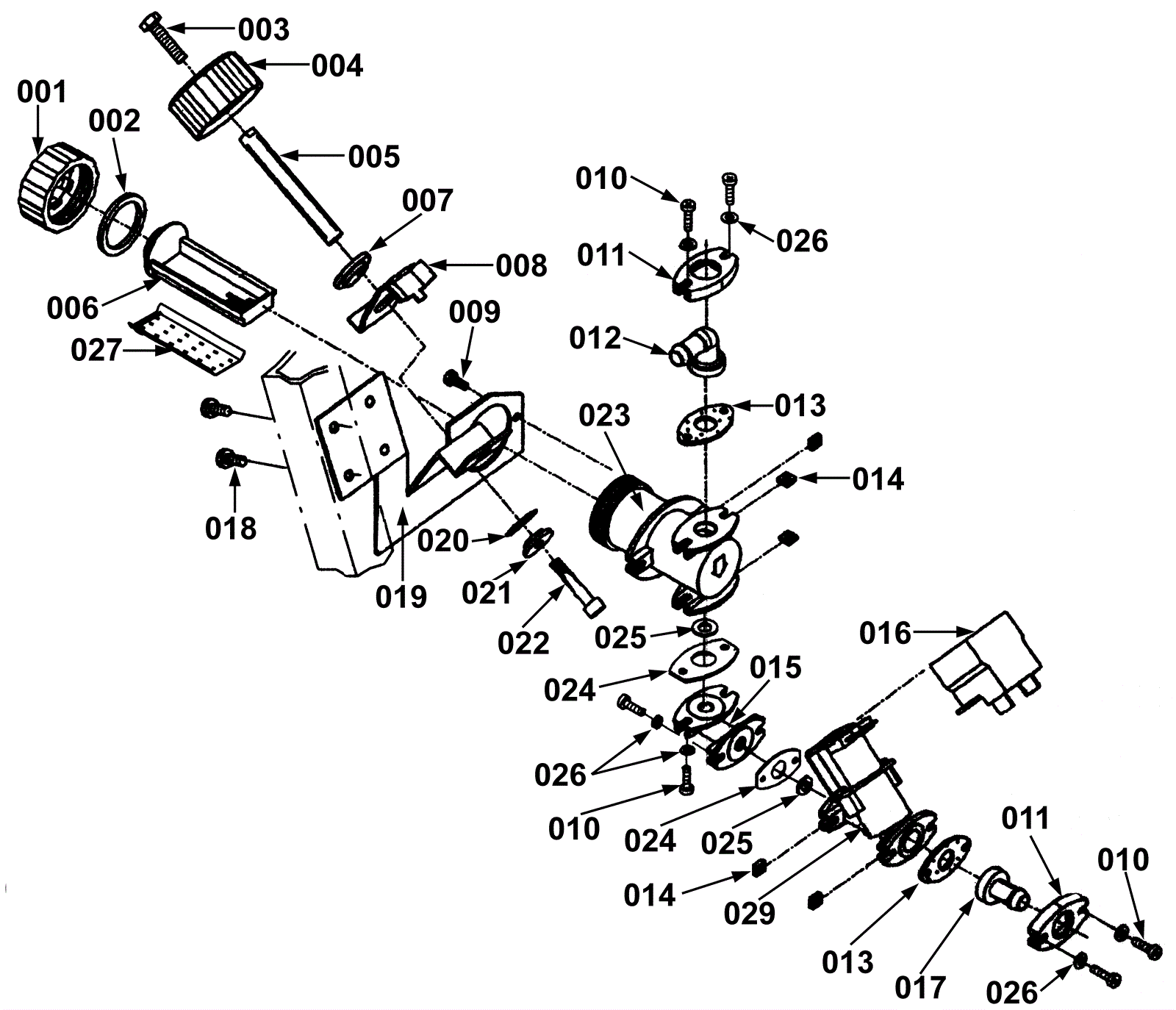

COMBIMAT 1000E Magnetic Valve and Filter Assembly - Series 03

#PartDescriptionPriceReqNotesAvailability
001 292-0082 Filter kit $11.11 1 ships same day
002 292-0082 Filter kit $11.11 1 ships same day
003 192-1285 Screw M6 x 25mm hex head $2.44 1 ships same day
004 192-1338 Knob $14.92 1 usually ships 30-75 days
005 192-1770 Axle $9.45 1 usually ships 1-5 days
006a 292-0082 Filter kit $11.11 1 After 04.2001 ships same day
006b 192-3616 Filter (OBSOLETE) $5.94 1 Before 04.2001 usually ships 30-75 days
007 192-1341 Eccentric ring $5.60 1 usually ships 30-75 days
008 192-2153 Bracket (OBSOLETE) $19.29 1 usually ships 30-75 days
009 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 usually ships 30-75 days
010 192-0912 Screw M4 x 16mm raised head $2.44 8 ships same day
011 192-0911 Flange $2.56 2 ships same day
012 192-0916 Angled nipple $9.41 1 usually ships 30-75 days
013 192-0914 Gasket $2.44 2 ships same day
014 192-0915 Nut M4 square $3.30 10 ships same day
015 192-1684 Angled flange $6.23 1 usually ships 30-75 days
016 192-2602 Cap $7.15 1 usually ships 30-75 days
017 192-0913 Nipple $3.10 1 usually ships 30-75 days
018 192-0162 Screw M5 x 8 self tapping forming $2.88 2 ships same day
019 192-3698 Bracket (OBSOLETE) $62.60 1 usually ships 1-5 days
020 192-1344 Wave washer $6.42 1 ships same day
021 192-1345 Washer $5.64 1 usually ships 30-75 days
022 192-1156 Screw M6 x 30mm socket head cap $5.32 1 usually ships 30-75 days
023 192-0910 Filter housing $6.67 1 ships same day
024a 192-1270 Intermediate plate $2.44 2 After 04.2001 usually ships 30-75 days
024b 192-0914 Gasket $2.44 2 Before 04.2001 ships same day
025 192-1271 Gasket $1.22 2 After 04.2001 ships same day
026 192-0149 Washer $2.44 8 After 04.2001 ships same day
027 192-1272 Filter insert $1.00 1 After 04.2001 ships same day
029 192-4871 120V magnetic valve $116.07 1 ships same day
N/S 192-6992 Filter label $2.44 1 usually ships 30-75 days
N/S 192-6993 Water symbol $2.20 1 usually ships 30-75 days
N/S 192-7553 Brush symbol (OBSOLETE) $1.38 1 After 04.2001 usually ships 1-5 days
