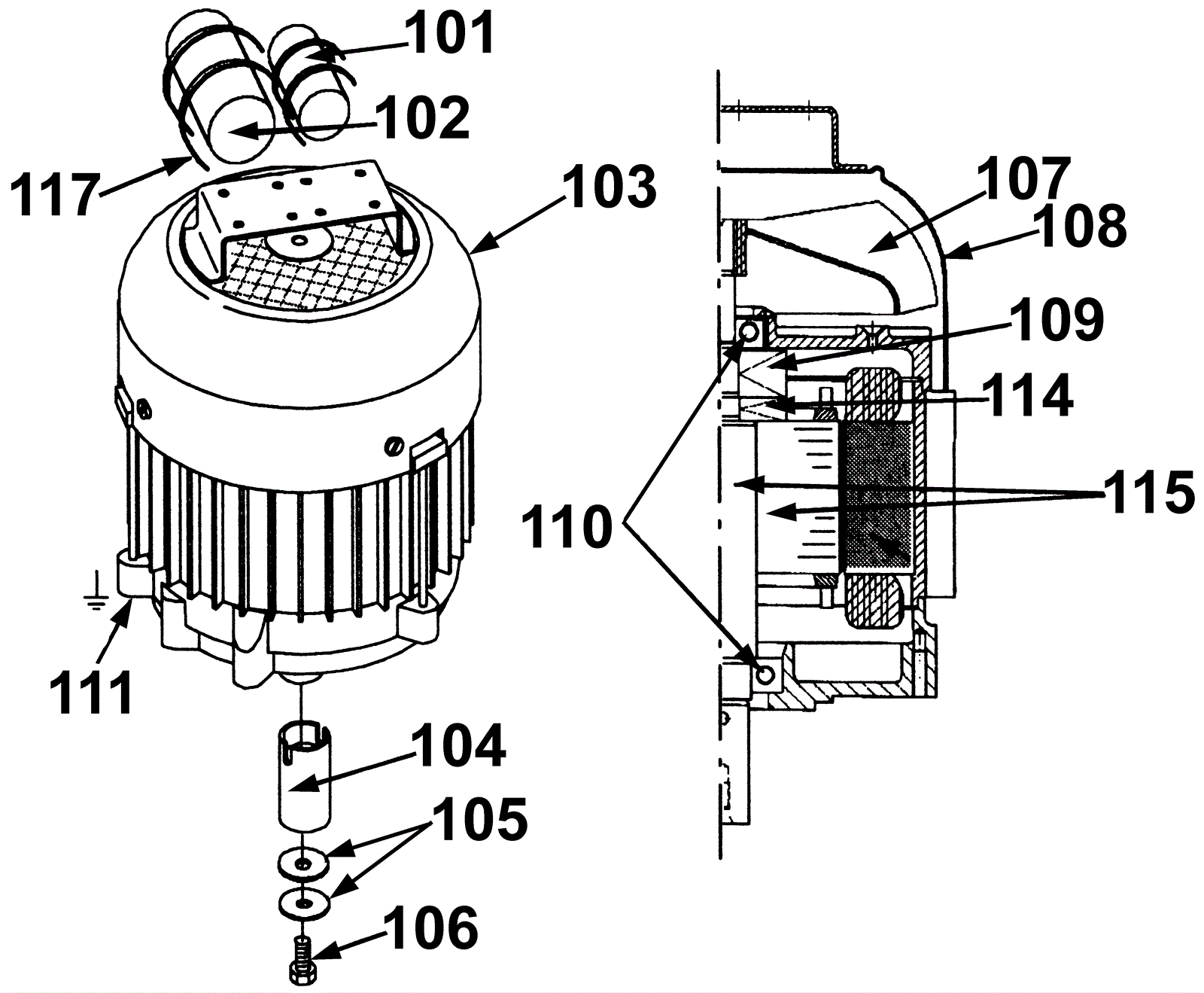

COMBIMAT 1000E Brush Motor Assembly - Series 03

#PartDescriptionPriceReqNotesAvailability
101 192-6714 Start capacitor 300 uF (black) (OBSOLETE) $115.29 1 usually ships 19-25 days
102 192-6227 Run capacitor 40 uF (white) $107.15 1 usually ships 1-5 days
103 N/A Not available Call for price 1 (Motor) usually ships 3-26 days
104 192-5810 Pulley (OBSOLETE) $12.73 1 usually ships 1-5 days
105 192-0965 Washer $2.56 2 ships same day
106 192-4222 Screw M6 x 20 hex head $3.33 1 ships same day
107 192-3564 Fan (OBSOLETE) $55.19 1 usually ships 1-5 days
108 N/A Not available Call for price 1 Motor cap usually ships 3-26 days
109 192-3471 Electric centrifugal switch $56.67 1 usually ships 19-25 days
110 N/A Not available Call for price 2 (Ball bearing) usually ships 3-26 days
111a 192-0880 Washer M5 $0.89 1 ships same day
111b 192-1537 Washer M5 serrated lock $2.56 1 ships same day
111c 192-0162 Screw M5 x 8 self tapping forming $3.03 1 ships same day
114 192-5013 Mechanic centrifugal switch 60 hz (OBSOLETE) $74.48 1 usually ships 1-5 days
115 192-6146 Rotor (OBSOLETE) $1,013.10 1 usually ships 1-5 days
117a 192-0794 Cable tie $0.89 - ships same day
117b 192-0102 7 3/4 inch cable tie $2.56 - usually ships 19-25 days
