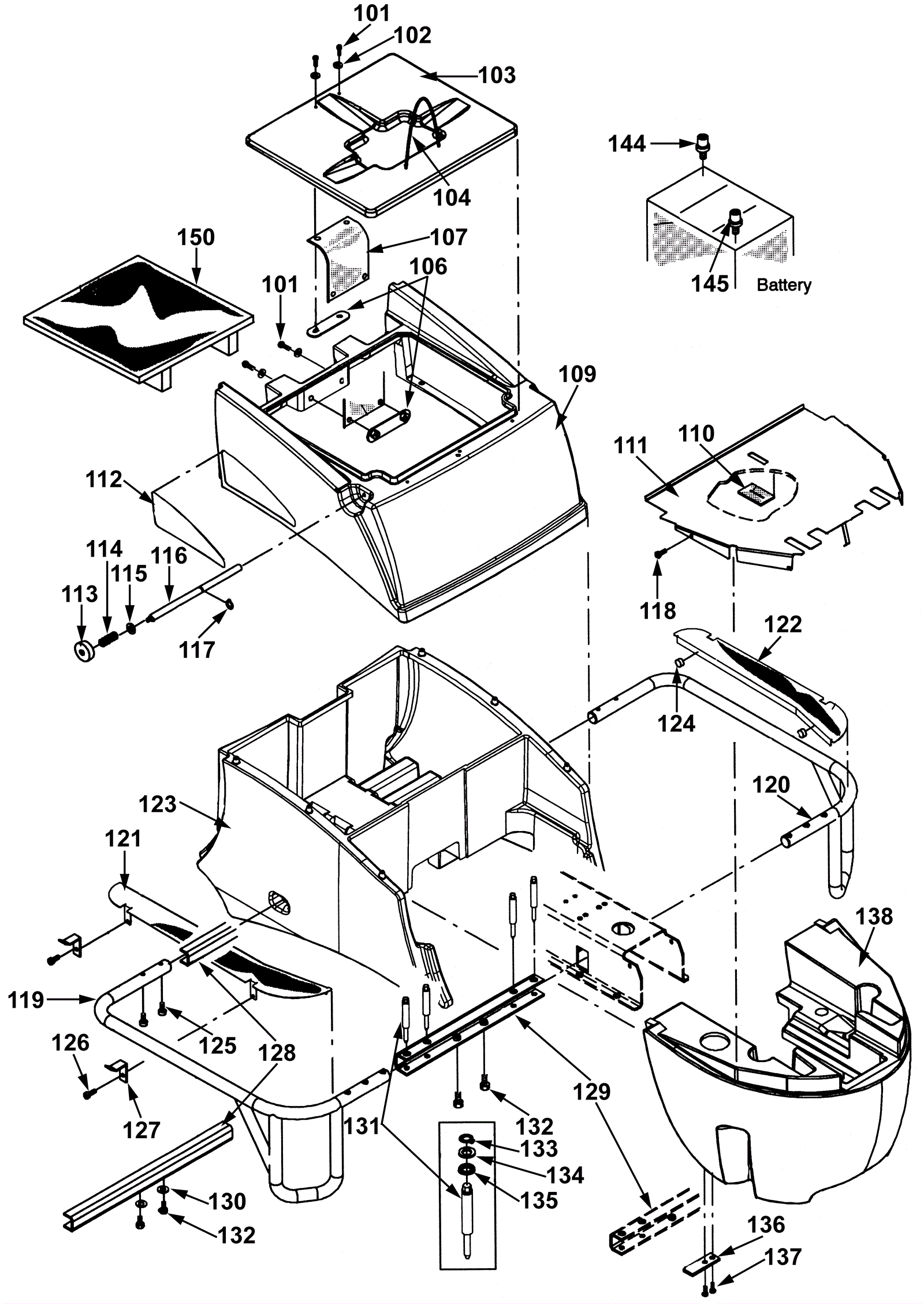

COMBIMATSWINGO3500 Battery Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0912 Screw M4 x 16mm raised head $2.44 4 ships same day
102 192-0149 Washer $2.44 4 ships same day
103 192-1928 Battery cover $178.83 1 usually ships 30-75 days
104 192-0714 Cord (sold by the inch) $2.44 10 in ships same day
106 192-5559 Plate $13.26 2 ships same day
107 192-6156 Rubber plate $7.03 1 usually ships 30-75 days
109 192-4273 Hood $542.37 1 usually ships 30-75 days
110 192-5755 Protection $4.52 1 usually ships 30-75 days
111 192-3818 Foot board $352.65 1 ships same day
112a 192-3246 Swingo 2500 decal $9.11 1 (2500) usually ships 30-75 days
112b 192-3247 Swingo 3500 decal $69.01 1 (3500) usually ships 1-5 days
113 192-4674 Emergency switch off knob $25.04 1 ships same day
114 192-5681 Pressure spring 10-1/2 x 42-29/32 $5.57 1 ships same day
115 192-7424 Washer 8.4/20 $2.44 1 usually ships 30-75 days
116 192-1888 Bar (OBSOLETE) $26.69 1 usually ships 30-75 days
117 192-2779 Snap ring $4.47 1 ships same day
118 192-0968 Screw KA 60 x 16 $4.40 4 ships same day
119 192-5782 Right hand protection profile $409.38 1 usually ships 30-75 days
120 192-5781 Left hand protection profile $409.38 1 usually ships 30-75 days
121 192-3820 Right hand foot board $163.37 1 (3500) usually ships 1-5 days
122 192-3819 Left hand foot board $163.37 1 (3500) usually ships 1-5 days
123 192-1930 Battery housing $595.39 1 usually ships 1-5 days
124 192-6767 Stopple $12.09 4 usually ships 1-5 days
125 192-0278 Screw M8 x 25mm socket head $0.89 4 ships same day
126 192-0289 Screw M6 x 10mm socket head $2.44 4 ships same day
127 192-2188 Bracket $5.45 4 usually ships 1-5 days
128 192-7097 Tie bar $70.82 1 usually ships 1-5 days
129 192-7096 Tie bar $63.07 1 usually ships 1-5 days
130 192-0079 Washer $0.89 4 ships same day
131 192-2725 Centering screw $16.85 4 usually ships 1-5 days
132 192-0078 Screw M8 x 16mm socket head $2.44 4 ships same day
133 192-1090 Retaining ring $2.44 4 usually ships 1-5 days
134 192-7412 Washer 15/28 $3.00 4 usually ships 30-75 days
135 192-6165 Rubber disc 28 x 13-1/2 x 4 $2.44 4 usually ships 30-75 days
136 192-2189 Bracket $4.84 2 usually ships 1-5 days
137 192-0968 Screw KA 60 x 16 $4.40 4 ships same day
138 192-3859 Front cover $507.72 1 usually ships 1-5 days
144 192-7082 Positive terminal post $26.94 1 (old style) usually ships 30-75 days
145 192-7081 Negative terminal post (OBSOLETE) $14.77 1 (old style) usually ships 1-5 days
150 192-9356 Battery tray $59.37 1 usually ships 30-75 days
N/S 192-5895 Quick adhesive F. plastic and gum $218.14 1 usually ships 1-5 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
