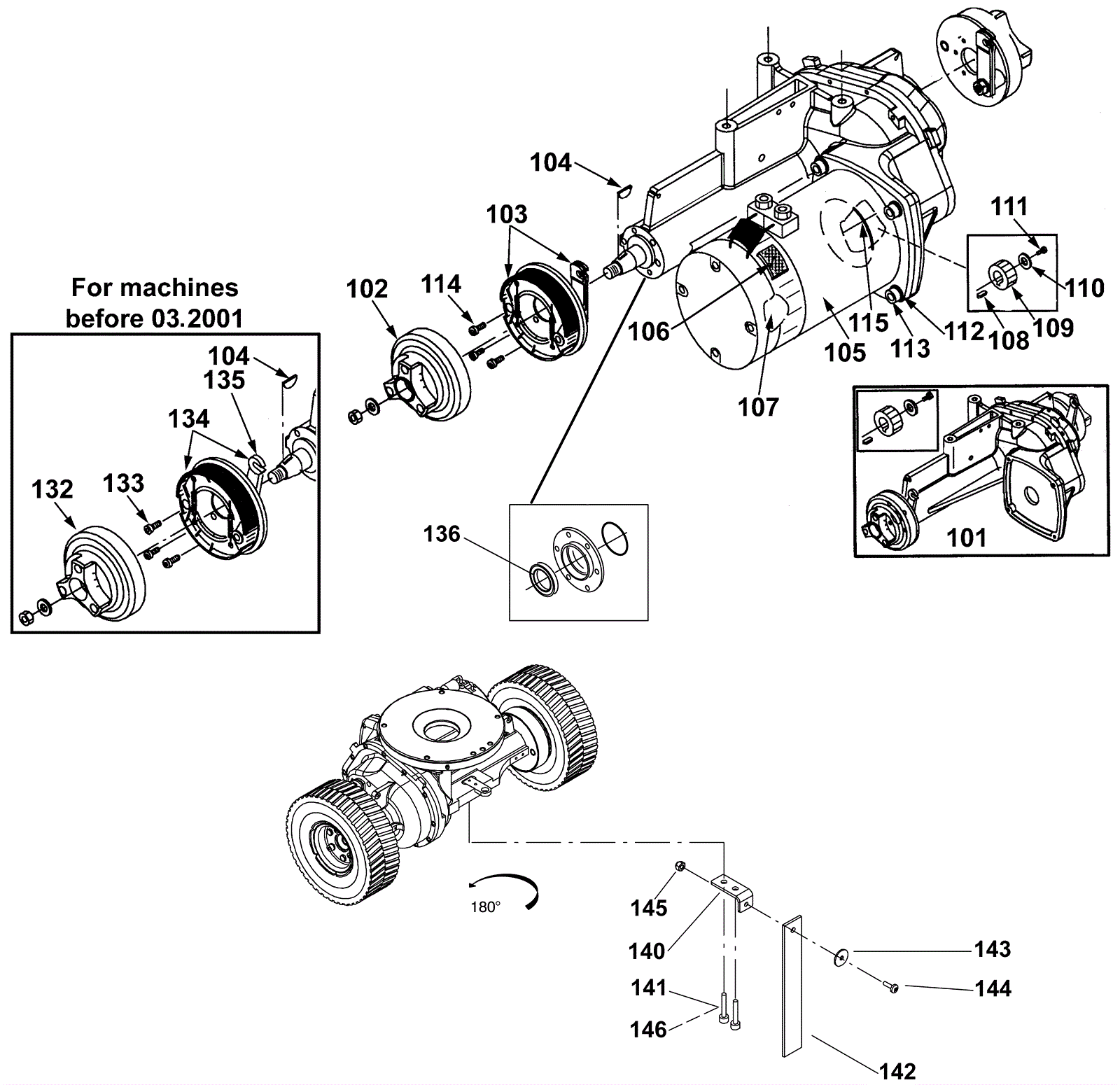

COMBIMATSWINGO3500 Motor Gear Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-4039 Gear with brakes $2,930.40 1 usually ships 30-75 days
102 192-4535 Hub $365.86 2 usually ships 30-75 days
103 192-2236 Brake $527.69 1 usually ships 30-75 days
104 192-7542 Woodruff key 6 x 9 $2.44 2 ships same day
105 192-5036 Motor $1,235.97 1 usually ships 30-75 days
106 192-0476 Collar with clamp $21.79 1 ships same day
107 192-0266 Carbon brush (pkg of 4) $124.74 1 usually ships 30-75 days
108 192-4649 Key 5/5 x 14 $5.20 1 usually ships 1-5 days
109 192-7130 Gear $326.25 1 usually ships 1-5 days
110 192-0269 Washer $2.44 1 usually ships 30-75 days
111 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
112 192-0496 Washer M10 $2.44 4 ships same day
113 192-6474 Screw M10 x 30mm socket head cap $2.44 4 usually ships 1-5 days
114 192-6479 Screw M5 x 16mm socket head $2.44 12 usually ships 30-75 days
115 192-0282 O-ring $4.96 1 usually ships 30-75 days
132 192-4536 Hub (OBSOLETE) $163.82 2 (before 03.2001) usually ships 1-5 days
133 192-0158 Screw M6 x 20mm socket head cap $0.89 8 (before 03.2001) ships same day
134 192-2235 Brake (OBSOLETE) $820.49 2 (before 03.2001) usually ships 1-5 days
135 192-2241 Brake lever (OBSOLETE) $65.84 1 (before 03.2001) usually ships 1-5 days
136 192-0275 Shaft seal 25 x 35 x 7 $10.99 2 usually ships 30-75 days
140 292-0143 Angle bracket $3.78 1 usually ships 30-75 days
141 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.45 2 ships same day
142 192-9786 Strap $3.12 1 usually ships 30-75 days
143 192-0705 Washer $2.44 1 usually ships 30-75 days
144 192-5921 Screw M4 x 12 raised cheese head $6.23 1 ships same day
145 192-0235 Nut M4 self locking $2.44 1 ships same day
146 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 2 ships same day
N/S 192-3734 Flange puller $221.24 1 usually ships 1-5 days
