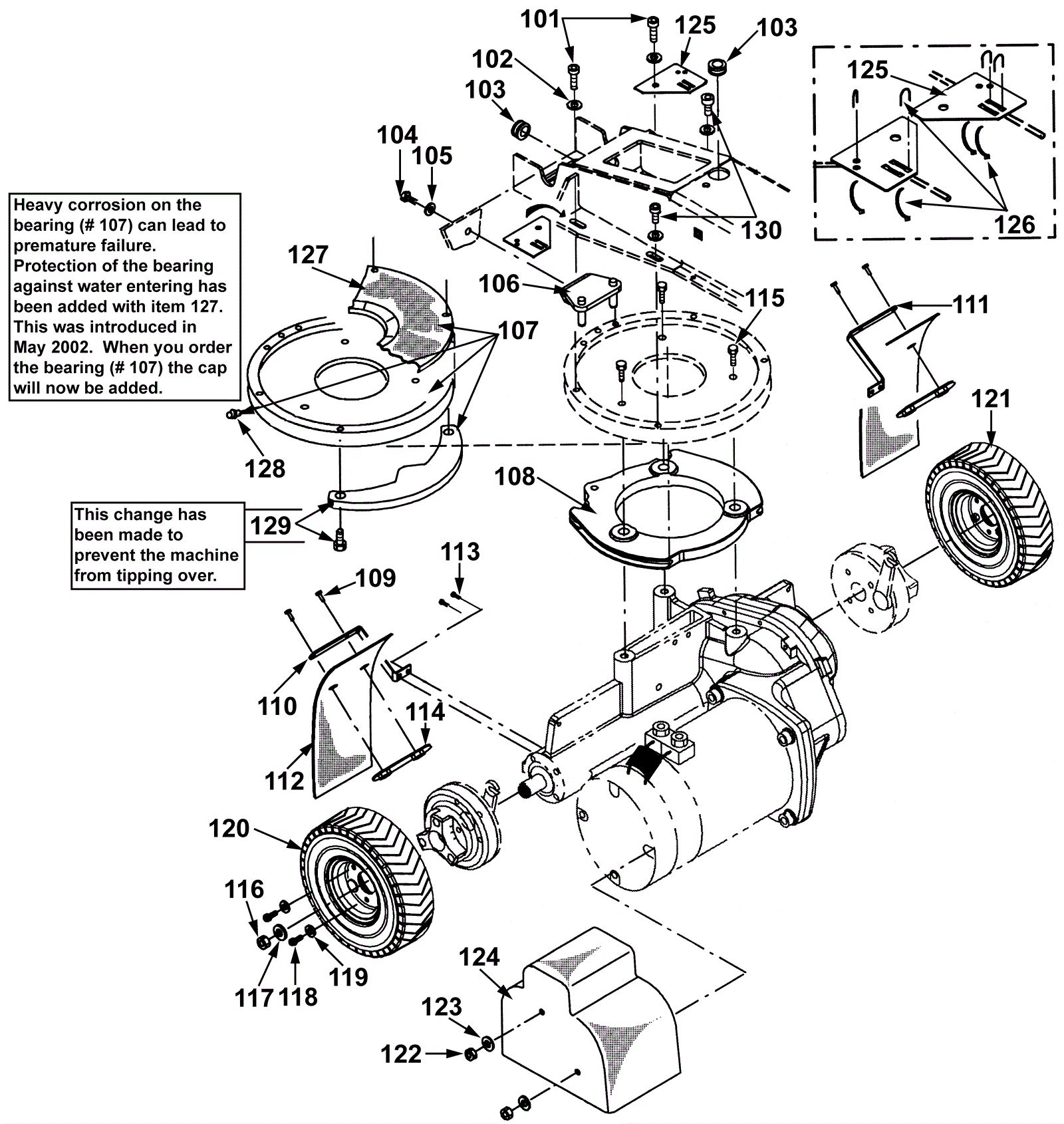

COMBIMATSWINGO3500 Drive Unit Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-6474 Screw M10 x 30mm socket head cap $2.44 2 usually ships 1-5 days
102b 192-8712 Washer 10/20 Call for price 4 (before 10.2002) usually ships 1-5 days
103 192-1082 Grommet $2.44 5 usually ships 30-75 days
104 192-0835 Screw M8 x 35mm hex head $3.74 1 usually ships 30-75 days
105a 192-0079 Washer $0.89 1 (after 07.2003) ships same day
105b 192-0604 Washer M8 $2.44 1 (before 07.2003) ships same day
106 192-6790 Stretching bracket $54.46 1 usually ships 1-5 days
107 192-1938 Swing bearing $1,035.09 1 usually ships 30-75 days
108 192-6747 Steering roller $399.47 1 usually ships 30-75 days
109a 192-5921 Screw M4 x 12 raised cheese head $6.23 4 (after 07.2003) ships same day
109b 192-0148 Screw M4 x 10mm raised cheese head $2.44 4 (before 07.2003) usually ships 30-75 days
110 192-2231 Right hand bracket $7.21 1 usually ships 30-75 days
111 192-2226 Left hand bracket $7.03 1 usually ships 30-75 days
112 192-6203 Rubber shield $5.08 2 usually ships 30-75 days
113 192-0289 Screw M6 x 10mm socket head $2.44 4 ships same day
114 192-5559 Plate $13.26 2 ships same day
115 192-4217 Screw M12 x 25mm hex $2.44 3 usually ships 1-5 days
116 192-6340 Nut M4 self locking $2.44 2 usually ships 30-75 days
117 192-7412 Washer 15/28 $3.00 2 (after 02.2002) usually ships 30-75 days
118 192-0603 Screw hex $4.28 6 usually ships 30-75 days
119 192-1180 Spring washer $2.44 6 usually ships 30-75 days
120a 192-1472 Right hand wheel $384.81 1 usually ships 30-75 days
120b 192-9306 Right hand non-slip wheel (orange) $412.74 1 ships same day
121a 192-1473 Left hand wheel $384.81 1 usually ships 30-75 days
121b 192-9307 Left hand non-slip wheel $412.74 1 usually ships 30-75 days
122 192-0383 Nut M5 hex $0.89 2 ships same day
123 192-0705 Washer $2.44 2 usually ships 30-75 days
124 192-5768 Protection hood $73.88 1 usually ships 30-75 days
125 192-3700 Fixation (OBSOLETE) $12.27 2 (before 2024) usually ships 1-5 days
126 192-0102 7 3/4 inch cable tie $2.44 8 (before 2024) usually ships 30-75 days
127 192-5698 Protection cap $156.73 1 usually ships 1-5 days
128 192-4854 Lubricator nipple $7.69 2 usually ships 30-75 days
129 192-6748 Steering stop assembly $60.93 1 usually ships 30-75 days
130 192-0264 Screw M10 x 20mm socket head cap $5.86 2 usually ships 30-75 days
N/S 292-5102 Driving wheel without profile (red) $522.23 2 (optional - same for left and right) usually ships 30-75 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
