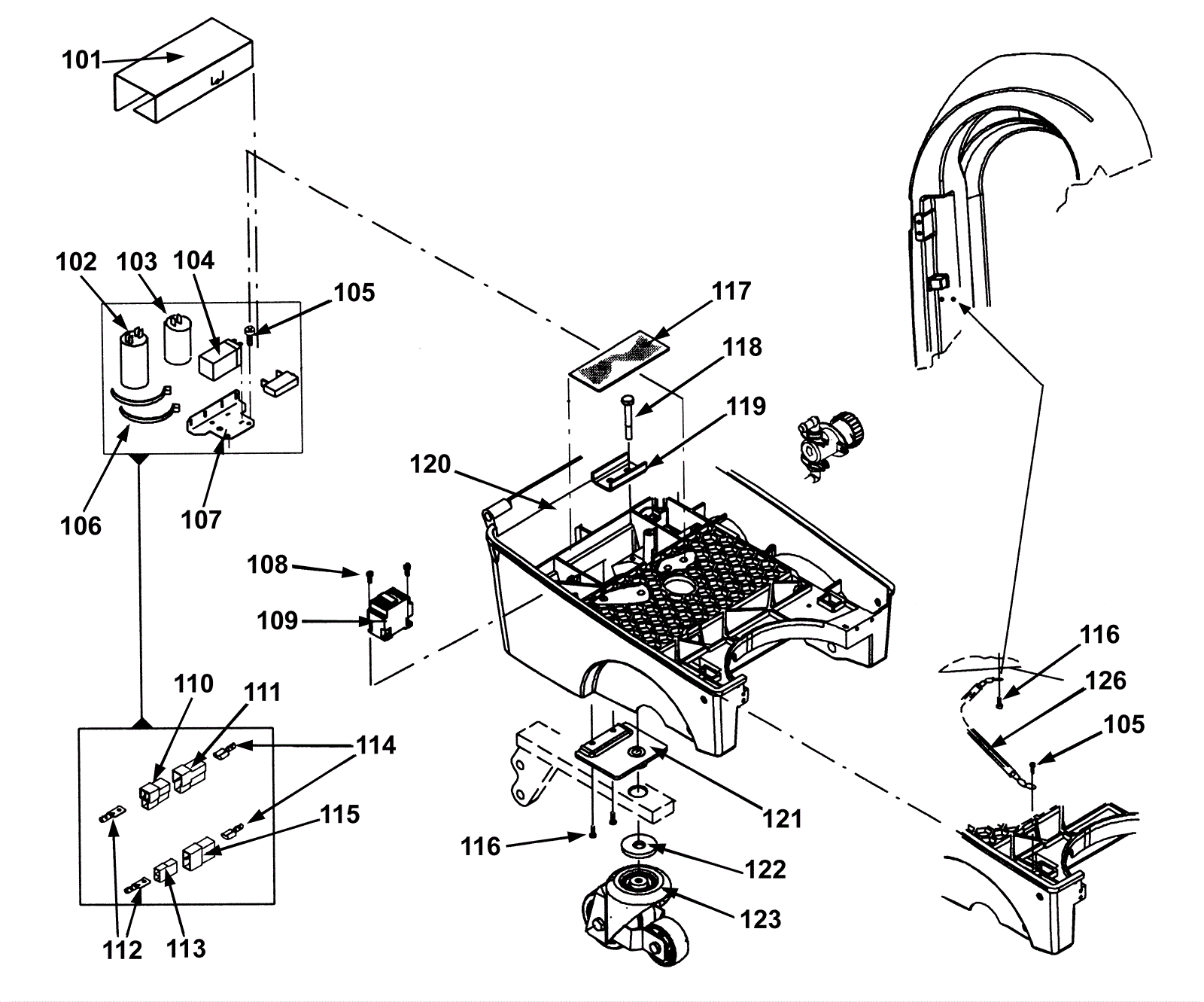

SWINGO 450E Lower Part Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-5784 Protective shield $26.50 1 usually ships 1-5 days
102 192-0665 Run capacitor (white) $11.11 1 Model 7513908 ships same day
103 192-0664 Start capacitor (black) $32.23 1 Model 7513908 ships same day
104 192-0942 Relay $129.38 1 ships same day
105 192-1571 Screw M50 x 16mm $2.44 3 ships same day
106 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
107 292-5142 Support $3.12 1 usually ships 30-75 days
108 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
109 192-2939 Contactor $600.31 2 usually ships 30-75 days
110 192-1388 3 pole plug housing $2.44 1 usually ships 30-75 days
111 192-1387 3 way plug housing $2.44 1 usually ships 30-75 days
112 192-3760 Flat crimp connector $2.44 3 usually ships 30-75 days
113 192-5596 2 pole plug housing $2.44 1 usually ships 30-75 days
114 192-3592 Female plate clip $2.56 3 ships same day
115 192-3759 2 way flat connector housing $5.25 1 usually ships 30-75 days
116 192-1561 Screw 60 x 20 torx head $2.44 3 ships same day
117 192-5555 Plate (OBSOLETE) $2.20 1 usually ships 1-5 days
118 192-4218 Screw M12 x 30mm hex head $2.44 1 ships same day
119 192-1517 Reinforcement plate $3.49 1 usually ships 30-75 days
120 192-2753 Chassis $332.01 1 usually ships 1-5 days
121 192-1958 Bearing plate $46.79 1 usually ships 30-75 days
122 192-7394 Washer M13 $18.56 1 ships same day
123a 192-1521 Caster wheel assembly (brown) $192.12 1 ships same day
123b 192-6380 Caster replacement wheel (brown) (pkg of 2) $133.83 1 (Not a direct replacement for 192-1521. This is a softer wheel for structured floor.) ships same day
126 192-2742 Metal rope $3.00 1 usually ships 1-5 days
