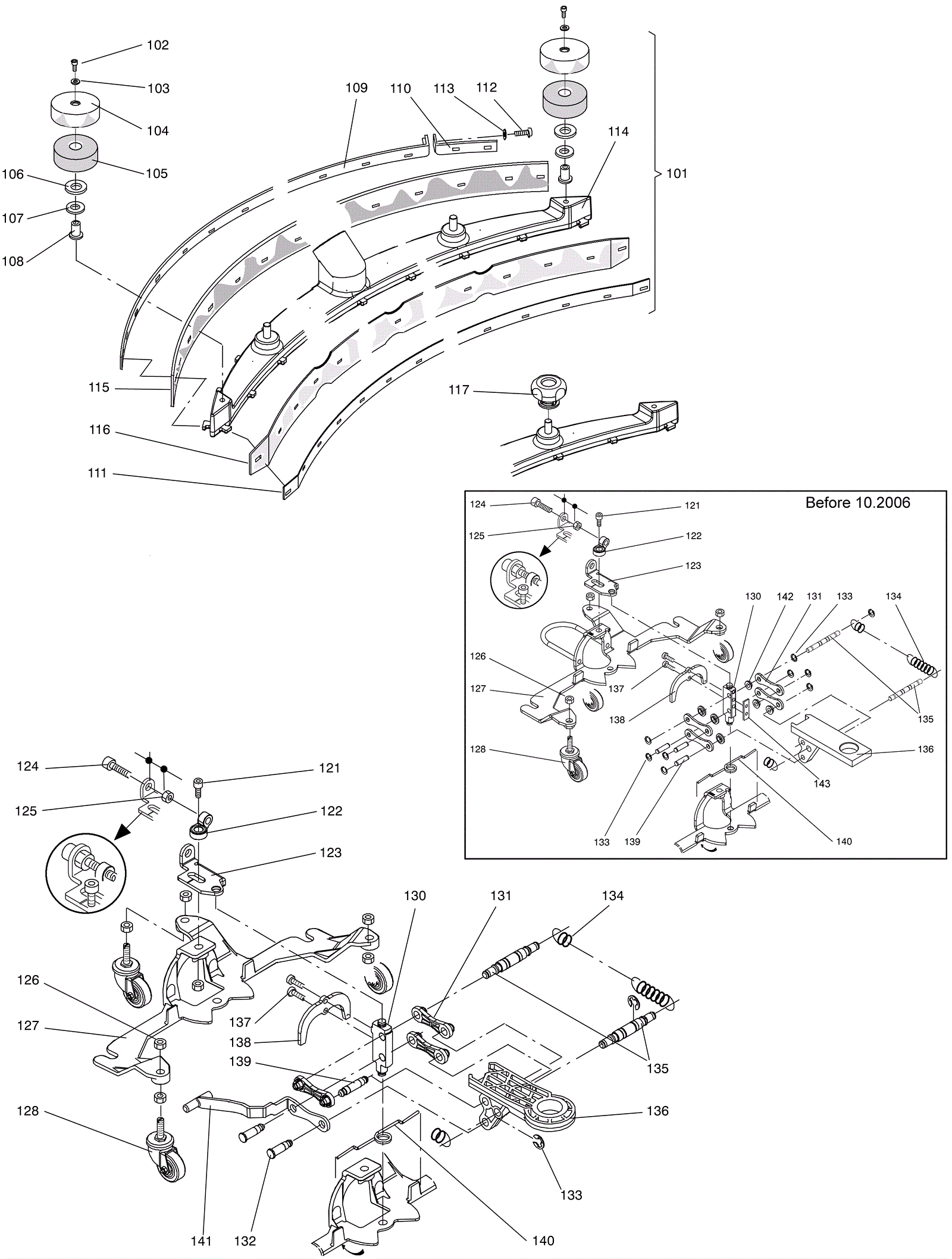

SWINGO 450B Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-6636 Squeegee assembly 27 inch $477.27 1 (includes 102-116) ships same day
102 192-1542 Screw M8 x 50mm socket head cap $4.47 2 ships same day
103 192-0105 Washer M8 $2.44 2 ships same day
104 192-1397 Guide wheel $5.25 2 ships same day
105 192-1544 Weight (OBSOLETE) $14.85 1 usually ships 30-75 days
106 192-3341 Spacer $2.44 2 usually ships 30-75 days
107 192-0515 Leveling disc $2.93 2 usually ships 1-5 days
108 192-1354 Bushing $7.94 2 ships same day
109 192-1547 Long squeegee strap $51.48 1 usually ships 30-75 days
110 192-1548 Short squeegee strap $2.44 1 usually ships 30-75 days
111 192-1467 Front squeegee strap $137.24 1 usually ships 30-75 days
112 192-1003 Screw M5 x 35mm raised cheese head torx $2.44 1 ships same day
113 192-0206 Washer M5 $1.80 1 ships same day
114 192-1468 Squeegee weldment (OBSOLETE) $81.69 1 usually ships 30-75 days
115 192-1549 Squeegee blade 27 inch rear $112.45 1 ships same day
116 192-1486 Squeegee blade 28 inch urethane front $45.42 1 ships same day
117 192-0111 Star knob $18.88 2 ships same day
121 192-6473 Screw M10 x 25mm socket head cap $5.81 1 usually ships 30-75 days
122 192-8910 Adjustable block (OBSOLETE) $12.17 1 usually ships 30-75 days
123 192-1456 Adjusting plate $15.09 1 ships same day
124 192-8911 Screw M10 x 40mm socket head cap $2.44 1 usually ships 30-75 days
125 192-6339 Nut M10 self locking $2.44 1 ships same day
126a 192-1135 Nut M10 hex $2.44 3 (before 10.2006) ships same day
126b 192-8682 Nut M10 hex $2.44 7 (after 11.2006) usually ships 30-75 days
127a N/A Not available Call for price 1 (before 10.2006 - Squeegee bracket) usually ships 3-26 days
127b 192-9587 Squeegee bracket $127.18 1 (after 11.2006) usually ships 30-75 days
128 292-8548 Caster wheel $43.59 3 ships same day
130a 192-1464 Axle $29.74 1 (before 10.2006) usually ships 30-75 days
130b 192-9588 Axle $32.48 1 (after 11.2006) usually ships 1-5 days
131a 192-1712 Bracket (OBSOLETE) $5.62 4 (before 10.2006) usually ships 30-75 days
131b 192-9589 Bracket $2.76 3 (after 11.2006) usually ships 30-75 days
132 192-9590 Bolt $8.67 2 usually ships 30-75 days
133 192-2779 Snap ring $4.47 14 ships same day
134 192-7073 Tension spring $4.28 2 usually ships 30-75 days
135a 192-1764 Axle (OBSOLETE) $8.43 2 (before 10.2006) usually ships 30-75 days
135b 192-9591 Axle $9.11 2 (after 11.2006) usually ships 30-75 days
136a 192-1462 Bracket $48.96 1 (before 10.2006) usually ships 30-75 days
136b 192-9415 Bracket $19.68 1 (after 11.2006) usually ships 30-75 days
137b 192-9592 Screw M6 x 12mm self threading $2.88 2 (after 11.2006) usually ships 30-75 days
138 192-1463 Gripper fork (OBSOLETE) $44.76 1 usually ships 30-75 days
139a 192-1766 Axle $5.32 3 (before 10.2006) ships same day
139b 192-9593 Axle $8.25 1 (after 11.2006) usually ships 30-75 days
140 192-1460 Spring $3.41 1 ships same day
141 192-9594 Operating lever $5.86 1 usually ships 30-75 days
142 192-6448 Slide bearing $6.42 8 (before 10.2006) ships same day
143 192-5581 Plate (OBSOLETE) $9.06 1 (before 10.2006) usually ships 30-75 days
