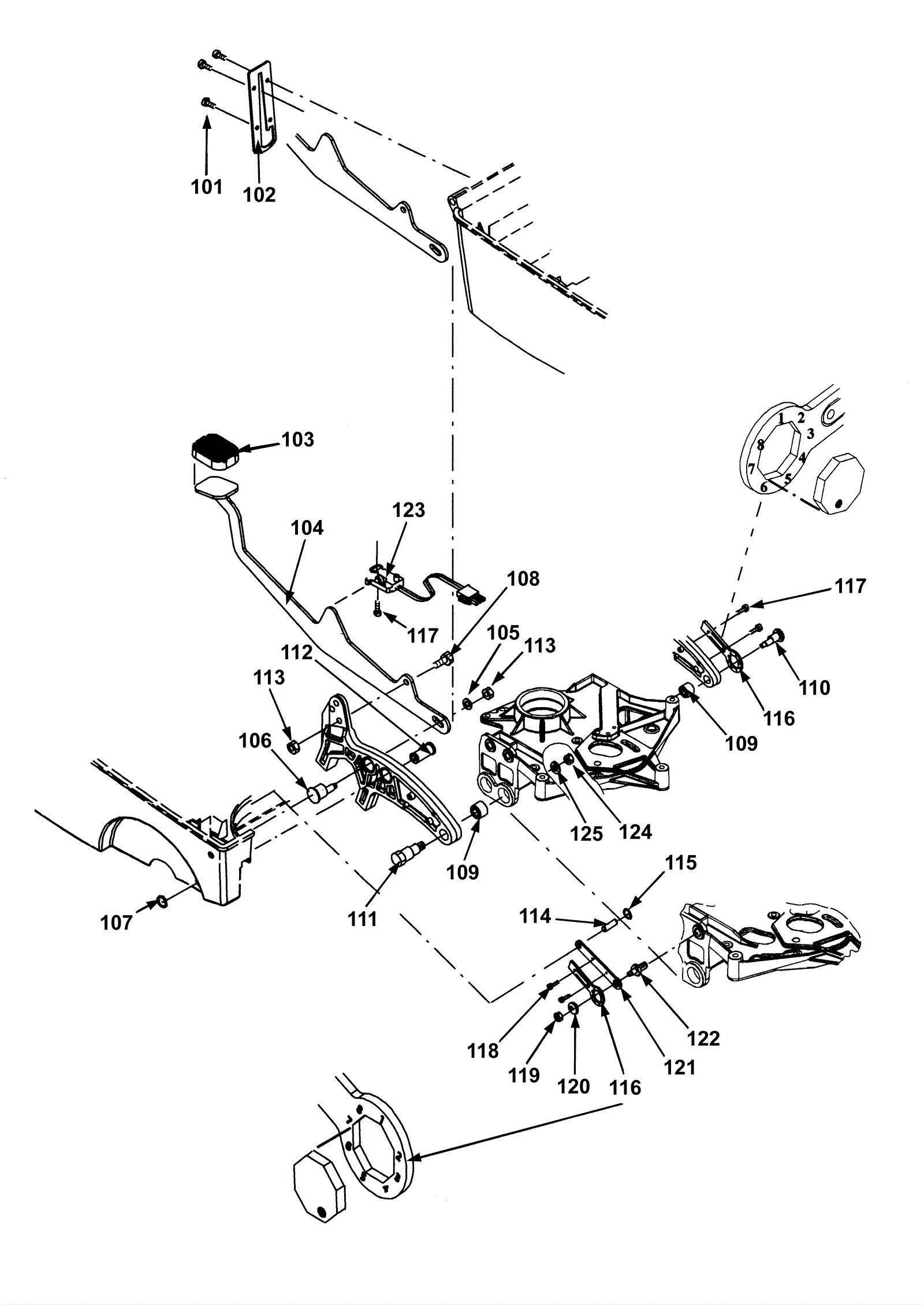

SWINGO 450B Tool Lowering Unit Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1571 Screw M50 x 16mm $2.44 4 ships same day
102 192-4018 Bracket $8.25 1 usually ships 30-75 days
103 192-1096 Pedal pad $25.76 1 usually ships 30-75 days
104 192-3821 Foot lever $44.28 1 usually ships 30-75 days
105 192-0105 Washer M8 $2.44 3 ships same day
106 192-3441 Eccentric shaft (round head) $26.62 1 usually ships 1-5 days
107 192-0075 Retaining ring $5.81 2 ships same day
108 192-0153 Screw M8 x 20mm hex head $0.89 1 ships same day
109 192-1953 Bushing $18.93 2 ships same day
110 192-3441 Eccentric shaft (round head) $26.62 1 usually ships 1-5 days
111 192-2084 Bolt $22.72 1 ships same day
112 192-1775 Axle $8.99 2 ships same day
113 192-0347 Nut M8 hex $0.89 2 ships same day
114 192-1774 Axle $5.81 1 usually ships 30-75 days
115 192-0086 Snap ring $2.44 1 ships same day
116 192-4831 Locking lever $2.52 2 ships same day
117 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
118 192-6347 Screw M4 x 10mm self tapping form $2.44 2 usually ships 30-75 days
119 192-0563 Nut M6 self-locking $2.44 1 ships same day
120 192-3437 Spacer $9.28 1 ships same day
121 192-4763 Lever $2.44 1 usually ships 30-75 days
122 192-2085 Bolt $9.35 1 ships same day
123 192-4799 Limit switch $64.35 1 ships same day
124 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
125 192-0604 Washer M8 $2.44 2 ships same day
