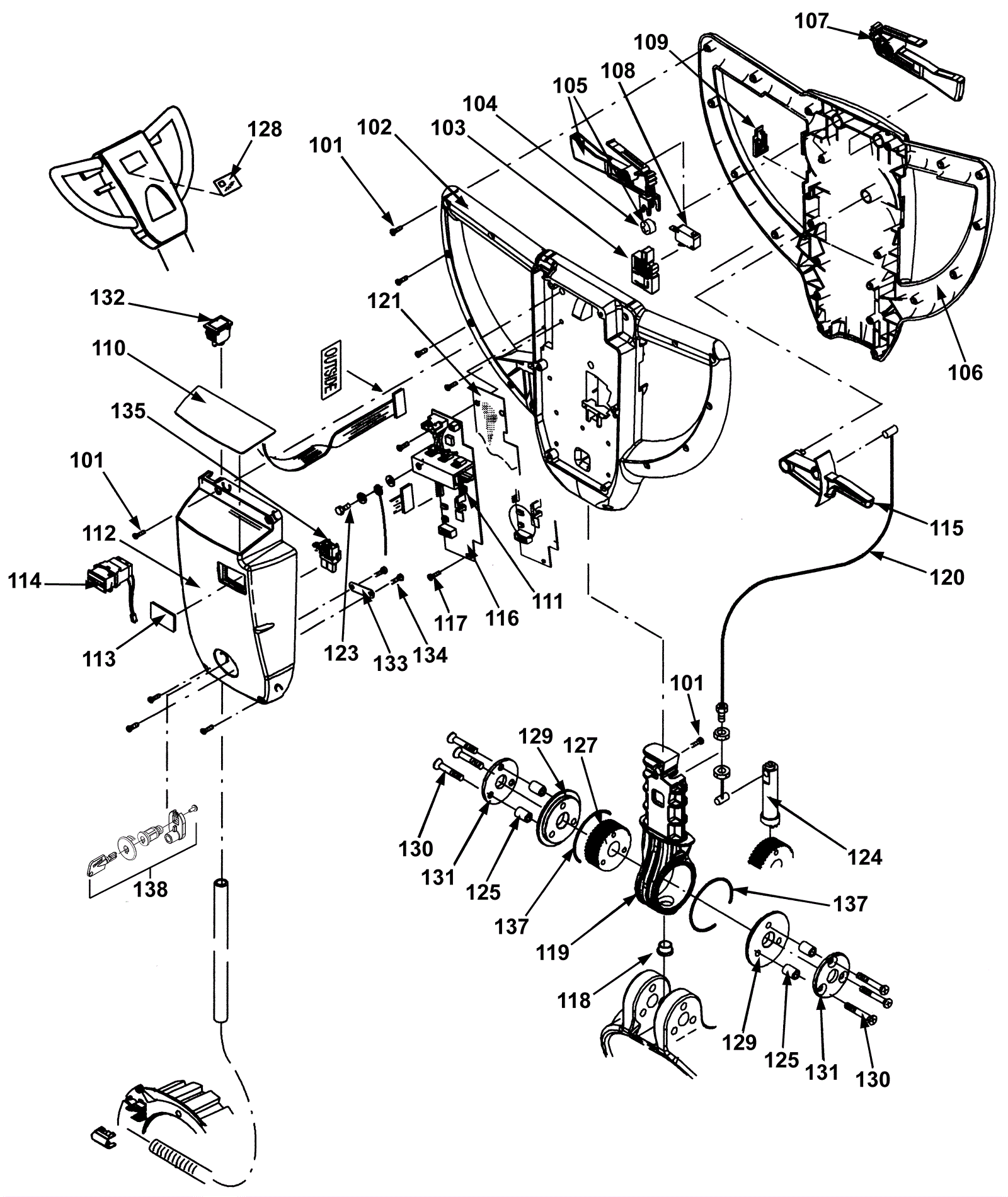

SWINGO 450B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0539 Screw 50 x 20 $2.44 28 ships same day
102 192-0552 Rear handle $34.99 1 ships same day
103 192-6950 Switch holder $4.76 1 usually ships 30-75 days
104 192-0572 Roller $2.44 1 ships same day
105 192-0570 Left hand switch lever with roller $7.77 1 ships same day
106 192-0571 Front handle $32.92 1 ships same day
107 192-6960 Right hand switch lever $7.65 1 usually ships 1-5 days
108 192-0681 Microswitch $13.51 1 ships same day
109 192-0567 Cover $2.44 1 ships same day
110 192-2951 Control decal $294.24 1 usually ships 30-75 days
111 192-1589 Fuse (slow blow) $2.44 1 ships same day
112 192-3069 Circuit board housing $30.04 1 usually ships 30-75 days
113 192-3548 False cover $4.10 1 ships same day
114 192-7546 Hour meter $145.67 1 usually ships 1-5 days
115 192-0553 Disengaging lever $3.00 1 ships same day
116 192-3502 Circuit board $625.83 1 ships same day
117 192-0460 Screw 30 x 10 $2.44 3 usually ships 30-75 days
118 192-6774 Plug $2.44 1 usually ships 1-5 days
119 192-1715 Articulation $41.83 1 usually ships 1-5 days
120 192-2130 Bowden cable $49.32 1 usually ships 30-75 days
121 192-8629 Isolation shield $6.67 1 usually ships 1-5 days
123a 192-0506 Screw M6 x 12mm socket head $2.44 1 usually ships 30-75 days
123b 192-0179 Washer M6 serrated lock $2.44 1 usually ships 30-75 days
123c 192-0200 Washer M6 $3.12 1 ships same day
124 192-4814 Handle lock $26.28 1 usually ships 30-75 days
125 192-2367 Bushing $3.30 6 usually ships 1-5 days
126 192-1765 Axle (OBSOLETE) $14.45 1 usually ships 1-5 days
127 192-7128 Gear $98.95 1 usually ships 1-5 days
128 192-4708 Swingo decal $3.30 1 usually ships 1-5 days
129 192-8810 Retaining plate $12.45 2 ships same day
130 192-2984 Screw M6 x 50mm countersunk head cap $2.44 6 usually ships 1-5 days
131 192-9963 Cover disc $7.94 1 usually ships 30-75 days
132 192-6772 Plug $2.44 1 usually ships 1-5 days
133 192-2788 Clamp $2.44 1 usually ships 1-5 days
134 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
135 192-5593 2-way plug $6.18 1 usually ships 1-5 days
137 192-8912 O-ring $2.44 2 usually ships 30-75 days
138a 192-4658 Key switch assembly (OBSOLETE) $48.14 1 (includes 138b) usually ships 30-75 days
138b 292-5254 Steel key $3.78 1 ships same day
138c 292-9039 Key set (OBSOLETE) $67.16 1 usually ships 30-75 days
N/S 192-0102 7 3/4 inch cable tie $2.44 1 usually ships 30-75 days
N/S 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 usually ships 30-75 days
N/S 192-6014 Reset key set $313.24 (used to reset service lights) usually ships 30-75 days
N/S 192-8626 Torsion spring (OBSOLETE) $1.17 1 usually ships 1-5 days
