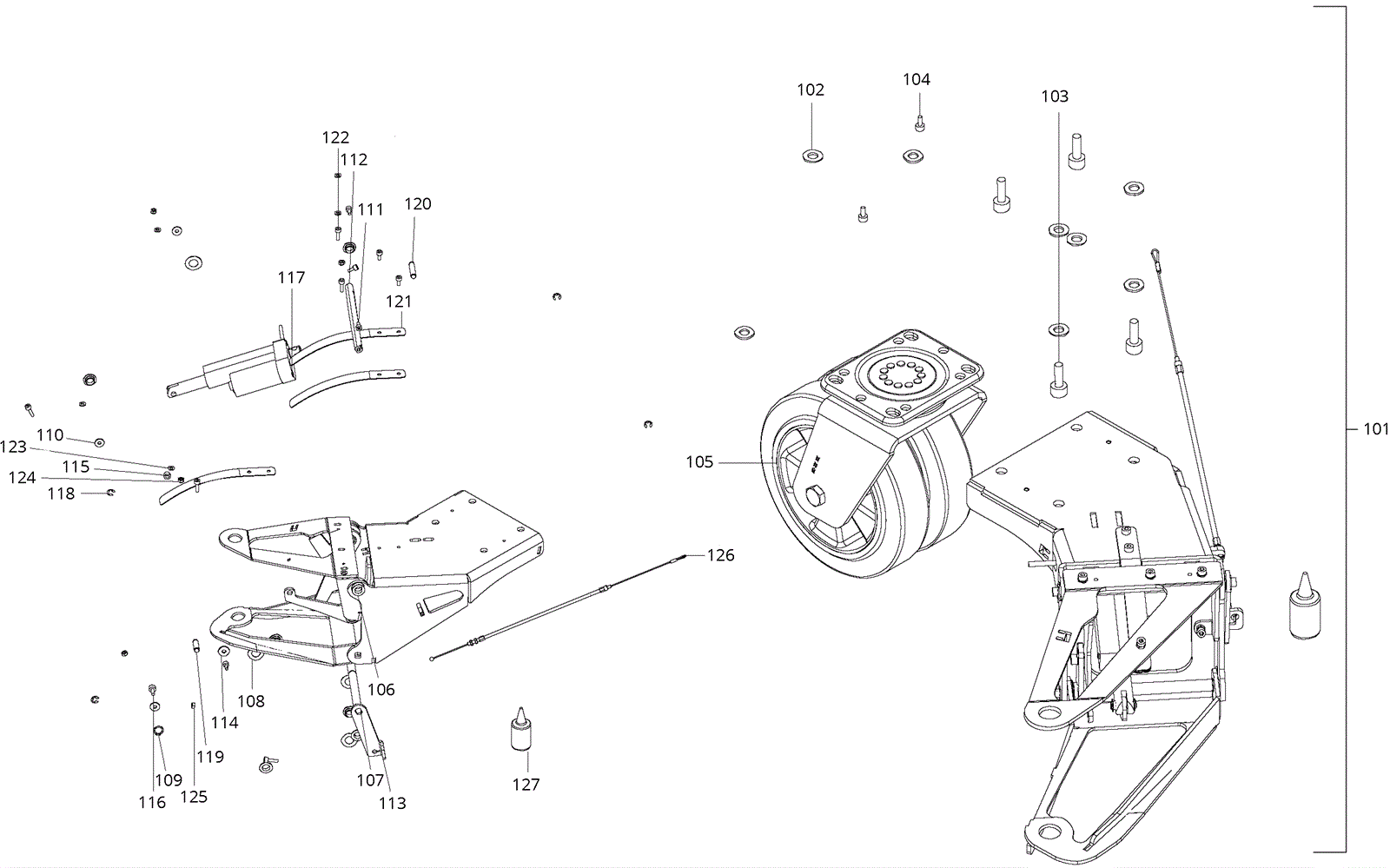

# | Part | Description | Price | Req | Notes | Availability |
101 |
292-0779
|
Lowering device assembly |
$1,401.29
|
1 |
(includes 102-127) |
usually ships 10-39 days |
102 |
192-0496
|
Washer M10 |
$2.44
|
8 |
|
ships same day |
103 |
192-6473
|
Screw M10 x 25mm socket head cap |
$5.28
|
4 |
|
ships same day |
104 |
192-0407
|
Screw M5 x 10mm socket head cap |
$0.89
|
2 |
|
ships same day |
105 |
192-8741
|
Caster wheel |
$352.54
|
1 |
|
ships same day |
106 |
192-9790
|
Slide bearing |
$2.22
|
8 |
|
ships same day |
107 |
292-0772
|
Axle |
$50.62
|
1 |
|
usually ships 10-39 days |
108 |
192-3341
|
Spacer |
$2.22
|
5 |
|
usually ships 10-39 days |
109 |
192-6037
|
Retaining ring |
$0.89
|
1 |
|
ships same day |
110 |
192-0091
|
Washer |
$0.89
|
3 |
|
ships same day |
111 |
192-0407
|
Screw M5 x 10mm socket head cap |
$0.89
|
6 |
|
ships same day |
112 |
292-0773
|
Axle |
$54.83
|
1 |
|
usually ships 10-39 days |
113 |
292-0774
|
Lever |
$10.83
|
1 |
|
usually ships 10-39 days |
114 |
192-0216
|
Washer |
$1.22
|
1 |
|
ships same day |
115 |
192-0897
|
Washer |
$3.95
|
1 |
|
usually ships 10-39 days |
116 |
192-0506
|
Screw M6 x 12mm socket head |
$2.44
|
1 |
|
usually ships 10-39 days |
117 |
292-0775
|
24V linear drive |
$531.22
|
1 |
|
usually ships 10-39 days |
118 |
192-0840
|
Snap ring |
$2.44
|
4 |
|
ships same day |
119 |
192-9183
|
Axle |
$8.01
|
1 |
|
ships same day |
120 |
292-0776
|
Axle |
$29.86
|
1 |
|
usually ships 10-39 days |
121 |
292-0777
|
Flat spring |
$15.98
|
3 |
|
usually ships 10-39 days |
122 |
192-6479
|
Screw M5 x 16mm socket head |
$2.22
|
5 |
|
usually ships 10-39 days |
123 |
192-0880
|
Washer M5 |
$0.89
|
6 |
|
ships same day |
124 |
192-0340
|
Nut M5 hex self locking |
$1.45
|
3 |
|
ships same day |
125 |
192-0383
|
Nut M5 hex |
$0.89
|
2 |
|
ships same day |
126 |
292-0778
|
Bowden cable |
$20.05
|
1 |
|
usually ships 10-39 days |
127 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
$55.00
|
1 |
|
ships same day |
