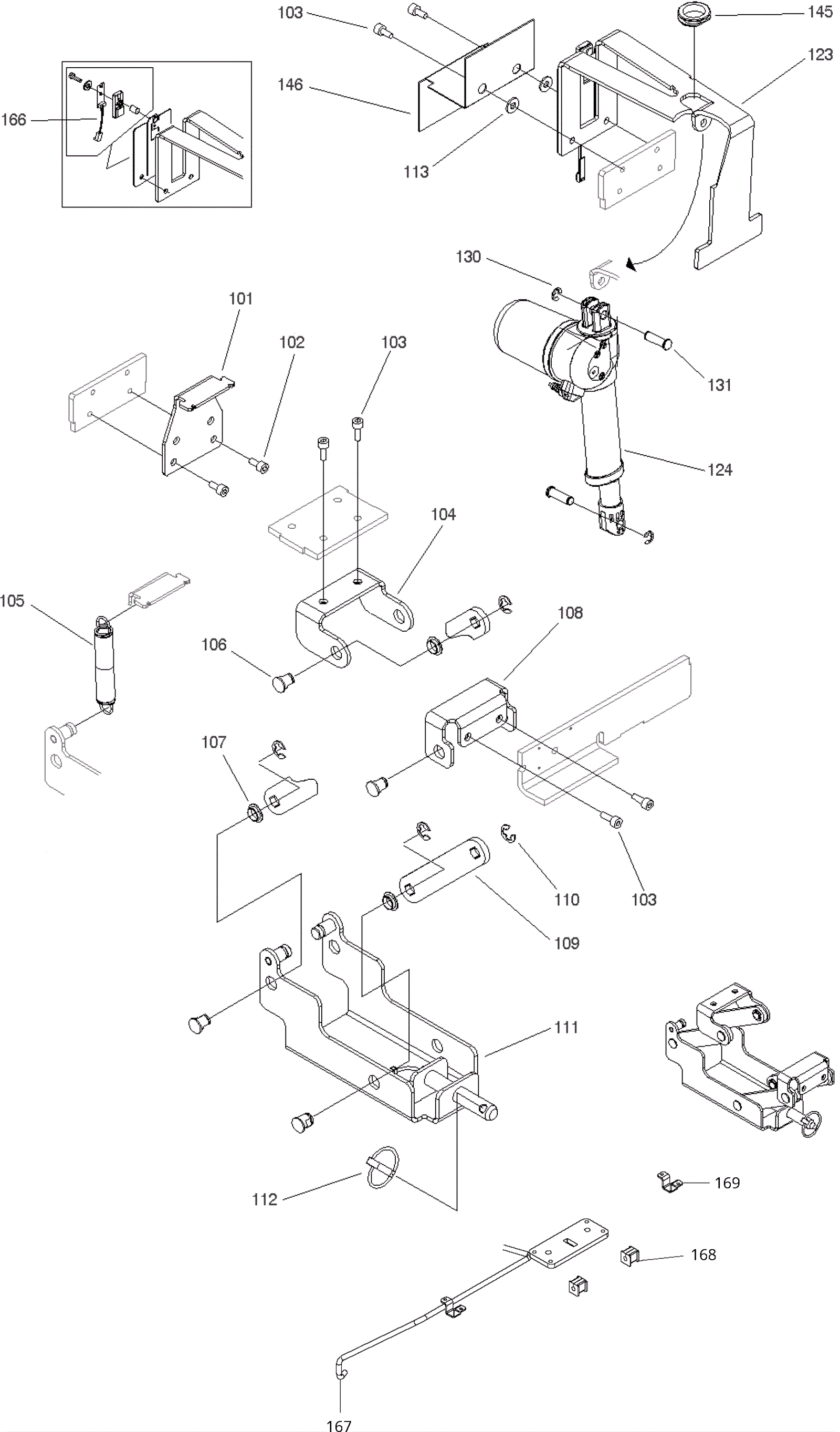

SWINGO XP Tool Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-0386 Holder $17.95 1 usually ships 1-5 days
102 192-0078 Screw M8 x 16mm socket head $2.56 4 ships same day
103 192-0243 Screw M8 x 20mm socket head $2.56 6 usually ships 17-21 days
104 292-0387 Holder $21.02 1 usually ships 1-5 days
105 292-0388 Tension spring $11.29 2 ships same day
106 192-9766 Bolt $15.85 8 ships same day
107 192-9351 Grommet $2.56 8 ships same day
108a 292-0389 Holder $23.93 1 usually ships 1-5 days
108b 192-9353 Adjustment block $39.11 1 usually ships 17-21 days
109a 192-9771 Console bracket $15.00 4 usually ships 17-21 days
109b 292-0413 Plate $30.98 1 usually ships 1-5 days
110 192-2776 Snap ring $2.56 8 ships same day
111a 292-0390 Support $156.28 1 usually ships 1-5 days
111b 292-0408 Support $71.74 1 usually ships 17-21 days
112 192-1148 Pin with ring $2.89 1 usually ships 17-21 days
113 192-0647 Washer $5.26 2 ships same day
123 192-9177 Spring bracket with hall sensor $422.28 1 (includes 103, 113, 145, 166) ships same day
124 192-9178 Brush actuator $370.21 1 usually ships 17-21 days
130 192-0086 Snap ring $2.56 2 ships same day
131 192-9182 Bolt $7.05 2 ships same day
145 192-1082 Grommet $2.56 1 usually ships 17-21 days
146 192-9189 Protection shield $25.47 1 usually ships 1-5 days
166 192-9320 Ribbon cable $5.76 1 ships same day
167 192-9194 Bracket $150.77 1 usually ships 17-21 days
168 192-9195 Rubber bearing $2.56 2 usually ships 17-21 days
169 192-9196 Retaining clip $2.64 2 usually ships 17-21 days
N/S 192-0912 Screw M4 x 16mm raised head $2.56 1 (included with 123) ships same day
N/S 192-0235 Nut M4 self locking $2.56 1 (included with 123) ships same day
N/S 292-0407 Chassis $1,198.82 1 usually ships 1-5 days
N/S 192-2981 Screw M6 x 20 head cap counters $4.10 4 usually ships 1-5 days
N/S 192-7421 Washer $2.56 4 usually ships 17-21 days
N/S 192-0563 Nut M6 self-locking $2.56 4 ships same day
N/S 192-9352 Screw M5 x 20mm counter head $4.70 1 ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
N/S 192-0158 Screw M6 x 20mm socket head cap $0.89 4 ships same day
