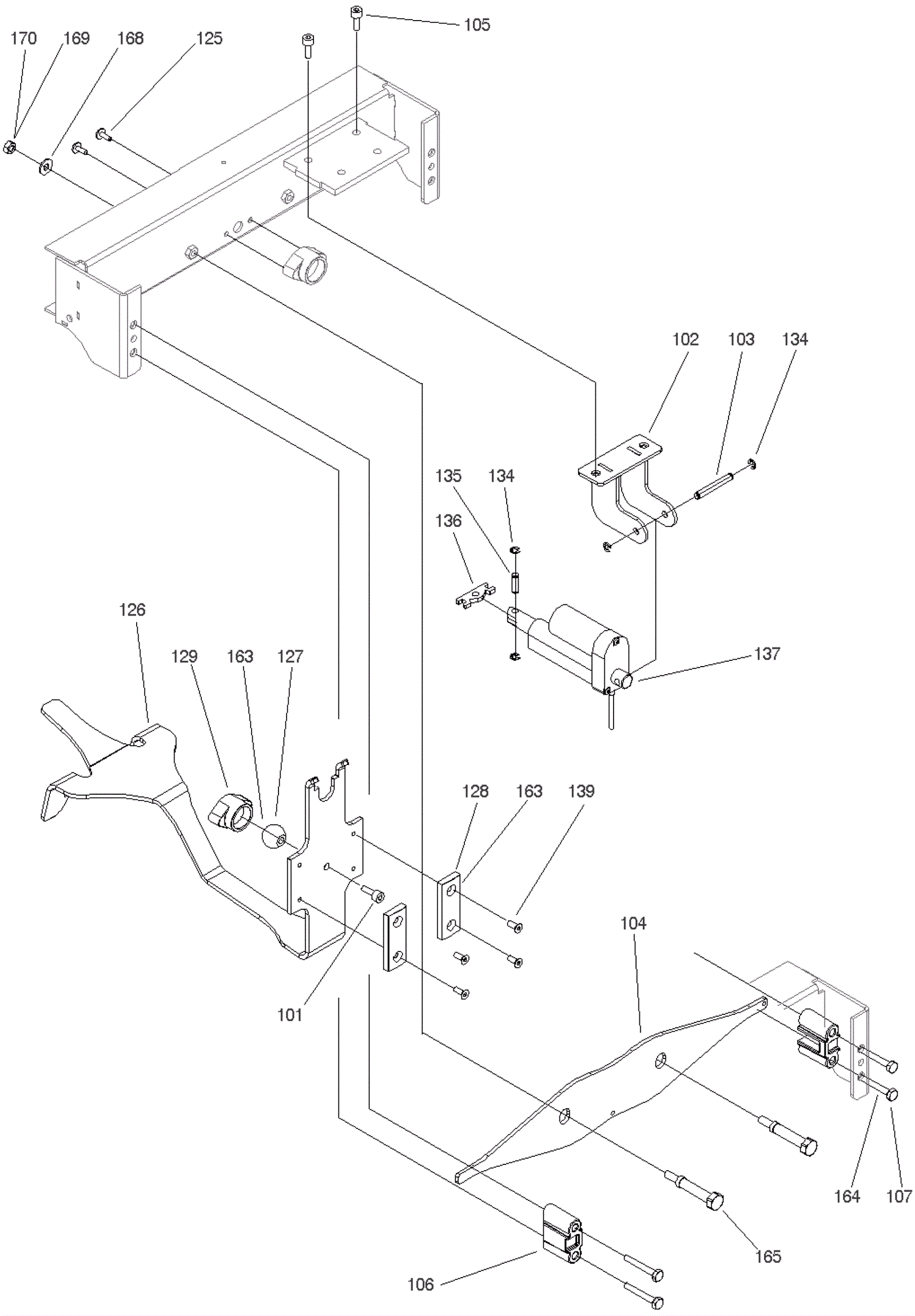

SWINGO XP Squeegee Lowering Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0036 Screw M8 x 20mm socket head $2.44 1 ships same day
102 292-0385 Holder $34.27 1 usually ships 30-75 days
103 192-9795 Bolt $11.73 1 usually ships 30-75 days
104 192-9173 Flat spring $111.35 1 usually ships 30-75 days
105 192-0243 Screw M8 x 20mm socket head $2.44 2 usually ships 30-75 days
106 192-9174 Fender $6.84 2 usually ships 30-75 days
107 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 4 ships same day
125 192-0968 Screw KA 60 x 16 $4.40 2 ships same day
126 192-9179 Swinging arm $109.11 1 ships same day
127 192-4155 Handle ball $6.91 1 usually ships 30-75 days
128 192-9180 Plate $7.65 2 usually ships 30-75 days
129 192-9181 Ball socket $5.57 1 usually ships 30-75 days
134 192-0840 Snap ring $2.44 4 ships same day
135 192-9183 Axle $8.01 1 usually ships 30-75 days
136 192-9184 Articulation $23.88 1 ships same day
137 192-9185 Squeegee actuator $366.48 1 usually ships 30-75 days
139 192-0157 Screw M6 x 16mm countersunk head cap $6.18 4 ships same day
163 192-1872 Grease $11.99 1 ships same day
164 192-1872 Grease $11.99 1 ships same day
165 292-0080 Bolt $32.73 2 ships same day
168 192-0079 Washer $0.89 2 ships same day
169 192-4211 Nut M8 hex $2.44 2 ships same day
170 192-1136 Strong locking adhesive $252.45 1 usually ships 1-5 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
