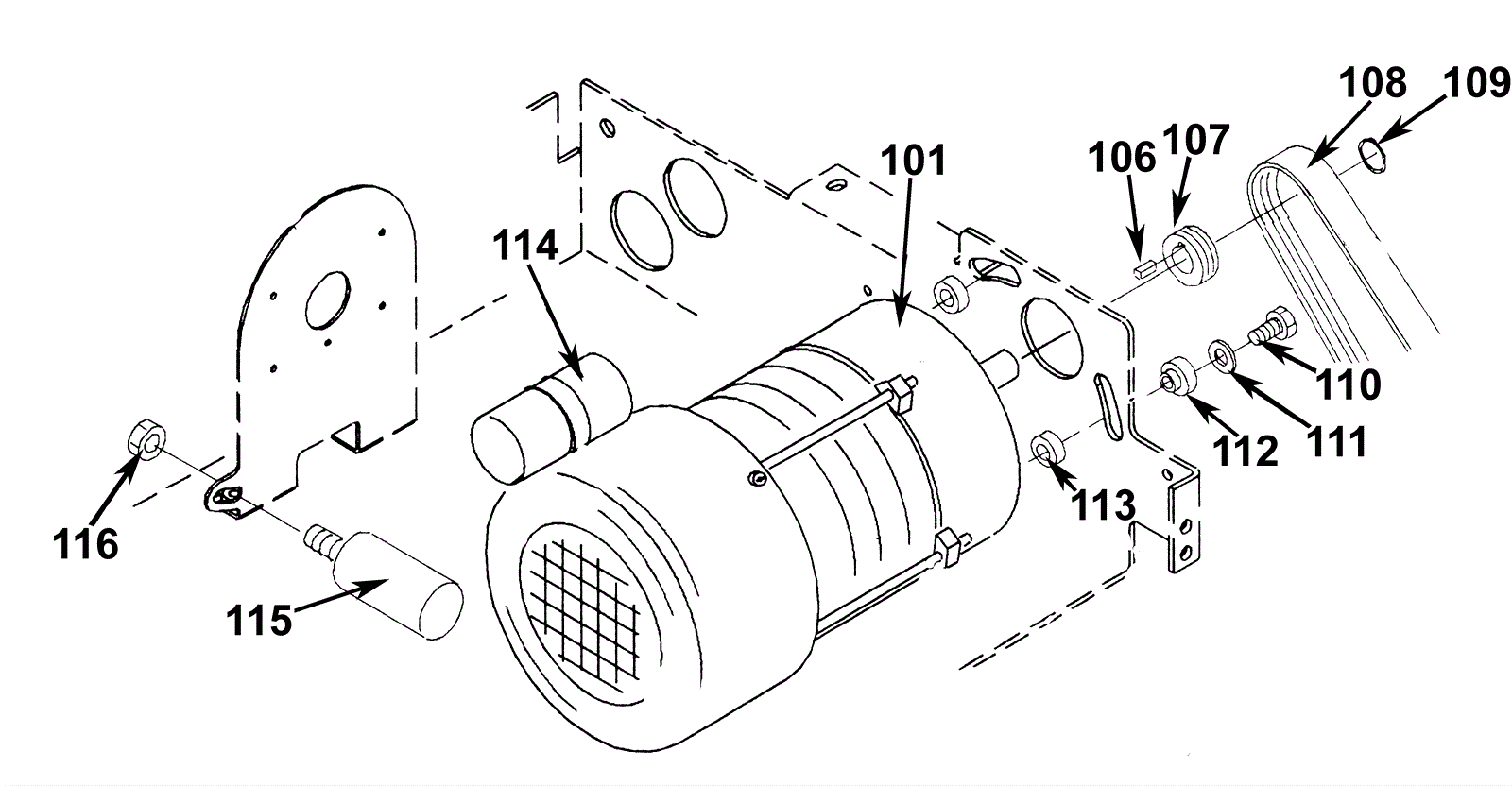

COMBIMAT 300 Brush Motor Assembly - Series 02 - After 05.2004

#PartDescriptionPriceReqNotesAvailability
101a 192-5047 Motor 120 volt 60 hz $1,083.47 1 usually ships 30-75 days
101b 192-3471 Electric centrifugal switch $53.97 1 usually ships 30-75 days
101c 192-5012 Mechanic centrifugal switch 50 hz (OBSOLETE) $60.50 1 usually ships 1-5 days
106 192-4648 Square keyway $2.44 1 ships same day
107 192-5806 Pulley $32.67 1 ships same day
108 192-3392 Drive belt $9.35 1 usually ships 30-75 days
109 192-6037 Retaining ring $0.89 1 ships same day
110 192-0899 Screw M6 x 25mm hex head $3.62 3 ships same day
112 192-4571 Insulating bushing $2.44 3 usually ships 1-5 days
113 192-7407 Insulating washer $2.44 3 usually ships 30-75 days
114 192-6712 Start capacitor 160 uF (black) $90.60 1 usually ships 1-5 days
115 192-6227 Run capacitor 40 uF (white) $107.15 1 usually ships 1-5 days
116 192-0347 Nut M8 hex $0.89 1 ships same day
