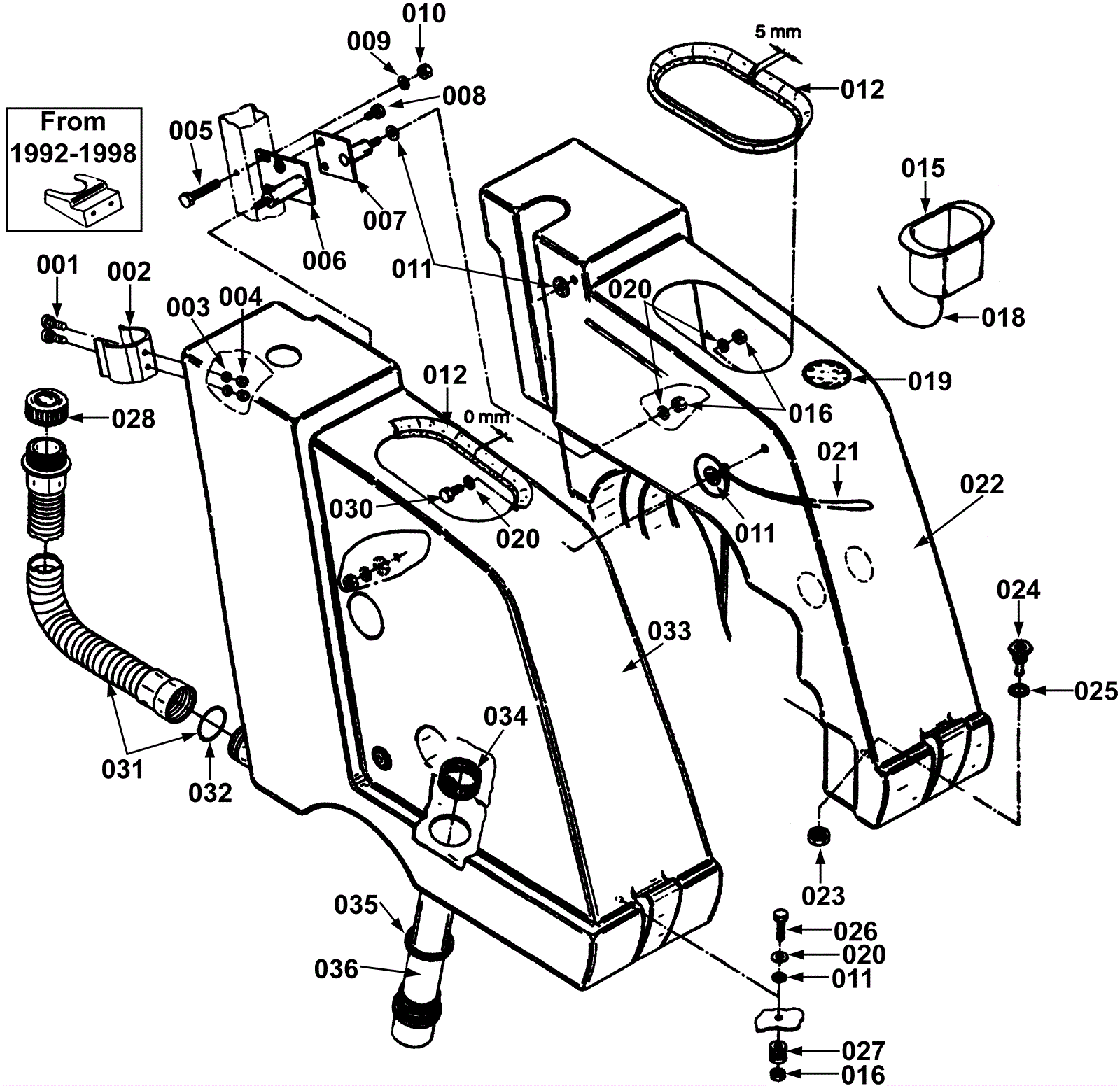

COMBIMAT 500E Tank Assembly - Series 06

#PartDescriptionPriceReqNotesAvailability
001 192-0723 Screw M5 x 6mm $2.44 4 usually ships 30-75 days
002a 192-0099 Hose holder $1.79 2 After 1998 ships same day
002b N/A Not available Call for price 2 From 1992-1998 (hose holder) usually ships 3-26 days
003 192-0880 Washer M5 $0.89 4 ships same day
004 192-0383 Nut M5 hex $0.89 4 ships same day
005 192-0605 Screw 8 x 45 hex $4.71 2 usually ships 1-5 days
006 192-3719 Flange (OBSOLETE) $99.03 1 usually ships 1-5 days
007 192-3717 Flange (OBSOLETE) $31.56 1 usually ships 1-5 days
008 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 2 ships same day
009 192-0079 Washer $0.89 2 ships same day
010 192-0347 Nut M8 hex $0.89 2 ships same day
011 192-1294 Rubber washer $2.44 6 ships same day
012a 192-0741 Gasket material (this piece is 39 iches) $17.88 79 in Series 06 usually ships 30-75 days
012b 192-0741 Gasket material (this piece is 39 iches) $17.88 79 in Series 04 usually ships 30-75 days
014 192-0740 Molding (Sold by the inch) (OBSOLETE) $13.71 30 in usually ships 1-5 days
015 192-0742 Measuring cup (OBSOLETE) $8.11 1 usually ships 1-5 days
016 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
018 192-0714 Cord (sold by the inch) $2.44 12 in ships same day
019 192-0185 Decal (blue) $2.44 1 usually ships 30-75 days
020 192-0248 Washer M8 $2.56 8 ships same day
021 192-0714 Cord (sold by the inch) $2.44 25 in ships same day
022 192-6508 Solution tank (OBSOLETE) $592.78 1 usually ships 1-5 days
023 192-4205 Nut M16 x 1-1/2 hex $2.44 1 usually ships 30-75 days
024 192-3922 Gasket (OBSOLETE) $2.20 2 usually ships 1-5 days
025 192-5169 Nipple (OBSOLETE) $21.59 1 usually ships 1-5 days
026 192-9220 Screw M8 x 35 socket head cap $1.22 2 ships same day
027 192-2383 Bushing $6.15 2 usually ships 1-5 days
028a 192-0237 Threaded cap (red) $2.44 1 ships same day
028b 192-0236 Threaded cap (blue) $2.44 1 ships same day
030 192-4229 Screw M8 x 25 hex $2.20 2 usually ships 30-75 days
031 192-4301 Hose (OBSOLETE) $29.99 2 usually ships 30-75 days
032 192-0115 O-ring $2.68 2 usually ships 30-75 days
033 192-6998 Recovery tank $593.85 1 usually ships 30-75 days
034 192-0187 Threaded collar $2.64 1 ships same day
035 192-0737 Gasket $3.74 1 usually ships 30-75 days
036 192-4587 Intake (OBSOLETE) $76.53 1 usually ships 1-5 days
