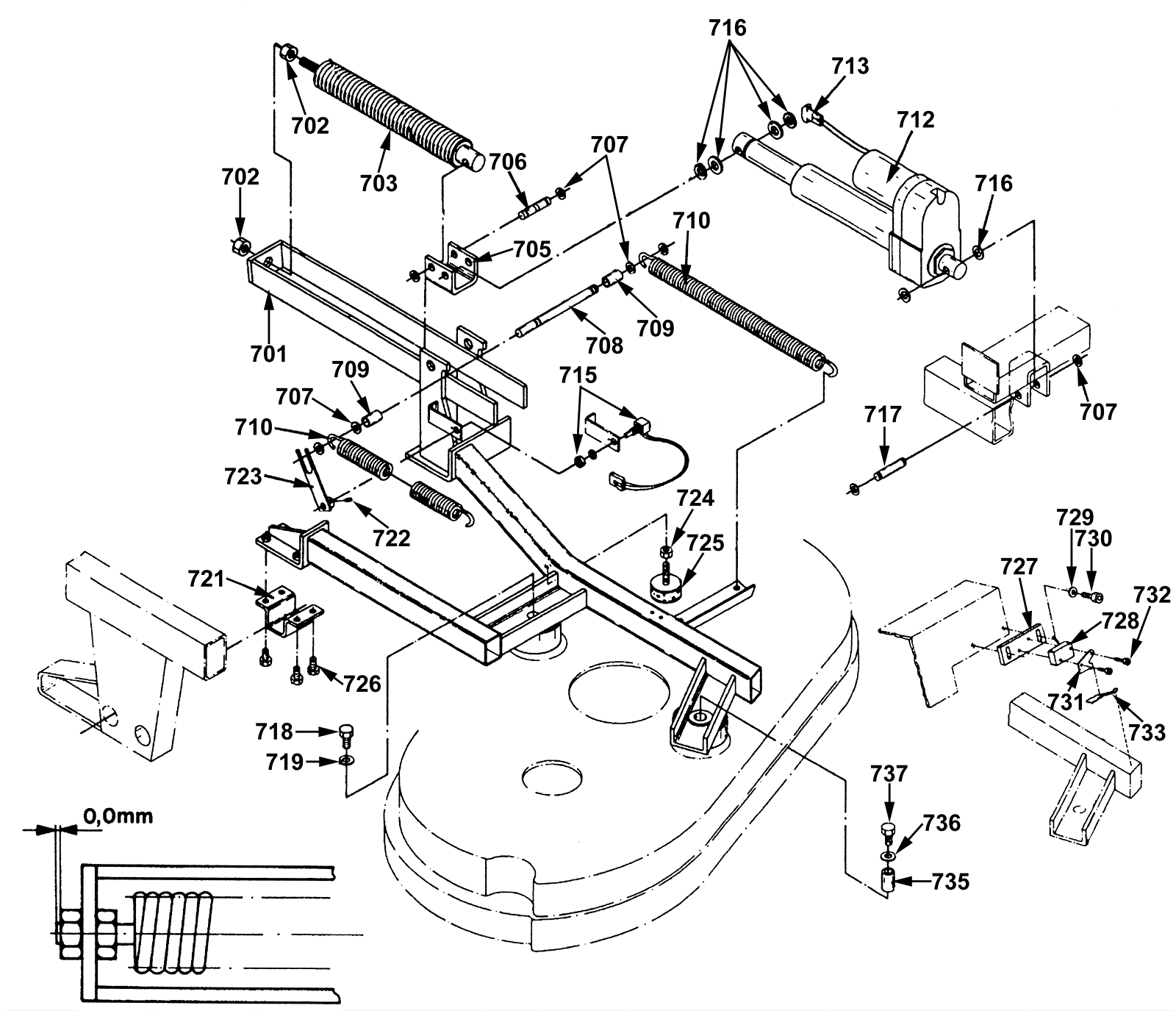

COMBIMAT 4000 Tool Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
701 192-8062 Bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
702 192-4202 Nut M12 hex $4.22 2 usually ships 1-5 days
703 192-8063 Tension spring Call for price 1 usually ships 1-5 days
705 192-2178 Bracket (OBSOLETE) $36.86 1 usually ships 1-5 days
706 192-2090 Bolt (OBSOLETE) $4.69 1 usually ships 1-5 days
707 192-2775 Snap ring for shaft $2.68 8 usually ships 24-40 days
708 192-8064 Axle Call for price 1 usually ships 1-5 days
709 192-2395 Bushing (OBSOLETE) $21.66 2 usually ships 1-5 days
710 192-8065 Tension spring (OBSOLETE) Call for price 2 usually ships 1-5 days
712 192-4794 Actuator (OBSOLETE) $1,790.68 1 usually ships 24-40 days
713a 192-0297 2-pole plug $2.20 1 usually ships 24-40 days
713b 192-0298 Plug pin $2.20 2 usually ships 24-40 days
715a 192-5628 Potentiometer (OBSOLETE) $141.05 1 usually ships 1-5 days
715b 192-0685 3-Pole plug $4.22 1 usually ships 1-5 days
715c 192-5602 Plug pin (OBSOLETE) $2.20 3 usually ships 1-5 days
716 192-7409 Washer 12/16 (OBSOLETE) $2.20 6 usually ships 1-5 days
717 192-0506 Screw M6 x 12mm socket head $2.44 1 usually ships 24-40 days
718 192-1455 Screw M10 x 16mm hex head $4.22 1 ships same day
719 192-0496 Washer M10 $2.44 1 ships same day
721 192-4090 Guide profile (OBSOLETE) $35.20 2 usually ships 1-5 days
722 192-4195 Screw M4 x 6 hex head grub $2.44 1 usually ships 1-5 days
723 192-8066 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
724 192-0240 Nut M8 hex $2.44 1 usually ships 24-40 days
725 192-1125 Stop buffer $4.84 1 ships same day
726 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 8 ships same day
727 192-5556 Plate (OBSOLETE) $36.64 1 usually ships 1-5 days
728a 192-4801 Limit switch (OBSOLETE) $84.63 1 usually ships 1-5 days
728b 192-0272 2-pole plug $2.44 1 usually ships 1-5 days
728c 192-5602 Plug pin (OBSOLETE) $2.20 2 usually ships 1-5 days
729 192-0067 Washer 4 x 17 x 3 $2.44 2 ships same day
730 192-0158 Screw M6 x 20mm socket head cap $0.89 2 ships same day
731 192-2208 Bracket (OBSOLETE) $19.29 1 usually ships 1-5 days
732 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
733 192-4766 Lever (OBSOLETE) $30.90 1 usually ships 1-5 days
735 192-8067 Bushing (OBSOLETE) Call for price 1 usually ships 1-5 days
736 192-7408 Washer $2.44 1 usually ships 24-40 days
737 192-4215 Screw M10 x 40 hex head (OBSOLETE) $2.20 1 usually ships 1-5 days
