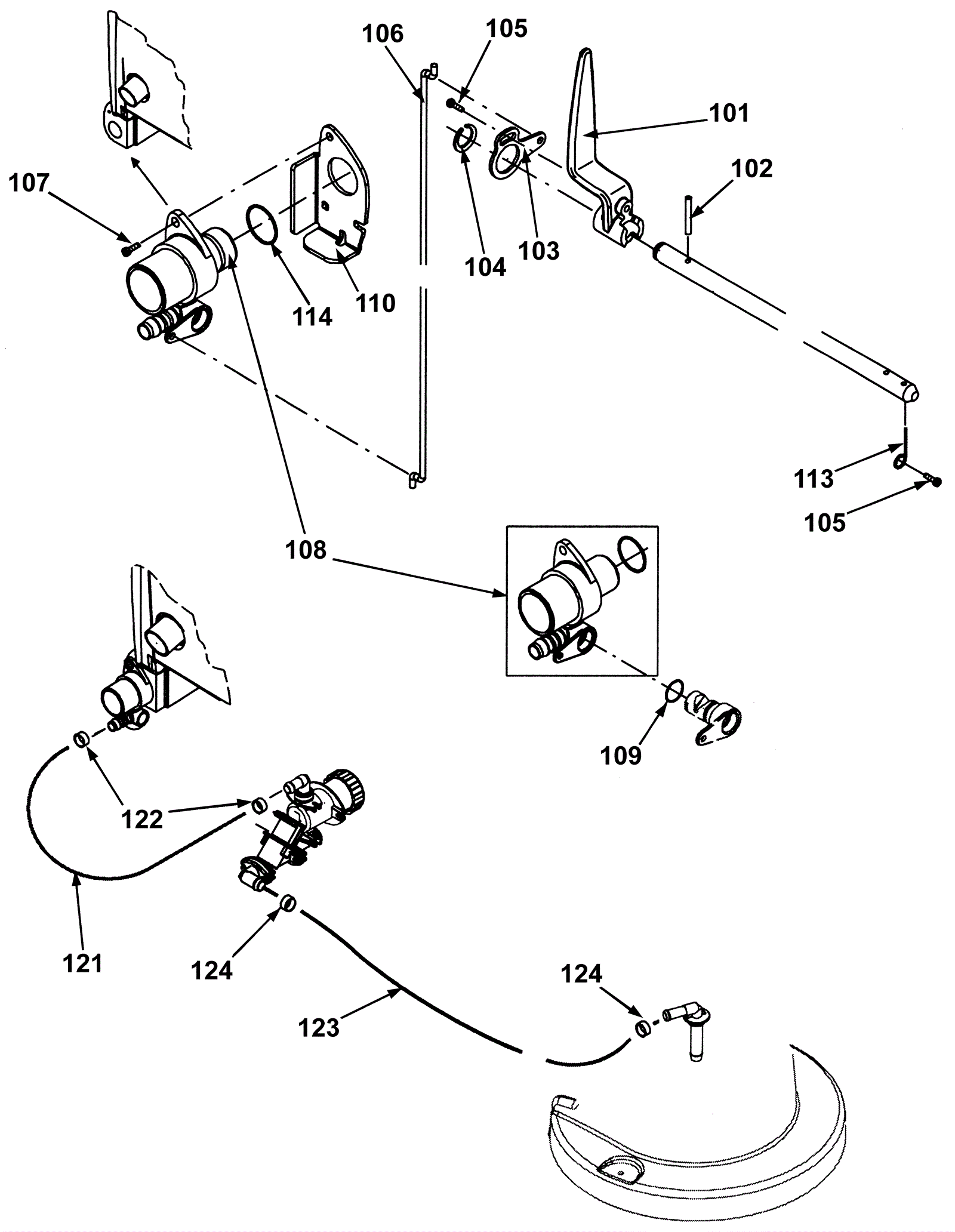

SWINGO 1250E Tube Line Assembly - Series 02

#PartDescriptionPriceReqNotesAvailability
101 192-4128 Handle $5.93 1 usually ships 30-75 days
102 192-1408 Extension pin $2.44 1 usually ships 1-5 days
104 192-1505 Retaining ring $3.86 1 ships same day
105 192-1571 Screw M50 x 16mm $2.44 2 ships same day
106a 192-8757 Rod (1250E) $13.26 1 After 09/2007 usually ships 30-75 days
106b 192-8757 Rod (1250E) $13.26 1 Before 09/2007 usually ships 30-75 days
107 192-1561 Screw 60 x 20 torx head $2.44 1 ships same day
108a 192-1446 Water regulation set includes o-rings and lever (OBSOLETE) $44.69 1 usually ships 30-75 days
108b 192-8759 New water regulation set installation instructions Call for price 1 usually ships 3-26 days
109 192-1603 O-ring $2.44 1 usually ships 30-75 days
110 192-9011 Tank bracket (OBSOLETE) $20.99 1 Series 02 after 06.2006 usually ships 1-5 days
113 192-4809 Locating pin $3.25 1 usually ships 1-5 days
114 192-5369 O-ring $2.44 1 ships same day
121 192-0400 Wire reinforced hose (sold by the inch) $0.99 30in ships same day
122 192-0334 Hose clamp $3.26 2 usually ships 12-29 days
123 192-0404 Wire reinforced hose (sold by the inch) $0.99 30in ships same day
124a 192-4370 Hose clamp $2.76 2 Series 02 after 06.2006 usually ships 30-75 days
124b 192-4377 Hose clamp $5.25 1 Series 02 before 06.2006 usually ships 30-75 days
