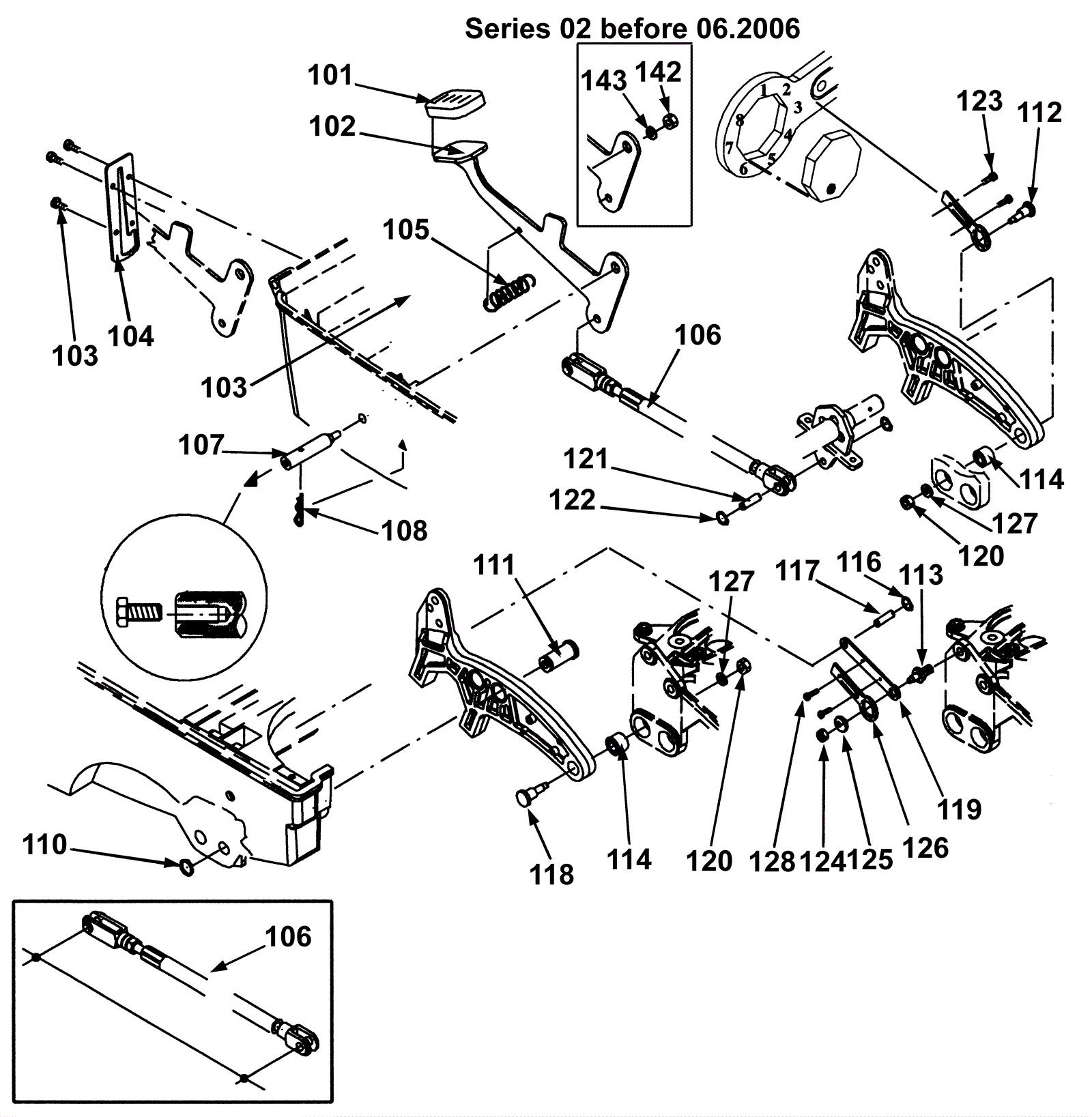

SWINGO 1250E Tool Lowering Assembly - Series 02

#PartDescriptionPriceReqNotesAvailability
101 192-1096 Pedal pad $27.05 1 usually ships 17-21 days
102 192-3822 Foot lever $32.64 1 usually ships 17-21 days
103 192-1571 Screw M50 x 16mm $2.56 6 ships same day
104 192-4018 Bracket $8.67 1 usually ships 17-21 days
105 192-7071 Tension spring $6.15 1 usually ships 17-21 days
106 192-5894 Rack pusher $101.49 1 usually ships 17-21 days
107 192-8754 Clevis pin $14.36 1 usually ships 17-21 days
108 192-9246 Cotter pin $2.56 1 usually ships 17-21 days
110 192-0075 Retaining ring $6.11 2 ships same day
111 192-1775 Axle $9.44 2 ships same day
112 192-3445 Eccentric shaft hex head (black) $32.14 1 ships same day
113 192-2085 Bolt $9.82 1 ships same day
114 192-1953 Bushing $19.88 2 ships same day
116 192-0086 Snap ring $2.56 1 ships same day
117 192-1774 Axle $6.11 1 usually ships 17-21 days
118 192-2084 Bolt $23.85 1 ships same day
119 192-4763 Lever $2.56 1 usually ships 17-21 days
120 192-0510 Nut M8 self locking $2.56 2 ships same day
121 192-1779 Axle $5.47 1 ships same day
122 192-6050 Retaining ring $3.41 4 usually ships 17-21 days
123 192-1595 Screw M40 x 16mm torx head $2.56 2 ships same day
124 192-0563 Nut M6 self-locking $2.56 1 ships same day
125 192-3437 Spacer $9.75 1 usually ships 17-21 days
126 192-4831 Locking lever $2.64 2 ships same day
127 192-0604 Washer M8 $2.56 2 ships same day
128 192-6347 Screw M4 x 10mm self tapping form $2.56 2 usually ships 17-21 days
130 192-4228 Screw M8 x 16mm hex head $2.44 2 usually ships 17-21 days
131 192-3077 Disk $4.24 2 ships same day
132 192-2672 Wheel $89.87 2 ships same day
135 192-5690 Pressure spring 4/29 x 185 $34.23 1 usually ships 1-5 days
136 192-1782 Axle $108.08 1 usually ships 17-21 days
138 192-1561 Screw 60 x 20 torx head $2.56 4 ships same day
139 192-3209 Cradle $15.00 2 ships same day
140 192-3078 Cover $6.84 2 ships same day
141 192-5507 Pipe $9.75 1 usually ships 1-5 days
142 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 Series 02 before 06.2006 ships same day
143 192-0105 Washer M8 $2.56 3 Series 02 before 06.2006 ships same day
