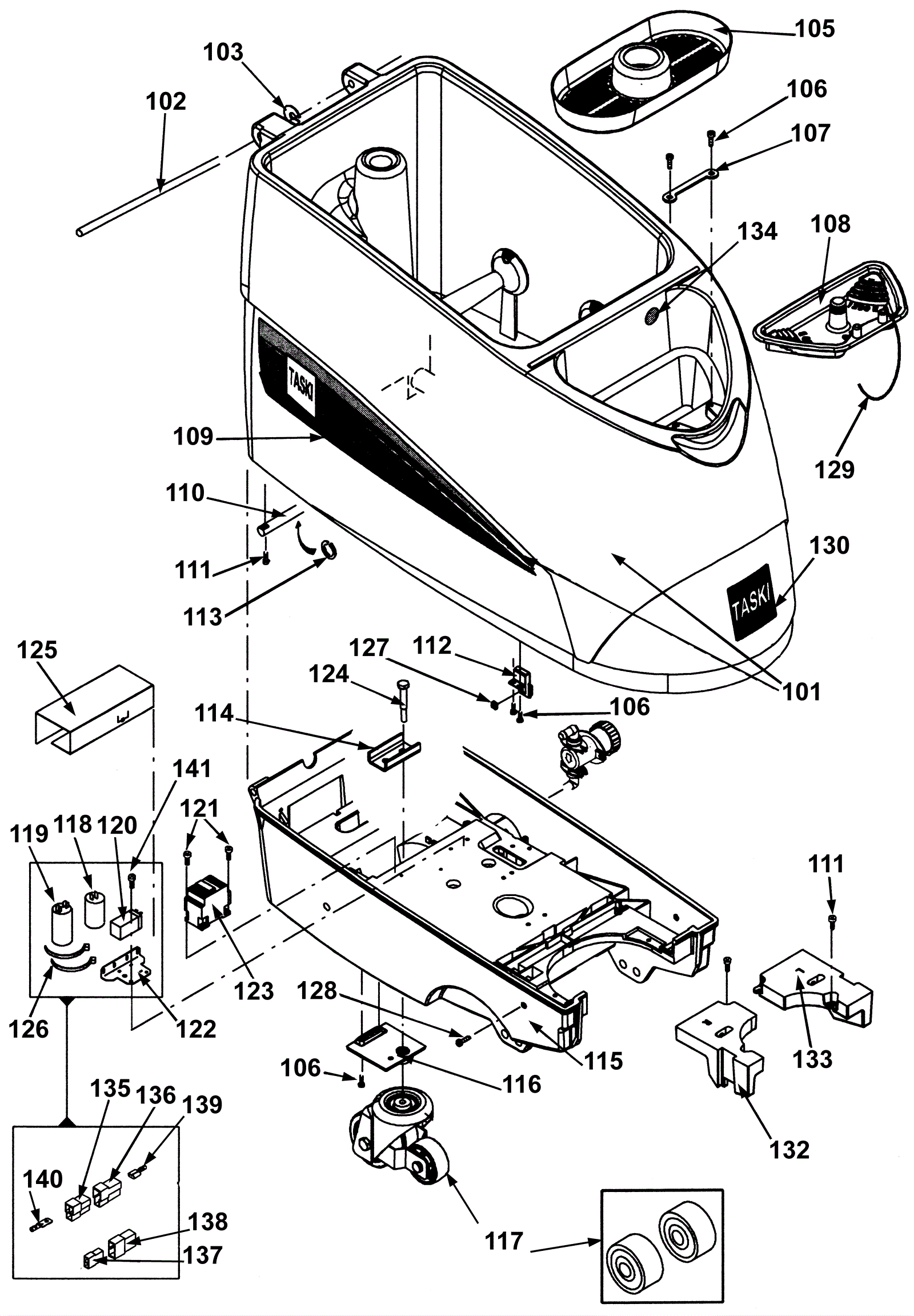

SWINGO 1250E Lower Part and Tank Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-7006 Recovery tank $922.96 1 Series 02 after 06.2006 usually ships 30-75 days
102 192-1502 Axle $35.29 1 usually ships 30-75 days
103 192-1504 Spacer $2.44 4 ships same day
105 192-1511 Basket filter $11.11 1 ships same day
106 192-1561 Screw 60 x 20 torx head $2.44 6 ships same day
107 192-1513 Locking plate $3.49 1 usually ships 30-75 days
108 192-3359 Measuring cup $9.06 1 usually ships 30-75 days
109 192-3245 Swingo decorative label $150.33 1 usually ships 1-5 days
110 192-1773 Axle $16.61 1 usually ships 1-5 days
111 192-1509 Screw 60 x 25 torx head $4.35 4 ships same day
112 192-1514 Bracket (OBSOLETE) $7.21 2 usually ships 30-75 days
113 192-2774 Snap ring $2.44 2 usually ships 1-5 days
114 192-1517 Reinforcement plate $3.49 1 usually ships 30-75 days
115 192-2756 Chassis $523.61 1 ships same day
116a 192-2167 Bracket $15.21 1 Series 02 usually ships 30-75 days
116b 192-2167 Bracket $15.21 1 Series 01 usually ships 30-75 days
117a 192-1521 Caster wheel assembly (brown) $192.12 1 ships same day
117b 192-6380 Caster replacement wheel (brown) (pkg of 2) $133.83 1 (Not a direct replacement for 192-1521. This is a softer wheel for structured floor.) ships same day
118 192-0665 Run capacitor (white) $11.11 1 ships same day
119 192-0664 Start capacitor (black) $32.23 1 ships same day
120 192-0942 Relay $129.38 1 ships same day
121 192-1571 Screw M50 x 16mm $2.44 4 ships same day
122 292-5142 Support $3.12 1 usually ships 30-75 days
123 192-2939 Contactor $600.31 1 usually ships 30-75 days
124 192-4218 Screw M12 x 30mm hex head $2.44 1 ships same day
125 192-5784 Protective shield $26.50 1 usually ships 1-5 days
126 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
127 192-2591 Nut M8 caged $2.44 2 ships same day
128 192-1524 Screw M8 x 20mm flange socket head $2.44 2 ships same day
129 192-0714 Cord (sold by the inch) $2.44 12in ships same day
130 192-1084 TASKI decal $3.54 1 usually ships 30-75 days
132 192-7457 Right hand weight $91.97 1 usually ships 1-5 days
133 192-7456 Left hand weight $100.74 1 usually ships 1-5 days
134 192-0185 Decal (blue) $2.44 1 usually ships 30-75 days
135 192-1388 3 pole plug housing $2.44 1 usually ships 30-75 days
136 192-1387 3 way plug housing $2.44 1 usually ships 30-75 days
137 192-5596 2 pole plug housing $2.44 1 Series 01 usually ships 30-75 days
138 192-3759 2 way flat connector housing $5.25 1 Series 01 usually ships 30-75 days
139 192-3592 Female plate clip $2.56 3 ships same day
140 192-3760 Flat crimp connector $2.44 3 usually ships 30-75 days
141 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
N/S 192-7892 Rubber plate (OBSOLETE) Call for price 1 Series 02 before 06.2006 usually ships 1-5 days
