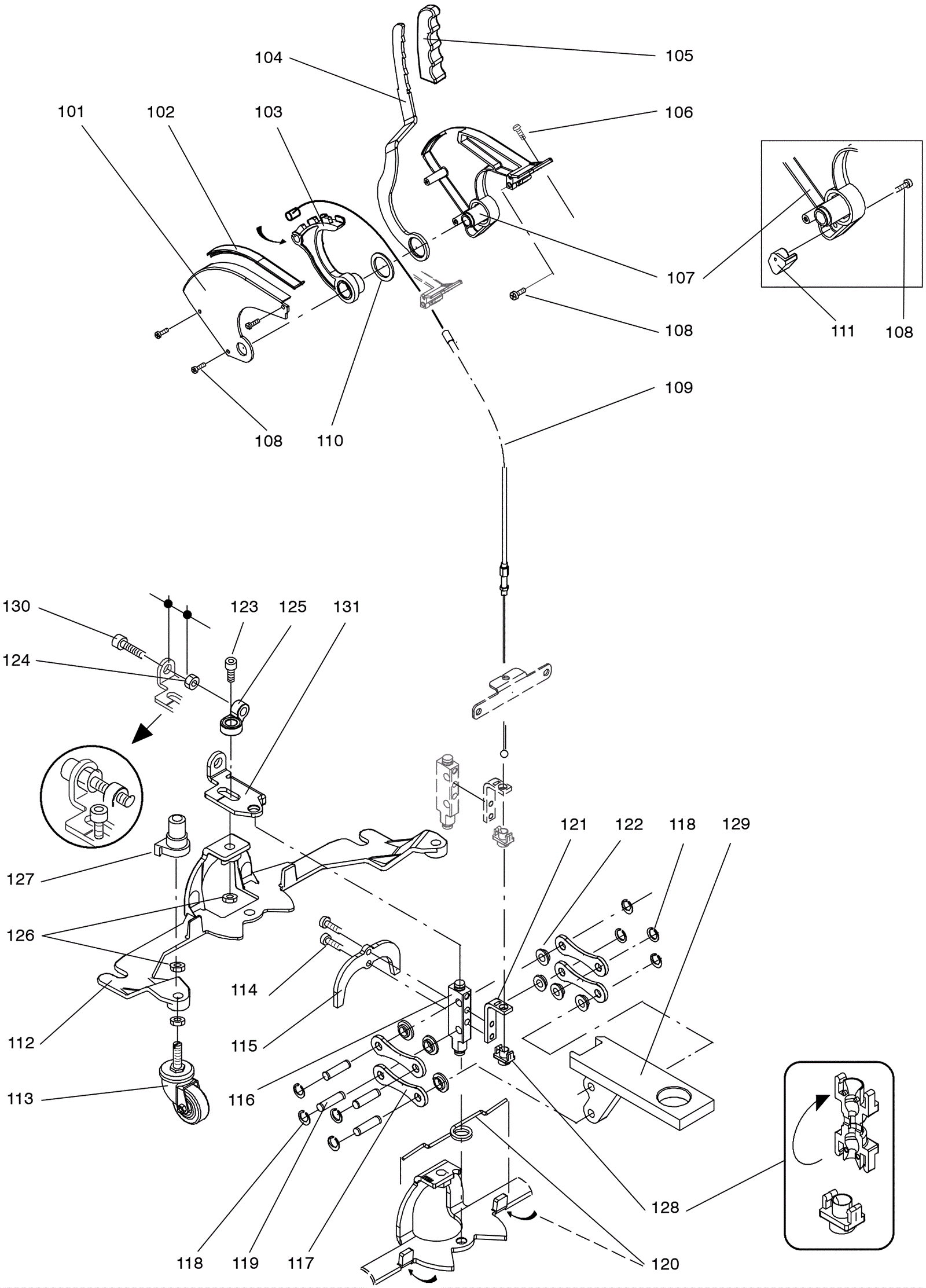

SWINGO 750B Squeegee Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-3079 Cover $18.32 1 ships same day
102 192-6316 Gasket $8.87 1 usually ships 30-75 days
103 192-2164 Bracket (OBSOLETE) $17.73 1 usually ships 30-75 days
104 192-4789 Squeegee lever (OBSOLETE) $44.88 1 usually ships 30-75 days
105 192-4129 Handle $16.36 1 ships same day
106 192-1561 Screw 60 x 20 torx head $2.44 1 ships same day
107 192-4489 Housing $31.45 1 usually ships 30-75 days
108 192-1595 Screw M40 x 16mm torx head $2.44 5 ships same day
109 192-1469 Bowden cable (OBSOLETE) $50.62 1 usually ships 30-75 days
110 192-3336 Spacer disc $2.44 1 usually ships 30-75 days
111 192-6755 Stop block $3.22 1 usually ships 1-5 days
112 192-6650 Mounting bracket (OBSOLETE) $147.26 1 usually ships 30-75 days
113 292-8548 Caster wheel $43.59 2 ships same day
114 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.45 2 ships same day
115 192-1463 Gripper fork (OBSOLETE) $44.76 1 usually ships 30-75 days
116 192-1464 Axle $29.74 1 usually ships 30-75 days
117 192-1712 Bracket (OBSOLETE) $5.62 4 usually ships 30-75 days
118 192-2779 Snap ring $4.47 8 (used to be a washer star cap which became obsolete - these snap rings are used with the 192-1766 axle) ships same day
119 192-1766 Axle $5.32 4 ships same day
120 192-1460 Spring $3.41 1 ships same day
121 192-4249 Rope clamp $2.44 1 ships same day
122 192-6448 Slide bearing $6.42 8 ships same day
123 192-6473 Screw M10 x 25mm socket head cap $5.81 1 usually ships 30-75 days
124 192-6339 Nut M10 self locking $2.44 1 ships same day
125 192-8910 Adjustable block (OBSOLETE) $12.17 1 usually ships 30-75 days
126 192-8682 Nut M10 hex $2.44 5 usually ships 30-75 days
128 192-1883 Ball socket $7.45 1 usually ships 30-75 days
129 192-1462 Bracket $48.96 1 usually ships 30-75 days
130 192-8911 Screw M10 x 40mm socket head cap $2.44 1 usually ships 30-75 days
131 192-1456 Adjusting plate $15.09 1 ships same day
N/S 192-4788 Squeegee lever (OBSOLETE - REPLACED BY 192-4789 & 192-4129) $55.96 1 (series 1) usually ships 1-5 days
