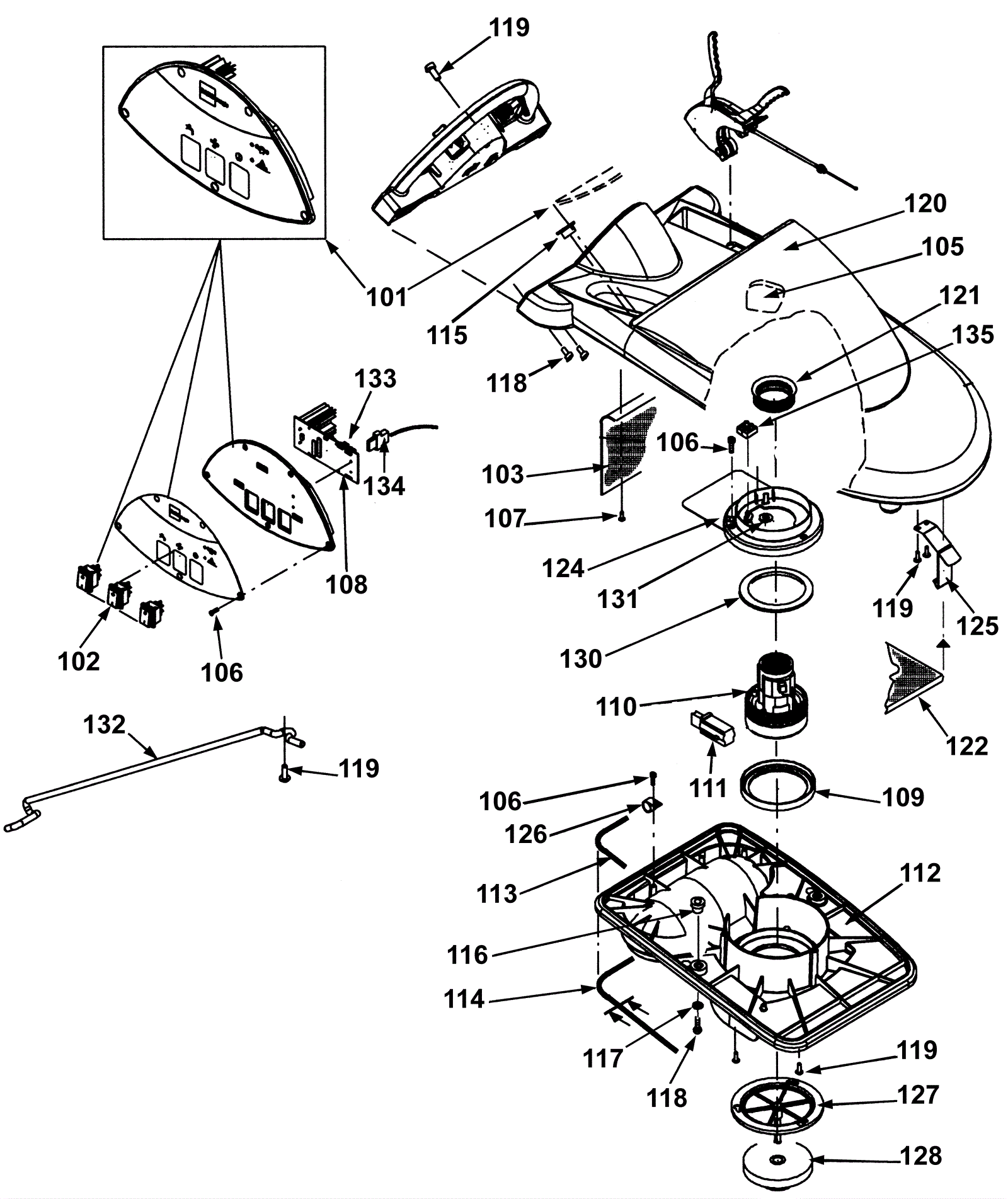

SWINGO 750E Upper Part Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-2945 Control board $156.33 1 usually ships 1-5 days
102 192-6107 2 position rocker switch $10.46 3 ships same day
103 192-1560 Protective shield $14.89 1 usually ships 1-5 days
105 192-1590 Noise absorbing plate $13.21 1 usually ships 17-21 days
106 192-1571 Screw M50 x 16mm $2.56 9 ships same day
107 192-1559 Retaining rivet $4.74 4 ships same day
108 192-5707 Circuit board (OBSOLETE) $490.45 1 usually ships 17-21 days
109a 192-1562 Guide ring $7.77 1 Series 02 after 01.2004 ships same day
109b 192-1562 Guide ring $7.77 1 Series 01 ships same day
110 192-1489 120V vacuum motor $378.80 1 ships same day
111 192-2656 Carbon brush (pkg of 2) $8.72 1 usually ships 1-5 days
112 192-1564 Base plate $82.18 1 usually ships 17-21 days
113 192-6310 Seal strip (sold by the inch) $0.99 55in ships same day
114 192-6334 Sealing profile (sold by the inch) $0.99 67 in ships same day
115a 192-6775 Plug $2.56 1 usually ships 17-21 days
115b 192-7543 Hour meter 120V 60 hz (OBSOLETE) $269.50 1 usually ships 1-5 days
116 192-1575 Buffer $2.56 2 ships same day
117 N/A Not available Call for price 2 Series 01 usually ships 3-26 days
118 192-1557 Screw 60 x 35 torx head $2.56 6 ships same day
119 192-1561 Screw 60 x 20 torx head $2.56 9 ships same day
120 192-1558 Tank cover (OBSOLETE) $253.43 1 usually ships 17-21 days
121 192-1569 Sealing ring $7.13 1 ships same day
122 192-1591 Noise absorbing plate $17.30 1 usually ships 17-21 days
123 192-3370 Double female plate clip $6.23 2 usually ships 1-5 days
124 192-1570 Protection plate $18.07 1 ships same day
125 192-4812 Locking lever $26.03 1 usually ships 17-21 days
126 192-2501 P clamp $4.82 1 ships same day
127 192-3617 Filter $7.26 1 ships same day
128 192-1490 Float $32.95 1 ships same day
130 192-1573 Gasket $2.56 2 ships same day
131 192-0112 Washer $2.56 1 ships same day
132 192-1566 Support bar (OBSOLETE) $44.22 1 usually ships 17-21 days
133 192-1589 Fuse (slow blow) $2.56 1 ships same day
134 192-1578 Cable adjustment set $1,000.98 1 Series 01 usually ships 17-21 days
135 192-0260 2-way connection block $2.95 1 ships same day
N/S 192-6014 Reset key set $328.90 1 (to reset service hours) usually ships 17-21 days
