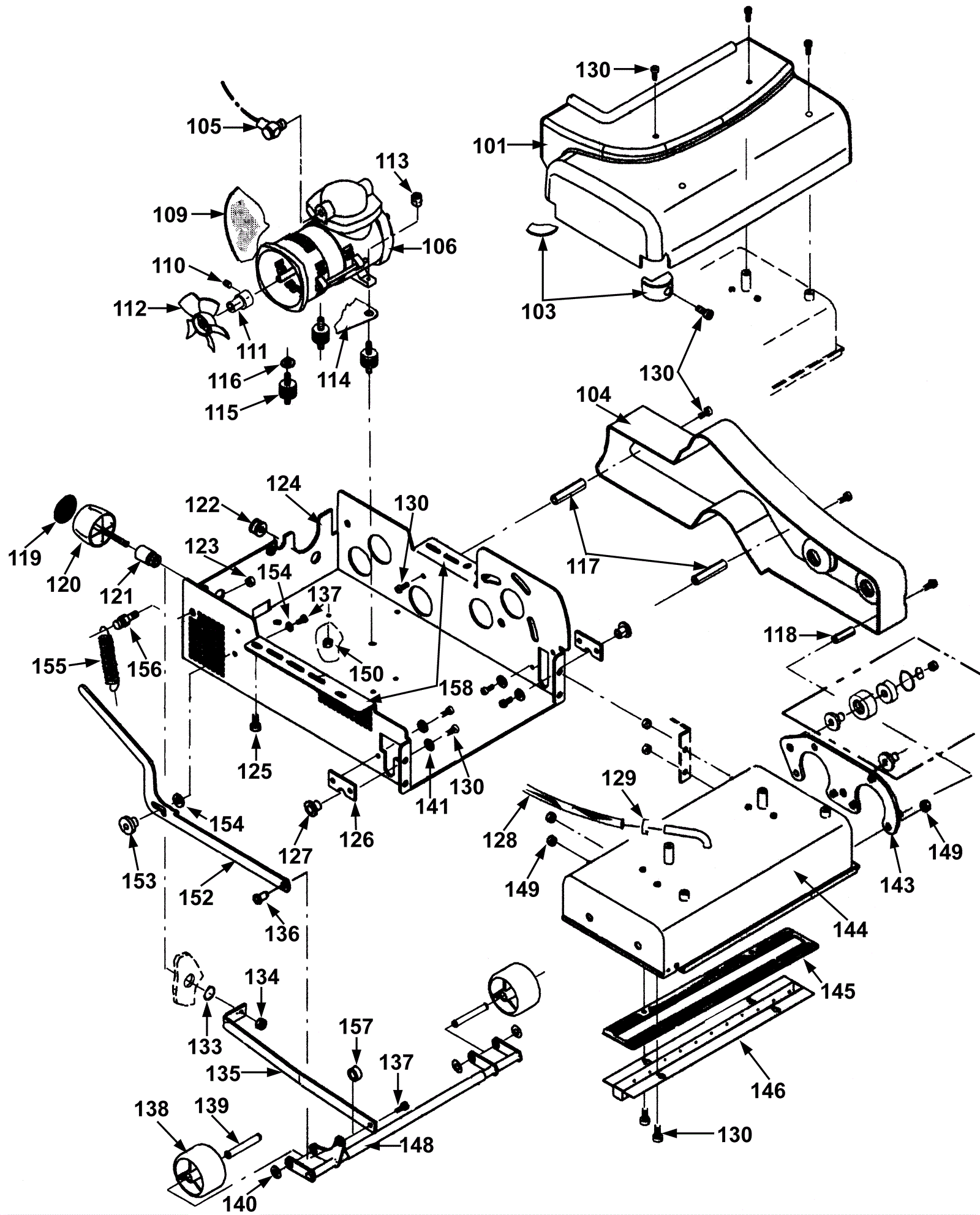

SWIFT 35 Base Assembly 2

#PartDescriptionPriceReqNotesAvailability
101 192-2292 Brush housing $163.44 1 usually ships 1-5 days
103 192-6449 Slide block $4.03 2 usually ships 1-5 days
104 192-3068 Cover $188.23 1 usually ships 1-5 days
105 192-1681 1/8 inch angled socket $26.62 1 usually ships 30-75 days
106a 192-2862 120V compressor $631.58 1 ships same day
106b 192-8588 Pop rivet $2.76 1 usually ships 30-75 days
109 192-4274 Hood $19.42 1 usually ships 30-75 days
110 192-4194 Screw M4 x 4mm hex grub $2.44 1 usually ships 30-75 days
111 192-3324 Spacer $12.57 1 usually ships 30-75 days
112 192-1426 Fan (black) $36.95 1 ships same day
113 192-6459 Nut slotted round $6.30 2 usually ships 1-5 days
114 192-5576 Plate $17.29 1 usually ships 1-5 days
115 192-7376 Vibrations absorber $3.91 1 usually ships 30-75 days
116a 192-0971 Washer $2.44 1 Series 02 ships same day
116b 192-0091 Washer $0.89 1 Series 01 ships same day
117 192-3334 Spacer bushing $9.77 2 usually ships 30-75 days
118 192-3346 Spacer sleeve M5 x 55 $7.65 1 usually ships 1-5 days
119 192-6989 Brush symbol $19.61 1 usually ships 1-5 days
120 192-4671 Knob $36.39 1 usually ships 30-75 days
121 192-1951 Bushing $11.47 1 usually ships 30-75 days
122 192-4062 Grommet (OBSOLETE) $2.20 1 usually ships 1-5 days
123 192-0195 Nut M5 hex $2.44 1 ships same day
124 192-2760 Chassis $847.69 1 usually ships 1-5 days
125 192-0968 Screw KA 60 x 16 $4.40 4 ships same day
126 192-5548 Plate $17.17 2 usually ships 30-75 days
127 192-6445 Slide bearing $2.44 2 usually ships 1-5 days
128 192-0404 Wire reinforced hose (sold by the inch) $0.99 30 in ships same day
129 192-4370 Hose clamp $2.76 1 usually ships 30-75 days
130 192-0160 Screw M5 x 10mm raised head $3.49 19 usually ships 30-75 days
133 192-6039 Retaining ring $2.44 1 ships same day
134a 192-6345 Nut M6 self locking $2.44 1 Series 02 ships same day
134b 192-6344 Nut M6 self locking $2.44 1 Series 01 usually ships 1-5 days
135 192-2878 Connecting bar $51.72 1 usually ships 30-75 days
136 192-3737 Flanged bolt $10.69 1 usually ships 1-5 days
137 192-1109 Screw M6 x 10mm hex head $0.89 2 ships same day
138 192-2687 Caster $16.07 2 usually ships 1-5 days
139 192-1763 Axle $7.65 2 usually ships 1-5 days
140 192-0693 Retaining ring $0.89 4 ships same day
141a 192-0206 Washer M5 $1.80 7 Series 02 ships same day
141b 192-1537 Washer M5 serrated lock $2.44 1 Series 01 ships same day
143 192-4035 Gear plate $131.13 1 usually ships 1-5 days
144 192-2271 Brush housing $495.90 1 usually ships 1-5 days
145 192-3763 Flat gasket $8.50 1 usually ships 1-5 days
146 192-2745 Channel (OBSOLETE) $77.44 1 usually ships 1-5 days
148 192-1762 Axle $213.43 1 usually ships 30-75 days
149a 999-1308 Nut M6-1 hex stainless steel $0.99 10 Series 02 ships same day
149b 192-0179 Washer M6 serrated lock $2.44 1 Series 01 usually ships 30-75 days
150 192-0235 Nut M4 self locking $2.44 3 ships same day
152 192-4748 Lever $94.70 1 usually ships 30-75 days
153 192-3738 Nut M6 flanged $9.41 1 ships same day
154a 192-0964 Washer $2.44 2 Series 02 ships same day
154b 192-7421 Washer $2.44 1 Series 01 usually ships 30-75 days
155 192-0710 Tension spring $2.44 1 usually ships 30-75 days
156 192-2075 Bolt $7.45 1 usually ships 1-5 days
157 192-3332 Spacer bushing $2.44 1 usually ships 1-5 days
158 192-6309 Sealing strip (sold by the inch) $7.11 2 usually ships 30-75 days
N/S 192-0218 12mm teflon tape $14.77 usually ships 1-5 days
N/S 192-0467 Lite thread lock compound $237.19 usually ships 1-5 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 ships same day
