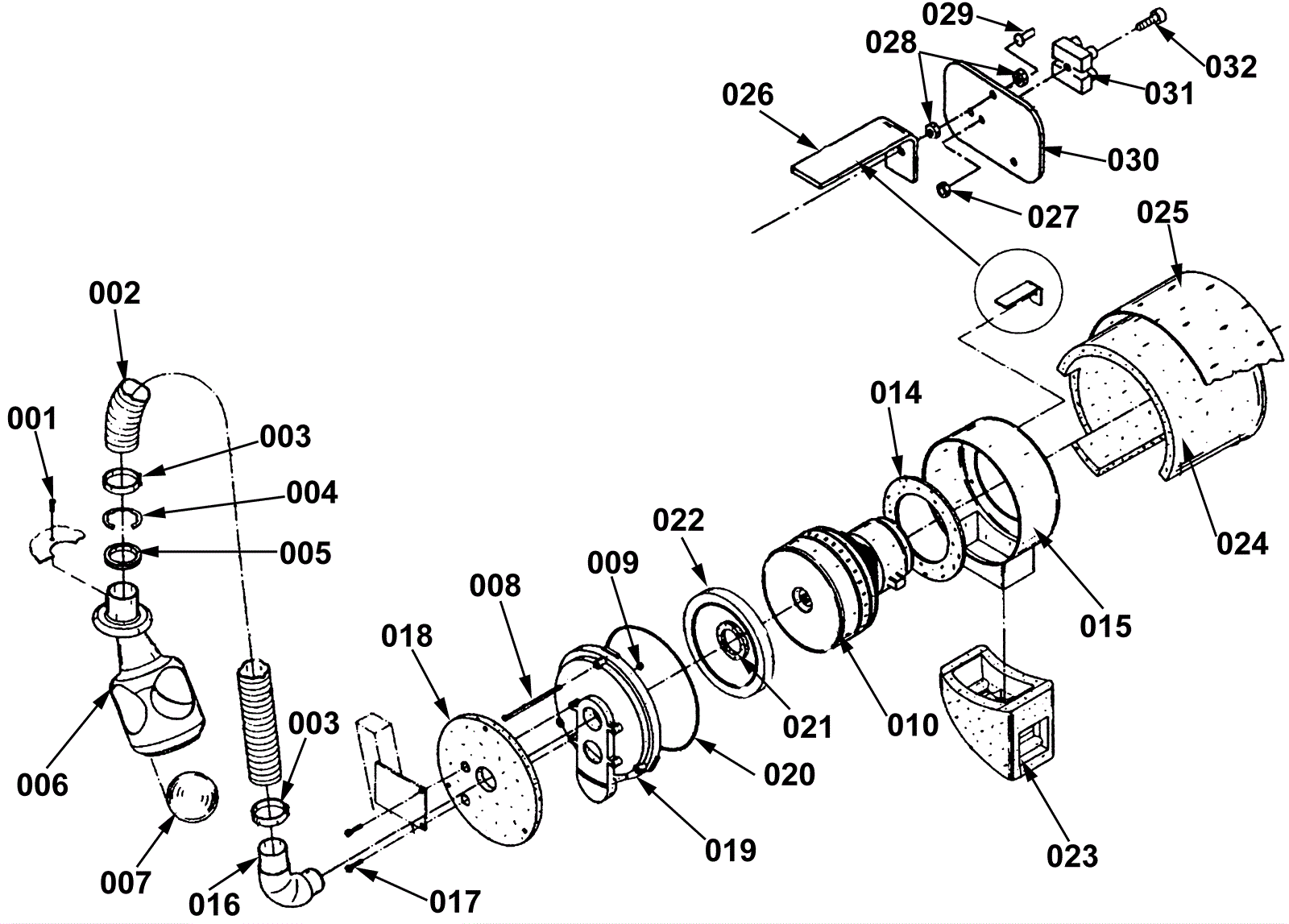

COMBIMAT 1000E Vacuum Unit Assembly - Series 03

#PartDescriptionPriceReqNotesAvailability
001 192-6286 Screw KA 40 x 18 $2.56 1 usually ships 19-25 days
002 192-3775 1-1/2 in flex hose (sold by the inch) (OBSOLETE) $2.05 27 in usually ships 1-5 days
003 192-0764 Hose clamp $2.77 2 usually ships 19-25 days
004 192-6044 Retaining ring (OBSOLETE) $9.46 1 usually ships 1-5 days
005 192-0414 Valve seal $15.33 1 ships same day
006 192-7313 Valve body (OBSOLETE) $31.12 1 usually ships 1-5 days
007 192-1847 Ball (OBSOLETE) $12.47 1 usually ships 1-5 days
008 192-0418 Screw 4mm cylindrical $11.01 3 usually ships 19-25 days
009 192-0383 Nut M5 hex $0.89 2 ships same day
010 192-7246 Vac motor 120V $343.59 1 usually ships 19-25 days
014 192-0256 Gasket $2.60 1 ships same day
015 192-4485 Housing (OBSOLETE) $15.59 1 usually ships 19-25 days
016 192-5516 Pipe elbow (OBSOLETE) $17.79 1 usually ships 1-5 days
017 192-0262 Screw M5 x 20mm socket head cap $3.72 2 usually ships 19-25 days
018 192-5246 Noise absorbing cover (OBSOLETE) $11.44 1 usually ships 1-5 days
019 192-0411 Motor flange $27.18 1 usually ships 1-5 days
020 192-0413 Gasket (sold by the inch) $0.99 23 in usually ships 19-25 days
021 192-3923 Gasket (OBSOLETE) $7.48 1 usually ships 1-5 days
022 192-0253 Gasket (OBSOLETE) $6.47 1 usually ships 19-25 days
023 192-5247 Noise absorbing mantle (OBSOLETE) $32.46 1 usually ships 1-5 days
024 192-5248 Noise absorbing mantle (OBSOLETE) $45.20 1 usually ships 1-5 days
025 192-4618 Jacket (OBSOLETE) $30.43 1 usually ships 1-5 days
026 192-2175 Bracket (OBSOLETE) $7.36 3 usually ships 1-5 days
027 192-0015 Nut M3 self locking $5.26 1 usually ships 1-5 days
028 192-0039 Nut M4 hex $4.31 4 usually ships 19-25 days
029 192-6051 Retaining rivet (OBSOLETE) $2.20 1 usually ships 1-5 days
030 192-5551 Plate (OBSOLETE) $4.03 1 usually ships 1-5 days
031 192-2895 2 way connection block $2.56 1 usually ships 19-25 days
032 192-0054 Screw M3 x 16mm raised cheese head $5.01 1 ships same day
N/S 192-0973 3 1/4 inch cable tie $2.56 - usually ships 19-25 days
