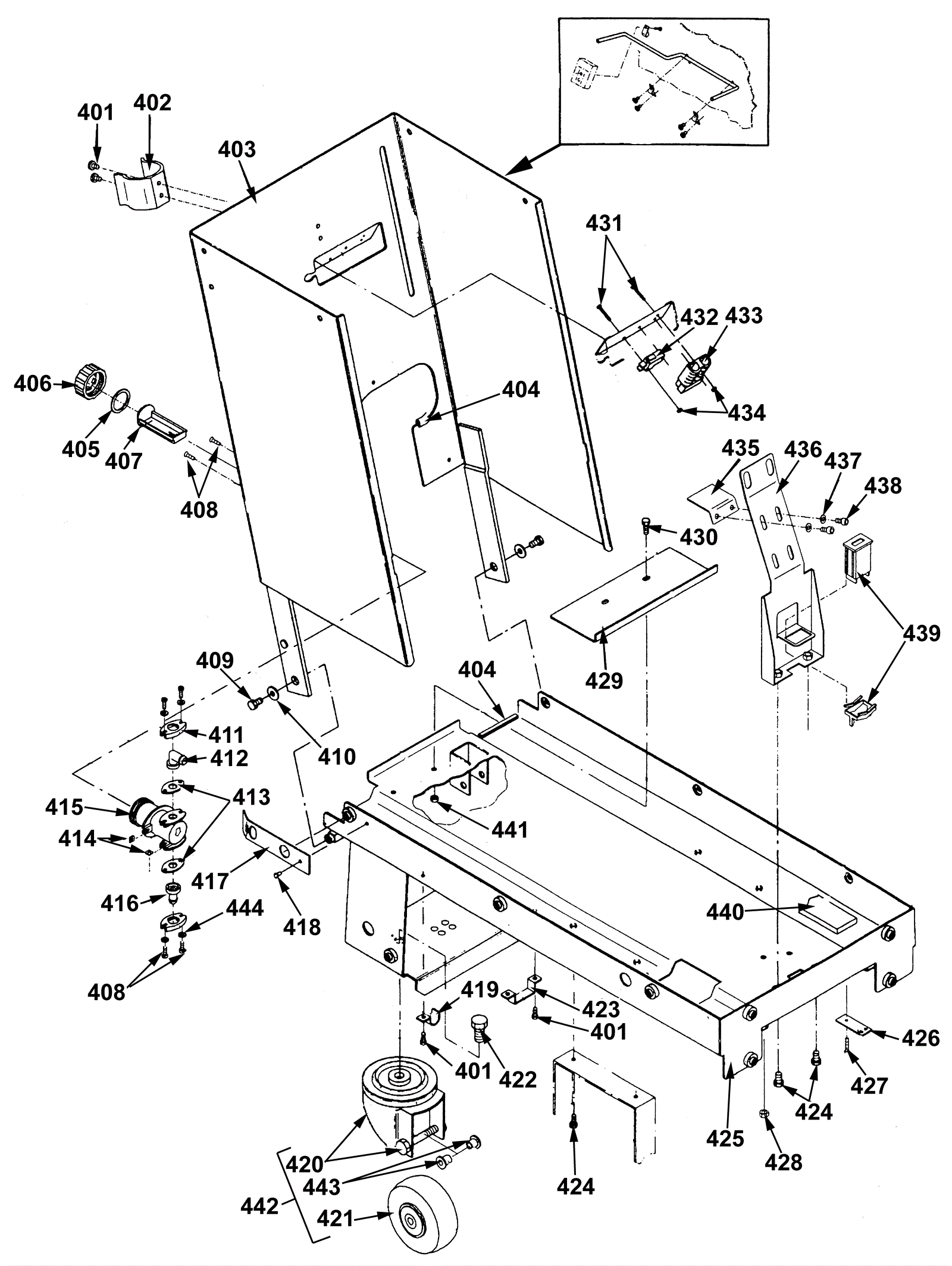

COMBIMAT 1100 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
401 192-0162 Screw M5 x 8 self tapping forming $2.88 11 ships same day
402 192-0099 Hose holder $1.79 1 ships same day
403 192-3073 Cover (OBSOLETE) $580.14 1 usually ships 1-5 days
405 292-0082 Filter kit $11.11 1 ships same day
406 292-0082 Filter kit $11.11 1 ships same day
407 192-3616 Filter (OBSOLETE) $5.94 1 usually ships 24-40 days
408 192-0912 Screw M4 x 16mm raised head $2.44 6 ships same day
409 192-0822 Screw M8 x 25 hex head $3.30 2 usually ships 24-40 days
410 192-0079 Washer $0.89 2 ships same day
411 192-0911 Flange $2.56 2 ships same day
412 192-1691 Angled nipple $2.08 1 ships same day
413 192-0914 Gasket $2.44 2 ships same day
414 192-0915 Nut M4 square $3.30 6 ships same day
415 192-0910 Filter housing $6.67 1 ships same day
416 192-0913 Nipple $3.10 1 usually ships 24-40 days
417 192-4833 Locking plate (OBSOLETE) $17.94 1 usually ships 1-5 days
418 192-8588 Pop rivet $2.76 1 usually ships 24-40 days
419 192-2810 Clamp 1 x 5 (OBSOLETE) $2.20 2 usually ships 1-5 days
420a 192-7510 Wheel with bearing (OBSOLETE) $104.79 2 usually ships 1-5 days
420b 192-1135 Nut M10 hex $2.44 2 ships same day
420c 192-0865 Screw M10 x 70 hex head $2.44 2 usually ships 24-40 days
421 192-7497 Wheel D 100 (OBSOLETE) $64.87 2 usually ships 1-5 days
422 192-4217 Screw M12 x 25mm hex $2.44 2 usually ships 1-5 days
423 192-7583 Clamp (OBSOLETE) Call for price 3 usually ships 1-5 days
424 192-0509 Screw M8 x 12mm hex head $2.52 6 ships same day
425 192-2755 Chassis CO 1100 (OBSOLETE) $785.52 1 usually ships 1-5 days
426 192-7590 Fixation Call for price 1 usually ships 1-5 days
427 192-7591 Screw 4 13/64 x 22 pan head tapp Call for price 1 usually ships 1-5 days
428 192-0383 Nut M5 hex $0.89 2 ships same day
429 192-7593 Angle stop Call for price 1 usually ships 1-5 days
430 192-1109 Screw M6 x 10mm hex head $0.89 2 ships same day
431 192-0294 Screw M3 x 20 raised cheese head $2.44 4 usually ships 24-40 days
432 192-1268 Microswitch (OBSOLETE) $21.12 1 usually ships 24-40 days
433 192-1266 50amp charger plug SB50 $5.47 2 ships same day
434 192-0048 Nut M3 hex $2.44 4 usually ships 24-40 days
435 192-6848 Support (OBSOLETE) $21.59 1 usually ships 1-5 days
436 192-6847 Support (OBSOLETE) $335.60 1 usually ships 1-5 days
437 192-0200 Washer M6 $3.12 2 usually ships 24-40 days
438 192-6487 Screw M6 x 12 socket head cap (OBSOLETE) $2.20 2 usually ships 1-5 days
439 192-0033 24V hour meter $81.88 1 usually ships 24-40 days
440 192-7592 Elastic support Call for price 2 usually ships 1-5 days
441 192-0151 Nut M6 hex $2.44 2 ships same day
442 192-2703 Complete caster (OBSOLETE) $255.05 1 usually ships 1-5 days
443 192-4596 Intermediate bushing (OBSOLETE) $3.27 2 usually ships 1-5 days
444 192-0149 Washer $2.44 4 ships same day
N/S 192-0008 Self-adhesive plate (OBSOLETE) $0.61 10 usually ships 24-40 days
N/S 192-0102 7 3/4 inch cable tie $2.44 13 usually ships 24-40 days
N/S 192-6991 Battery symbol (OBSOLETE) $2.20 1 usually ships 1-5 days
N/S 192-6992 Filter label $2.44 1 usually ships 24-40 days
