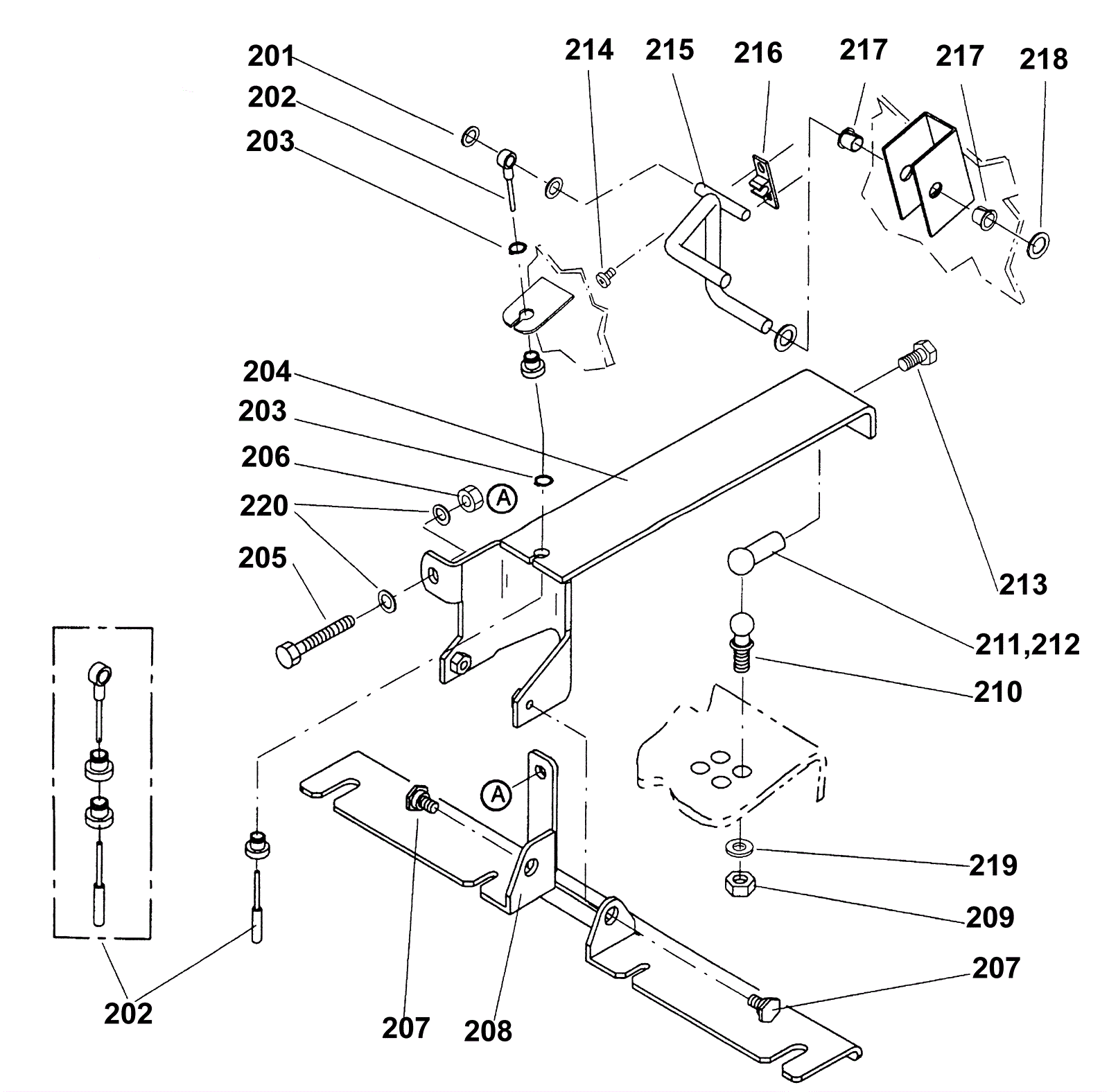

COMBIMAT 1100 Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
201 192-1362 Elastic ring (OBSOLETE) $2.20 2 usually ships 1-5 days
202 192-5020 Complete metal rope (OBSOLETE) $52.24 1 usually ships 1-5 days
203 192-0693 Retaining ring $0.89 2 ships same day
204 192-6987 Swiveling Lever (OBSOLETE) $198.44 1 usually ships 1-5 days
205 192-0605 Screw 8 x 45 hex $4.95 1 usually ships 1-5 days
206 192-0510 Nut M8 self locking $2.56 1 ships same day
207 192-6539 Special screw M8 (OBSOLETE) $9.14 2 usually ships 1-5 days
208 192-6648 Squeegee bracket $79.56 1 usually ships 19-25 days
209 192-1135 Nut M10 hex $2.56 1 ships same day
210 192-0694 Ball pivot $9.33 1 usually ships 19-25 days
211 192-0695 Ball pivot 10mm $6.90 1 ships same day
212 192-0699 Safety clip $0.89 1 ships same day
213 192-0468 Screw M10 x 20 hex $4.95 1 usually ships 19-25 days
214 192-0162 Screw M5 x 8 self tapping forming $3.03 2 ships same day
215 192-4758 Lever (OBSOLETE) $21.19 1 usually ships 1-5 days
216 192-1359 Bracket (OBSOLETE) $4.69 1 usually ships 19-25 days
217 192-6445 Slide bearing $2.56 2 usually ships 1-5 days
218 192-3450 Elastic ring $2.44 2 usually ships 19-25 days
219 192-0496 Washer M10 $2.56 1 usually ships 19-25 days
220 192-0105 Washer M8 $2.56 2 ships same day
