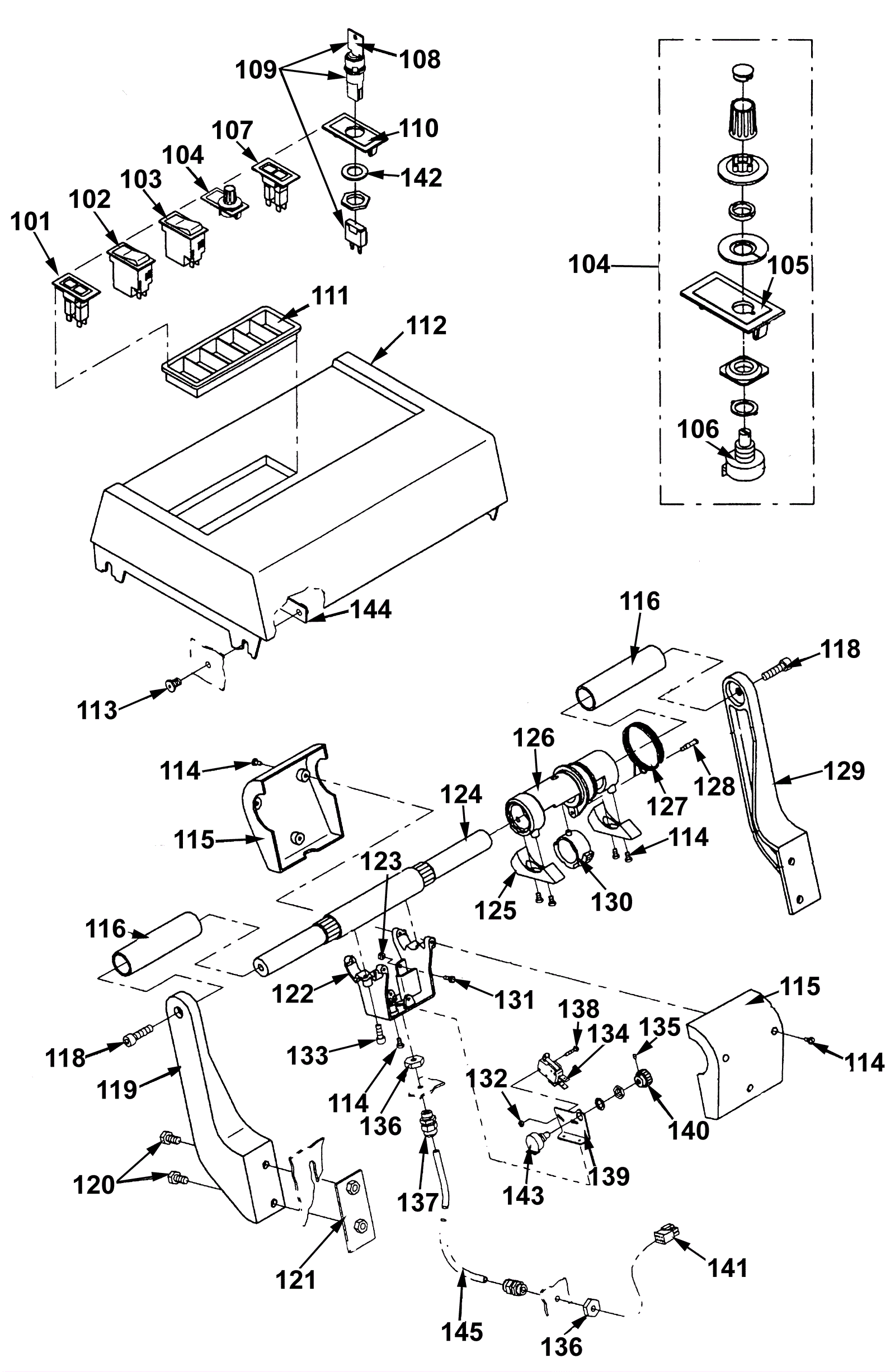

COMBIMAT 1100 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1932 Battery indicator (OBSOLETE) $90.94 1 usually ships 1-5 days
102 192-4944 Main cord 2P schuko $30.21 1 usually ships 1-5 days
103 192-6102 Rocking switch vacuum (OBSOLETE) $72.28 1 usually ships 1-5 days
104 192-5635 Complete potentiometer (OBSOLETE) $85.17 1 usually ships 1-5 days
105 192-2827 Clamping plate (OBSOLETE) $19.07 1 usually ships 1-5 days
106 192-0059 Potentiometer 5K $45.06 1 ships same day
107 192-5487 Pilot lamp water (OBSOLETE) $88.61 1 usually ships 1-5 days
108 192-1064 Side cut key $69.10 1 ships same day
109 192-4665 Key switch $265.35 1 usually ships 19-25 days
110 192-1370 Clamping plate $23.46 1 usually ships 19-25 days
111 192-5139 Mounting frame (OBSOLETE) $15.81 1 usually ships 1-5 days
112 192-4488 Housing (OBSOLETE) $33.47 1 usually ships 1-5 days
113 192-0348 Screw M8 x 12mm truss head $2.56 7 ships same day
114 192-0060 Screw M4 x 8 self tapping forming $2.44 12 usually ships 19-25 days
115 192-0061 Housing $8.43 2 usually ships 19-25 days
116 192-0062 Handle grip (OBSOLETE) $17.53 2 usually ships 19-25 days
119 192-0037 Right hand support $47.64 1 usually ships 1-5 days
120 192-0078 Screw M8 x 16mm socket head $2.56 4 ships same day
121 192-0051 Tapped plate $20.08 2 usually ships 1-5 days
122 192-0038 Handle bar support $55.34 1 usually ships 19-25 days
123 192-0039 Nut M4 hex $4.31 1 usually ships 19-25 days
124 192-0040 Handle bar $78.12 1 usually ships 19-25 days
125 192-0046 Lever $8.89 2 usually ships 19-25 days
126 192-0042 Handle bar bushing $22.68 1 usually ships 19-25 days
127 192-0043 Torsion spring $27.13 1 usually ships 19-25 days
128 192-0056 Gear $11.92 1 usually ships 19-25 days
129 192-0045 Left hand support $47.64 1 usually ships 1-5 days
130 192-0047 Positioning ring $24.74 1 usually ships 19-25 days
131 192-0041 Screw 4mm centering $5.54 1 usually ships 1-5 days
132 192-0048 Nut M3 hex $2.56 2 usually ships 19-25 days
133 192-0035 Screw M5 x 16mm socket head cap $1.11 2 ships same day
134 192-0049 Microswitch (OBSOLETE) $21.76 1 usually ships 19-25 days
135 192-0050 Screw M3 x 5mm hex set $0.89 1 ships same day
136 192-0052 Nut hex $2.44 2 usually ships 19-25 days
137 192-0053 Cable bushing $4.10 2 usually ships 19-25 days
138 192-0054 Screw M3 x 16mm raised cheese head $5.01 2 ships same day
139 192-0055 Angle bracket $92.50 1 usually ships 1-5 days
140 192-0056 Gear $11.92 1 usually ships 19-25 days
141a 192-0057 6 pole female plug $2.56 1 usually ships 19-25 days
141b 192-5602 Plug pin (OBSOLETE) $2.20 5 usually ships 1-5 days
142 192-1373 Gasket (OBSOLETE) $2.20 1 usually ships 1-5 days
143 192-0059 Potentiometer 5K $45.06 1 ships same day
144 192-5554 Plate (OBSOLETE) $11.22 2 usually ships 1-5 days
145 192-0064 Cable assembly (OBSOLETE) $8.69 1 usually ships 19-25 days
N/S N/A Not available Call for price (Lamp) usually ships 3-26 days
N/S N/A Not available Call for price 1 (center cut key) usually ships 3-26 days
