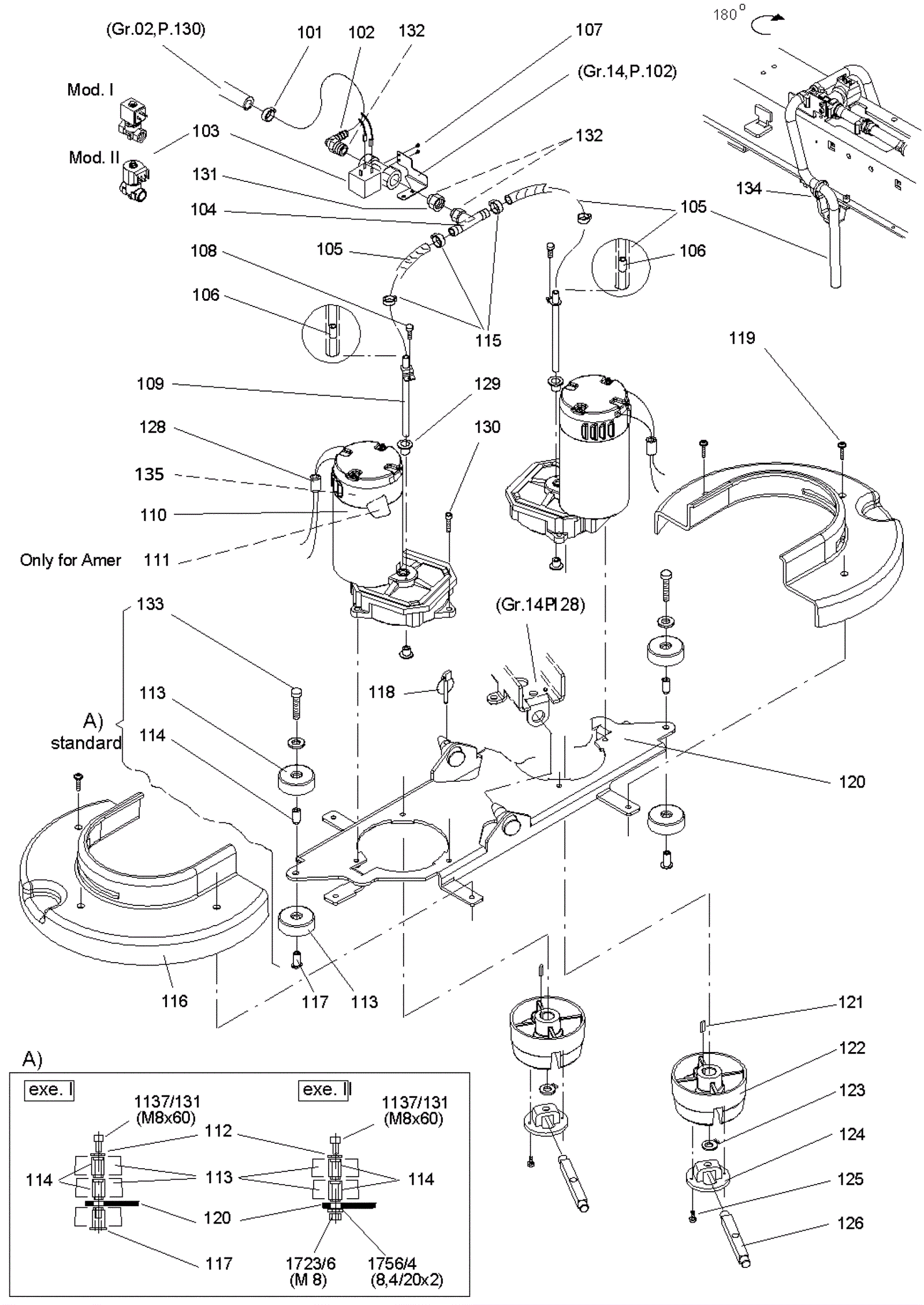

COMBIMATSWINGO3500 Brush Drive Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0334 Hose clamp $3.26 1 usually ships 12-29 days
102 192-9211 Angled hose nipple $7.40 1 usually ships 30-75 days
103 192-0396 24V magnetic valve $183.15 1 ships same day
104 192-1138 T-pipe $6.06 1 usually ships 30-75 days
105 192-0404 Wire reinforced hose (sold by the inch) $0.99 37 in ships same day
106 192-0405 Connector $2.93 2 usually ships 30-75 days
107 192-6485 Screw M5 x 8mm socket head cap $2.44 2 usually ships 30-75 days
108 192-1140 Screw M4 x 8mm self tapping form $2.44 2 ships same day
109 192-1141 Outlet tube $42.00 2 usually ships 30-75 days
110 192-1142 Brush motor $750.06 1 ships same day
111 192-1143 Carbon brush (pkg of 4) $121.08 1 usually ships 30-75 days
113 192-0329 Bumper wheel $3.49 4 ships same day
114 192-1145 Bushing $13.51 2 usually ships 30-75 days
115 192-9210 Hose clamp $2.44 4 ships same day
116a 192-1146 Brush housing $212.21 2 (2500) usually ships 30-75 days
116b 192-1155 Brush housing $294.09 2 (3500) usually ships 1-5 days
117 192-1147 Flanged bushing $9.23 2 usually ships 30-75 days
118 192-1148 Pin with ring $2.76 1 usually ships 30-75 days
119 192-1524 Screw M8 x 20mm flange socket head $2.44 6 ships same day
120a 192-1149 Base plate $259.17 1 (2500) usually ships 30-75 days
120b 192-1154 Base plate $232.11 1 (3500) usually ships 1-5 days
121 192-1150 Square keyway $2.44 2 usually ships 30-75 days
122 192-1151 Coupling wheel $104.15 2 ships same day
123 192-1152 Retaining ring $4.96 2 usually ships 30-75 days
124 192-0505 Coupling yoke $17.53 2 ships same day
125 192-0157 Screw M6 x 16mm countersunk head cap $6.18 4 ships same day
126 192-0504 Shaft $76.80 2 usually ships 30-75 days
128 192-1153 Toroidal choke $9.41 2 usually ships 30-75 days
129 192-0784 Slide bearing $2.44 4 usually ships 30-75 days
130 192-1144 Screw M8 x 55mm socket head $6.18 6 usually ships 30-75 days
131 192-5974 Reducing nipple 1/2 x 3/8 inch $14.26 1 ships same day
132 192-0218 12mm teflon tape $14.77 1 usually ships 1-5 days
133 192-1144 Screw M8 x 55mm socket head $6.18 2 usually ships 30-75 days
134 192-0102 7 3/4 inch cable tie $2.44 1 usually ships 30-75 days
135 192-0520 Collar with clamp $52.14 1 ships same day
