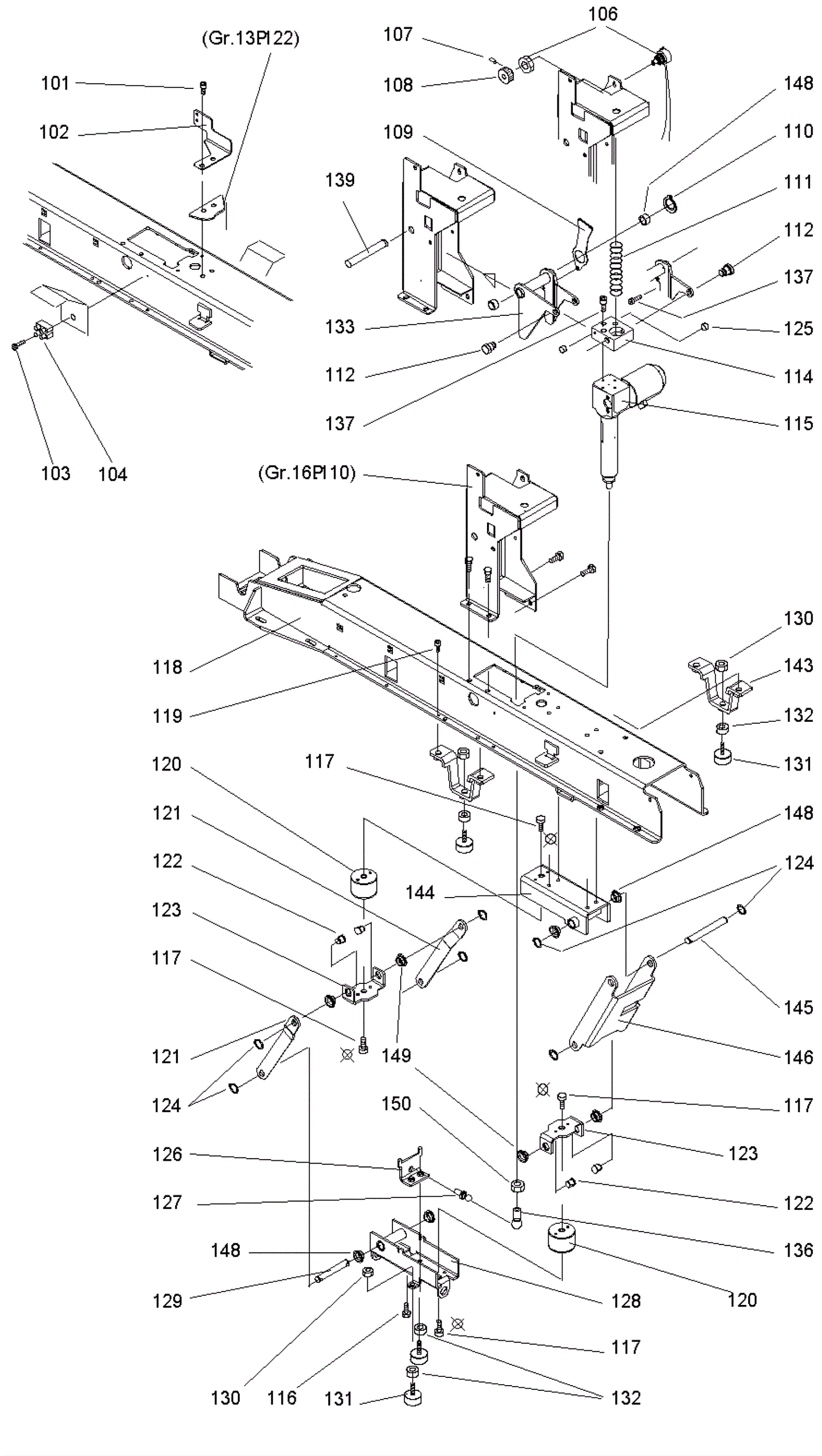

COMBIMATSWINGO3500 Brush Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0822 Screw M8 x 25 hex head $3.30 2 usually ships 30-75 days
102 192-2191 Bracket $28.82 1 usually ships 30-75 days
103 192-1105 Screw M4 x 20mm socket head $2.44 2 usually ships 1-5 days
104 192-0731 2 way connection block $7.33 2 usually ships 30-75 days
106 192-1107 5k potentiometer $179.07 1 ships same day
107 192-0050 Screw M3 x 5mm hex set $0.89 1 ships same day
108 192-0056 Gear $11.35 1 usually ships 30-75 days
109 192-1101 Lever $12.83 1 usually ships 1-5 days
110 192-0075 Retaining ring $5.81 1 ships same day
111 192-5689 Pressure spring $11.11 1 usually ships 30-75 days
112 192-2106 Bolt with collar M8 $10.75 2 usually ships 30-75 days
114 192-2062 Block $45.00 1 usually ships 30-75 days
115 192-4792 Actuator $559.68 1 ships same day
116 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 6 ships same day
117 192-1115 Screw M12 x 14 hex head $2.44 4 usually ships 30-75 days
118 192-1116 Chassis $531.94 1 usually ships 1-5 days
119 192-0078 Screw M8 x 16mm socket head $2.44 4 ships same day
120 192-2325 Buffer $56.85 2 usually ships 30-75 days
121 192-1118 Strut $15.14 2 usually ships 30-75 days
122 192-1119 Bolt $10.13 4 usually ships 30-75 days
123 192-1120 Bracket $14.48 2 ships same day
124 192-0075 Retaining ring $5.81 8 ships same day
125 192-5531 Pivot $4.71 1 usually ships 30-75 days
126 192-1122 Bracket $17.71 1 usually ships 30-75 days
127 192-1881 Ball pivot $21.32 2 usually ships 30-75 days
128 192-1123 Bracket $112.09 1 usually ships 30-75 days
129 192-1124 Axle $15.75 1 usually ships 30-75 days
130 192-0347 Nut M8 hex $0.89 4 ships same day
131 192-1125 Stop buffer $4.84 4 ships same day
132 192-1306 Bushing $7.03 4 usually ships 1-5 days
133 192-4617 Jack $57.75 1 usually ships 1-5 days
136 192-0695 Ball pivot 10mm $6.90 2 ships same day
137 192-0077 Screw M5 x 12mm socket head $0.89 5 ships same day
139 192-1796 Axle $15.39 1 usually ships 30-75 days
143 192-1131 Bracket $53.26 2 usually ships 30-75 days
144 192-1132 Bracket $93.97 1 ships same day
145 192-1133 Axle $14.77 1 usually ships 30-75 days
146 192-1134 Rocker $49.52 1 usually ships 30-75 days
148 192-0074 Slide bearing $2.44 6 usually ships 30-75 days
149 192-1035 Slide bearing $2.44 4 ships same day
150 192-8682 Nut M10 hex $2.44 1 usually ships 30-75 days
N/S 192-0699 Safety clip $0.89 1 ships same day
N/S 192-1136 Strong locking adhesive $252.45 1 usually ships 1-5 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
