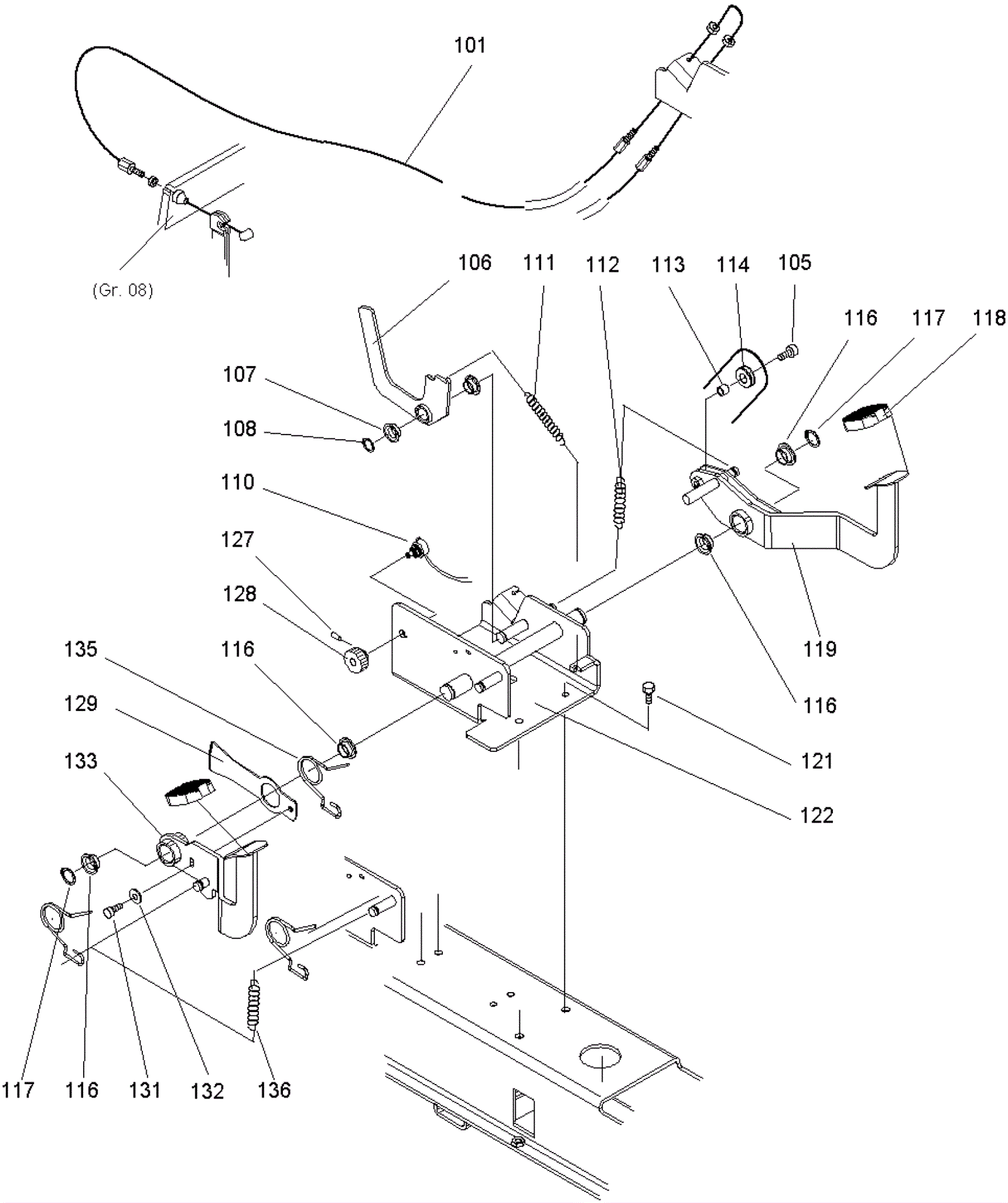

COMBIMATSWINGO3500 Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1087 Left/right brake cable $64.59 1 ships same day
105 192-0278 Screw M8 x 25mm socket head $0.89 1 ships same day
106 192-1088 Stop lever $23.52 1 usually ships 30-75 days
107 192-1089 Slide bearing $2.44 2 usually ships 1-5 days
108 192-1090 Retaining ring $2.44 1 usually ships 1-5 days
110 192-1107 5k potentiometer $179.07 1 ships same day
111 192-1092 Tension spring $4.76 1 usually ships 30-75 days
112 192-1093 Tension spring $2.44 1 usually ships 1-5 days
113 192-2405 Bushing $15.70 1 usually ships 1-5 days
114 192-1095 Rope pulley $10.25 1 usually ships 1-5 days
116 192-1044 Slide bearing $3.37 4 ships same day
117 192-0807 Retaining ring $2.44 2 ships same day
118 192-1096 Pedal pad $25.76 2 usually ships 30-75 days
119 192-1097 Brake pedal $70.33 1 usually ships 1-5 days
121 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
122 192-1098 Support (OBSOLETE) $103.18 1 usually ships 1-5 days
127 192-0050 Screw M3 x 5mm hex set $0.89 1 ships same day
128 192-0056 Gear $11.35 1 usually ships 30-75 days
129 192-1101 Lever $12.83 1 usually ships 1-5 days
131 192-0723 Screw M5 x 6mm $2.44 1 usually ships 30-75 days
132 192-0091 Washer $0.89 1 ships same day
133 192-1102 Accelerator pedal $52.94 1 usually ships 1-5 days
135 192-6597 Spring $22.30 1 usually ships 1-5 days
136 192-1103 Tension spring $3.91 1 usually ships 30-75 days
