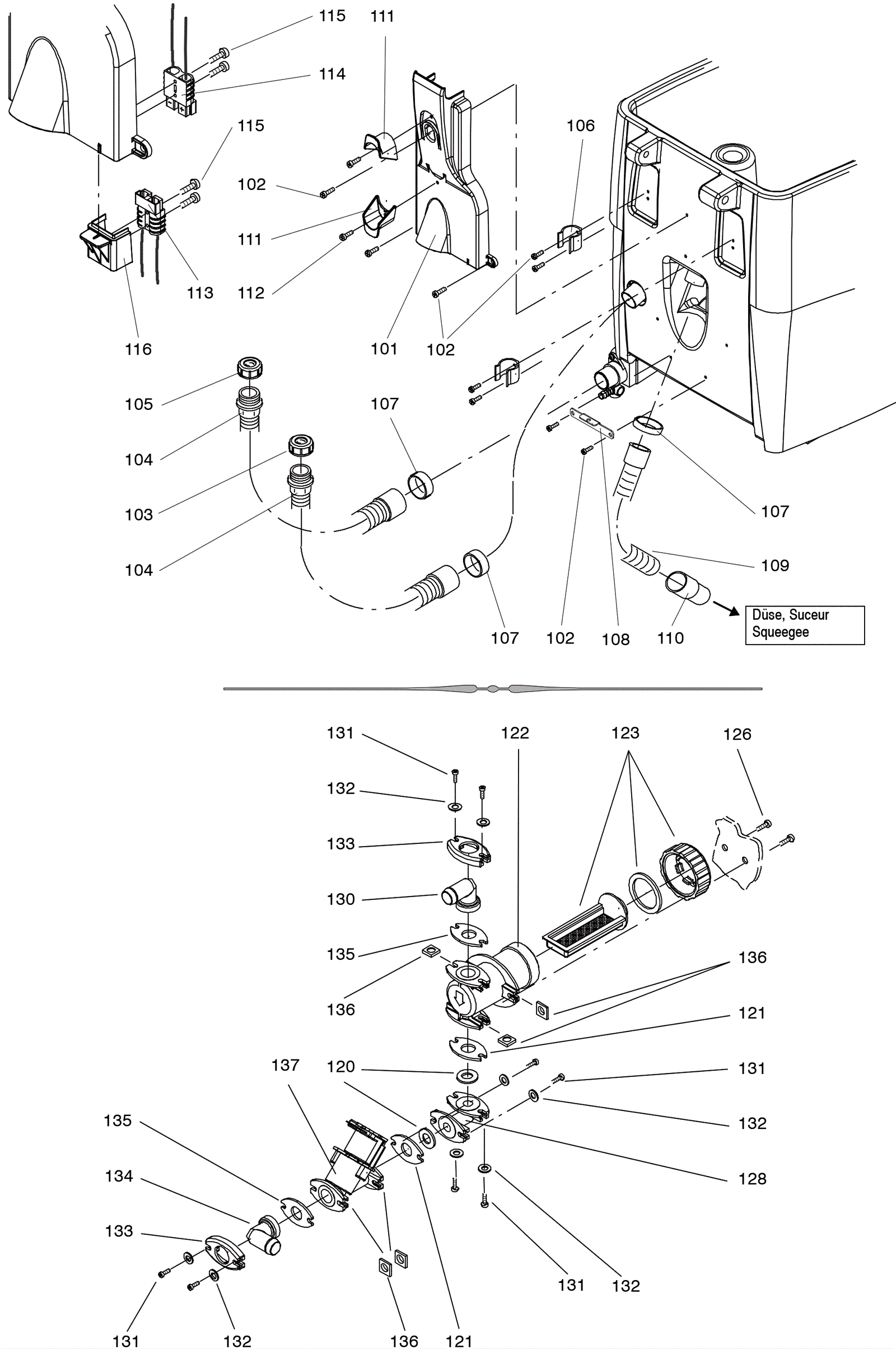

SWINGO 750B Hoses, Valve and Filter Assembly

#PartDescriptionPriceReqNotesAvailability
101a 192-5954 Rear panel $24.06 1 (eco series 3) (power series 2) usually ships 30-75 days
101b 192-5953 Rear panel $51.80 1 (series 1) usually ships 30-75 days
102 192-1561 Screw 60 x 20 torx head $2.44 9 ships same day
103 192-0237 Threaded cap (red) $2.44 1 ships same day
104 192-0979 Hose $27.18 2 ships same day
105 192-0236 Threaded cap (blue) $2.44 1 ships same day
106 192-0099 Hose holder $1.79 2 ships same day
107 192-0130 Hose clamp $2.44 3 ships same day
108a 192-1695 Bracket $11.43 1 (eco series 3) (power series 2) usually ships 30-75 days
108b 192-2487 Bracket $13.77 1 (series 1) usually ships 30-75 days
109 192-0133 Hose $18.93 1 ships same day
110 192-0113 Hose cuff $2.88 1 ships same day
111 192-2550 Holder $2.88 2 (BMS) ships same day
112 192-1571 Screw M50 x 16mm $2.44 2 ships same day
113 192-0389 50amp charger plug SB50 with hole (gray) $16.68 1 ships same day
114 192-0388 50amp charger plug SB50 with post (gray) $8.86 1 ships same day
115 192-0549 Screw KA 35 x 20 $2.44 4 ships same day
116 192-5595 Charger plug housing $2.93 1 ships same day
120 192-1271 Gasket $1.22 2 ships same day
121 192-1270 Intermediate plate $2.44 2 usually ships 30-75 days
122 192-0910 Filter housing $6.67 1 ships same day
123 292-0082 Filter kit $11.11 1 ships same day
126 192-5924 Screw M4 x 30mm raised cheese head $2.44 2 ships same day
128 192-1684 Angled flange $6.23 1 usually ships 30-75 days
130 192-1691 Angled nipple $2.08 1 ships same day
131 192-0912 Screw M4 x 16mm raised head $2.44 8 ships same day
132 192-0149 Washer $2.44 8 ships same day
133 192-0911 Flange $2.56 2 ships same day
134 192-0916 Angled nipple $9.41 1 usually ships 30-75 days
135 192-0914 Gasket $2.44 2 ships same day
136 192-0915 Nut M4 square $3.30 10 ships same day
137 192-0917 24V magnetic valve (OBSOLETE) $57.09 1 usually ships 30-75 days
